Components [11/2014 - ]: Illustration

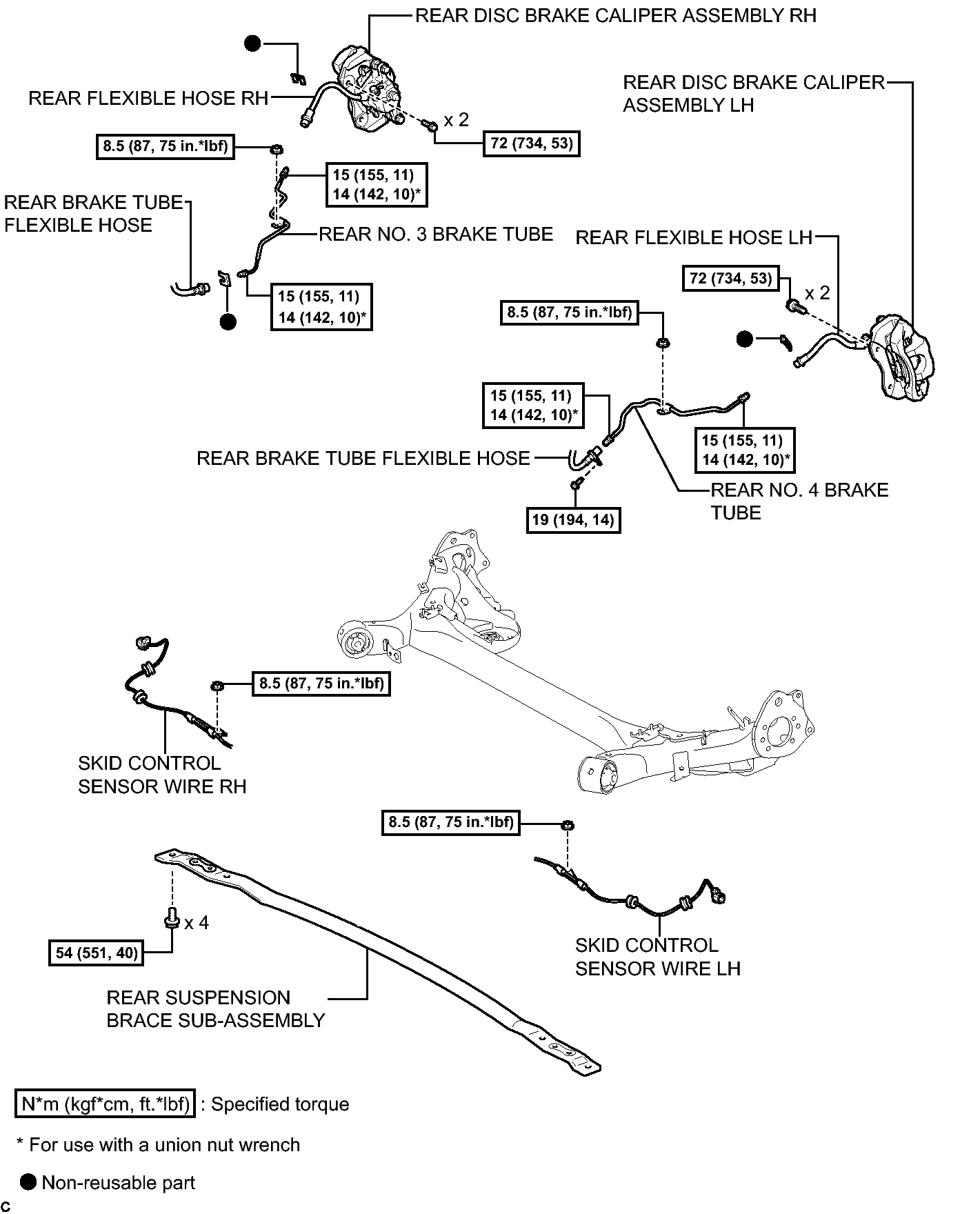

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (1 Of 4)
GTY472488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

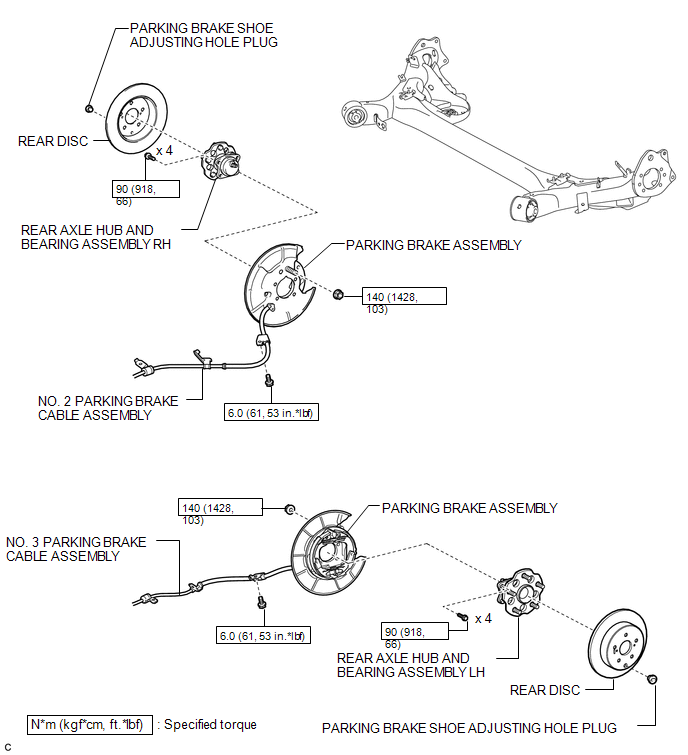

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (2 Of 4)
GTY327518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

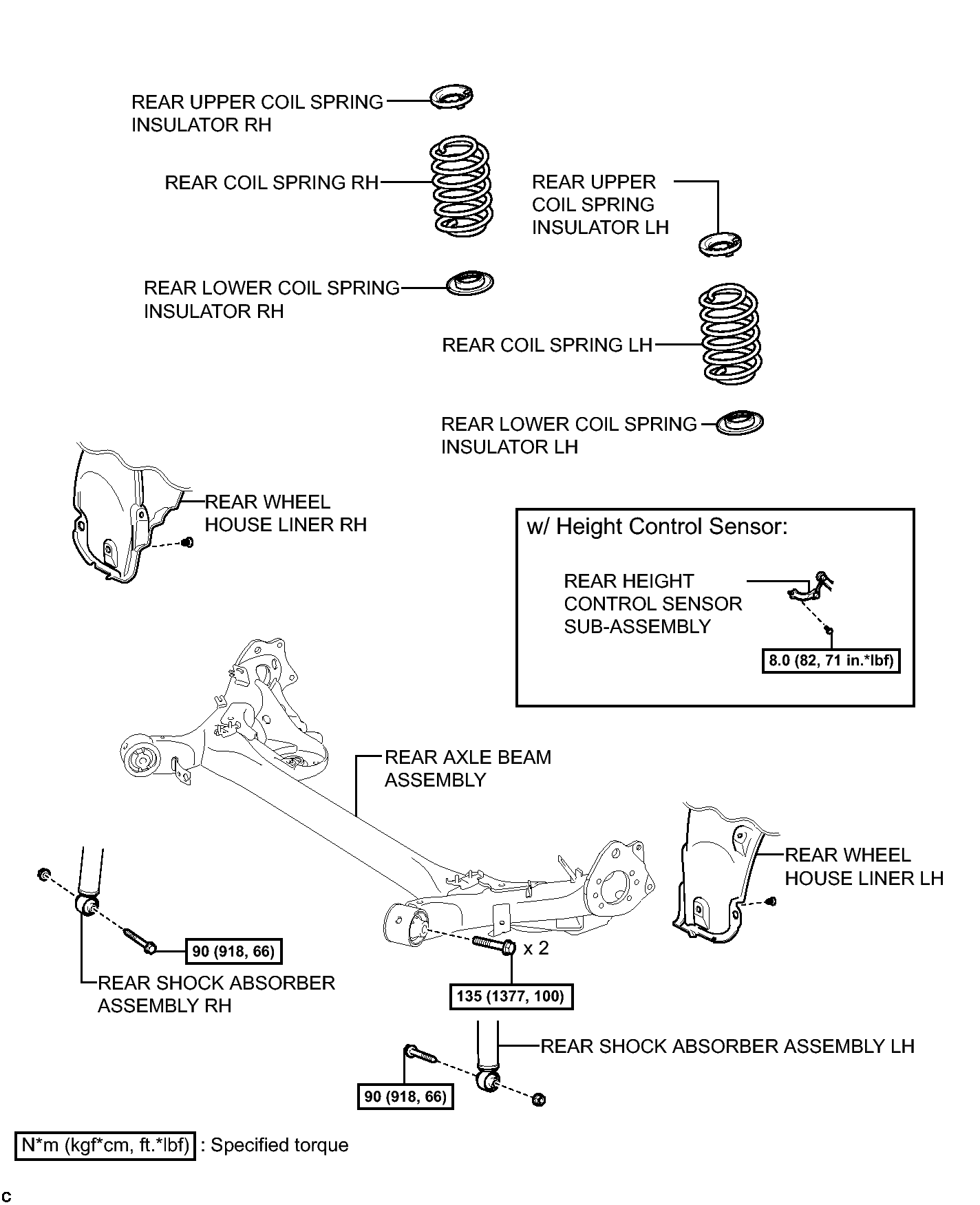

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (3 Of 4)
GTY331215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

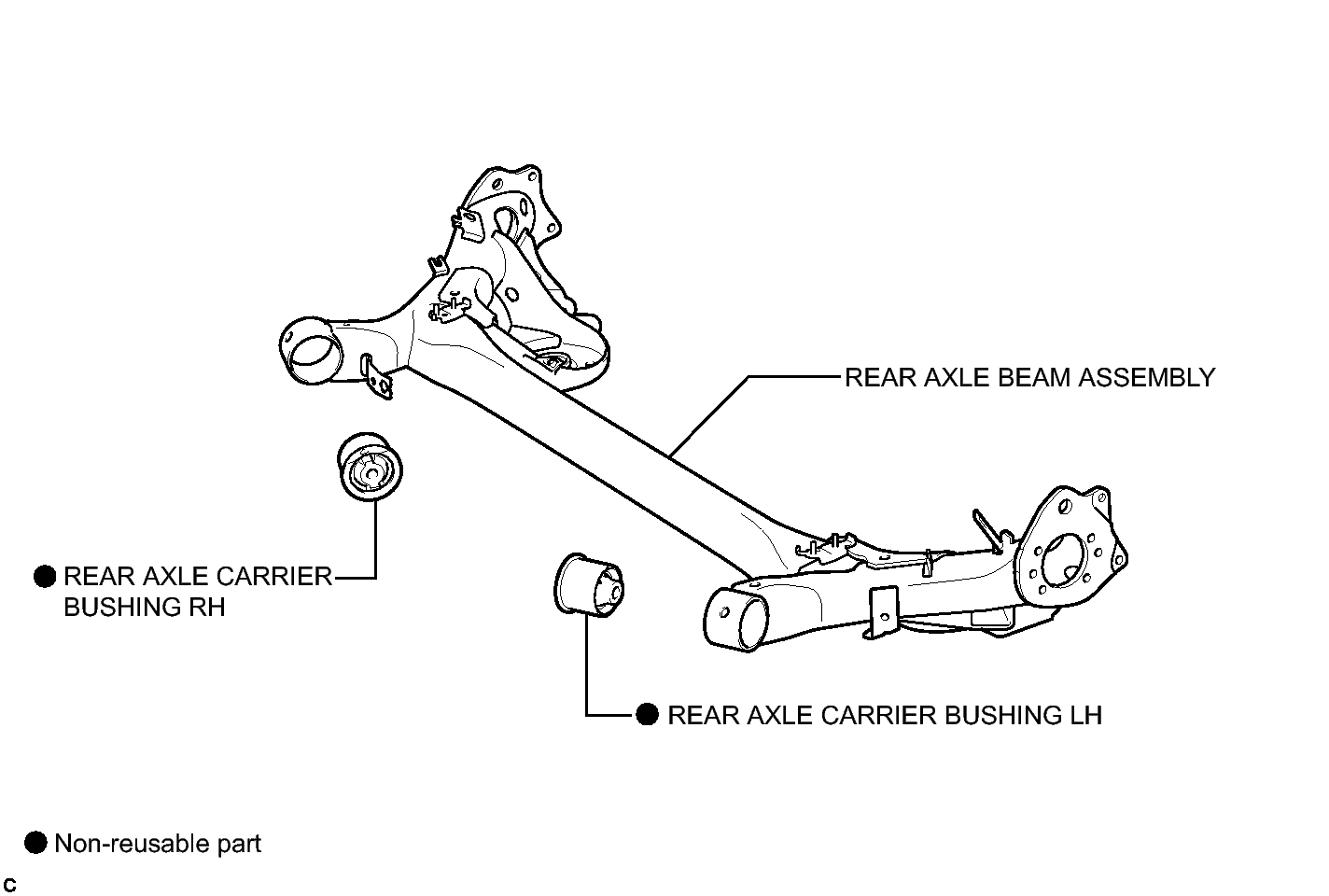

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (4 Of 4)
GTY333831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
