DTC B1656/38: Seat Belt Buckle Switch LH Circuit Malfunction [11/2014 - ]: Wiring Diagram

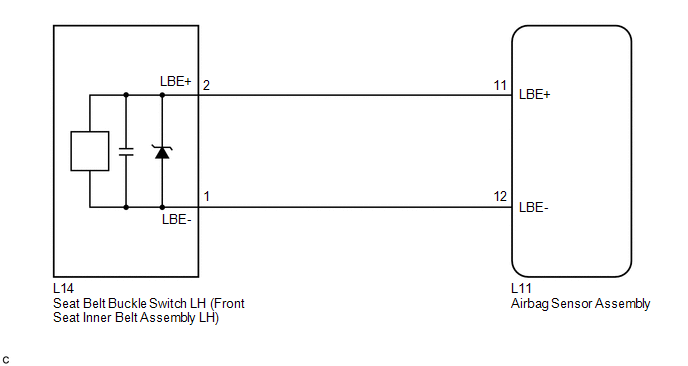

Fig 1: Seat Belt Buckle Switch LH Wiring Diagram

GTY441620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
