Parts Location [08/2014 - ]: Illustration

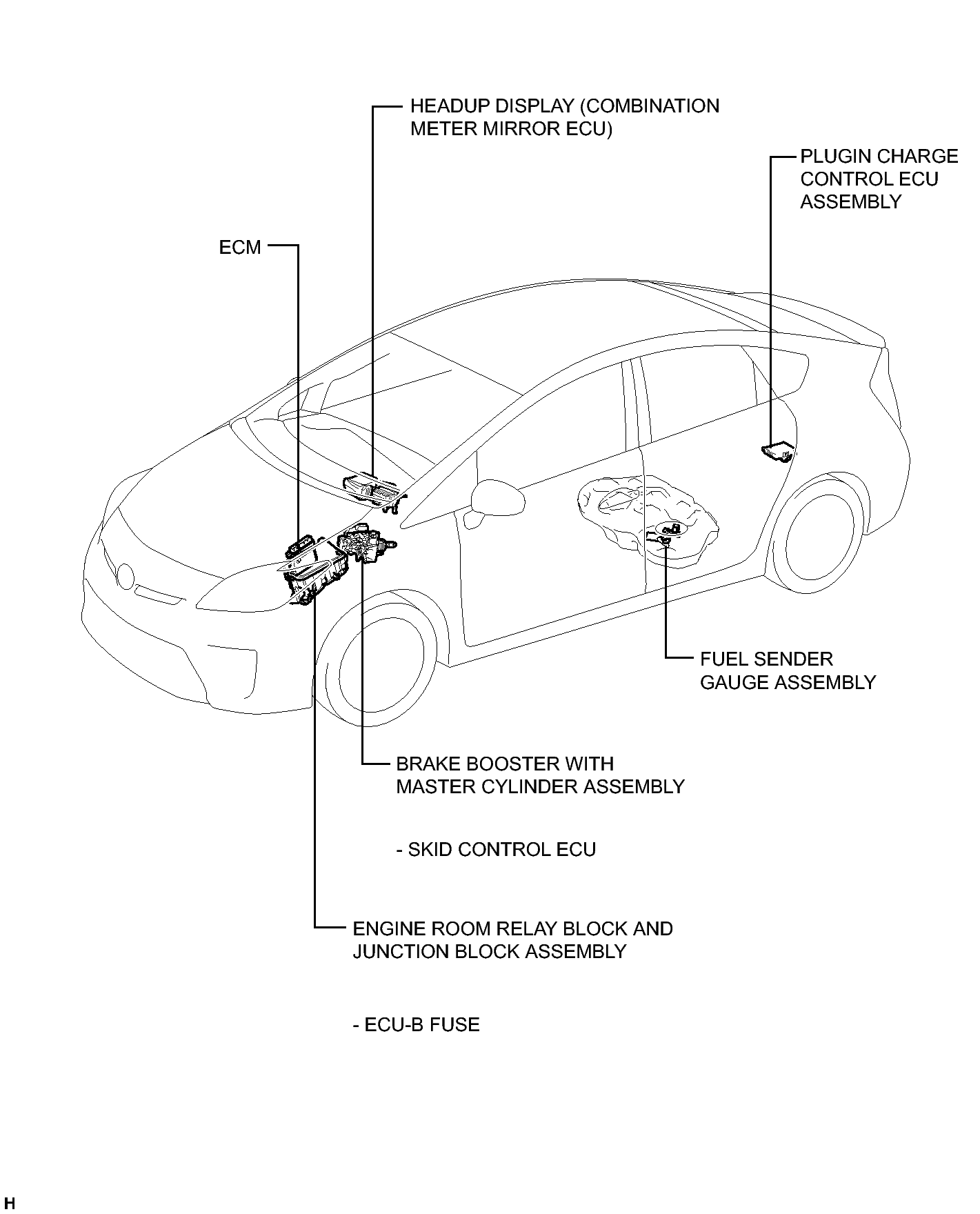

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 4)
GTY328522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

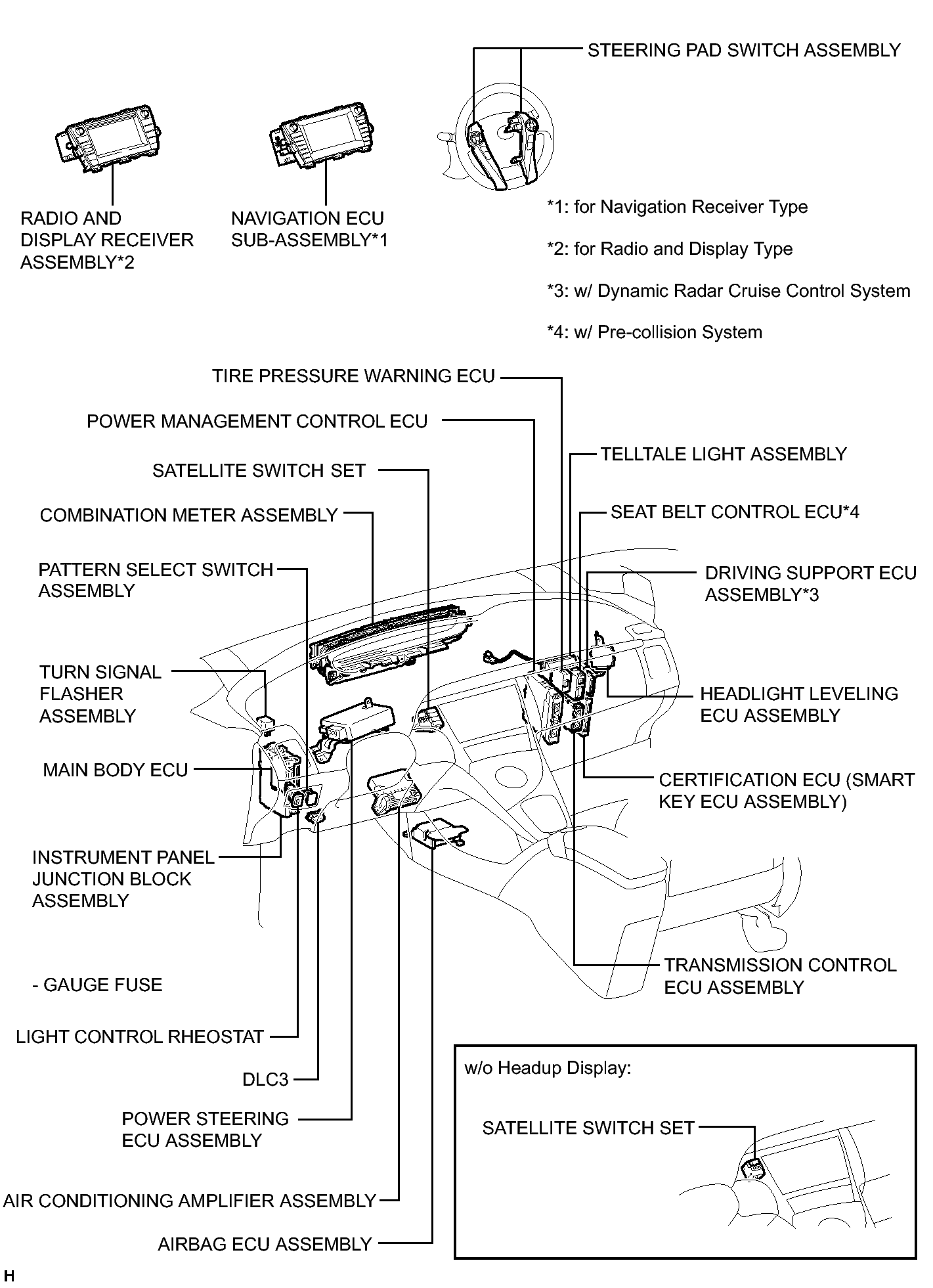

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 4)
GTY343846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Meter / Gauge System Parts (3 Of 4)
GTY223998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

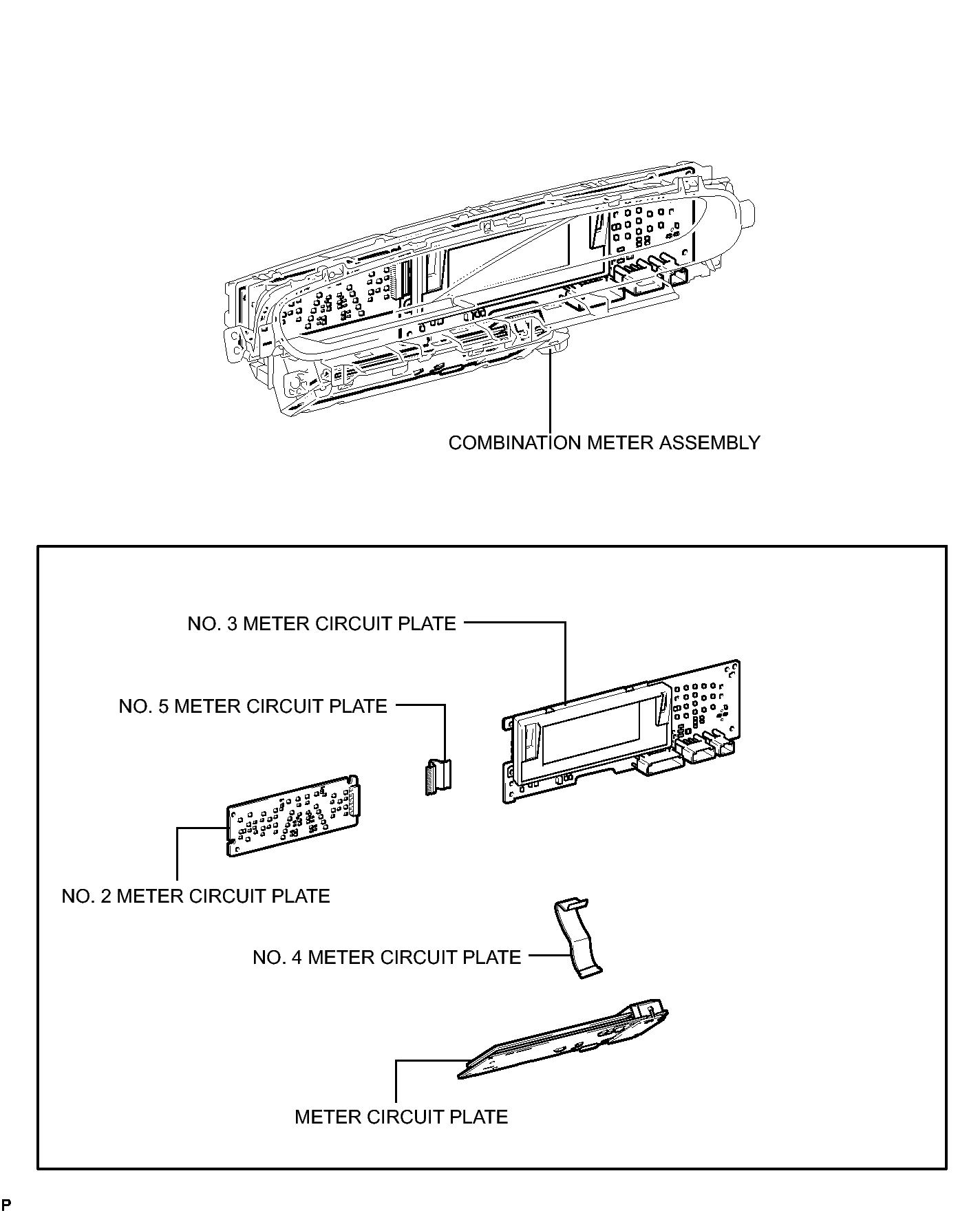

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 4)
GTY337713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
