Air Conditioning System
>>
Parts Location [08/2014 - ]
>>
Illustration
Parts Location [08/2014 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.

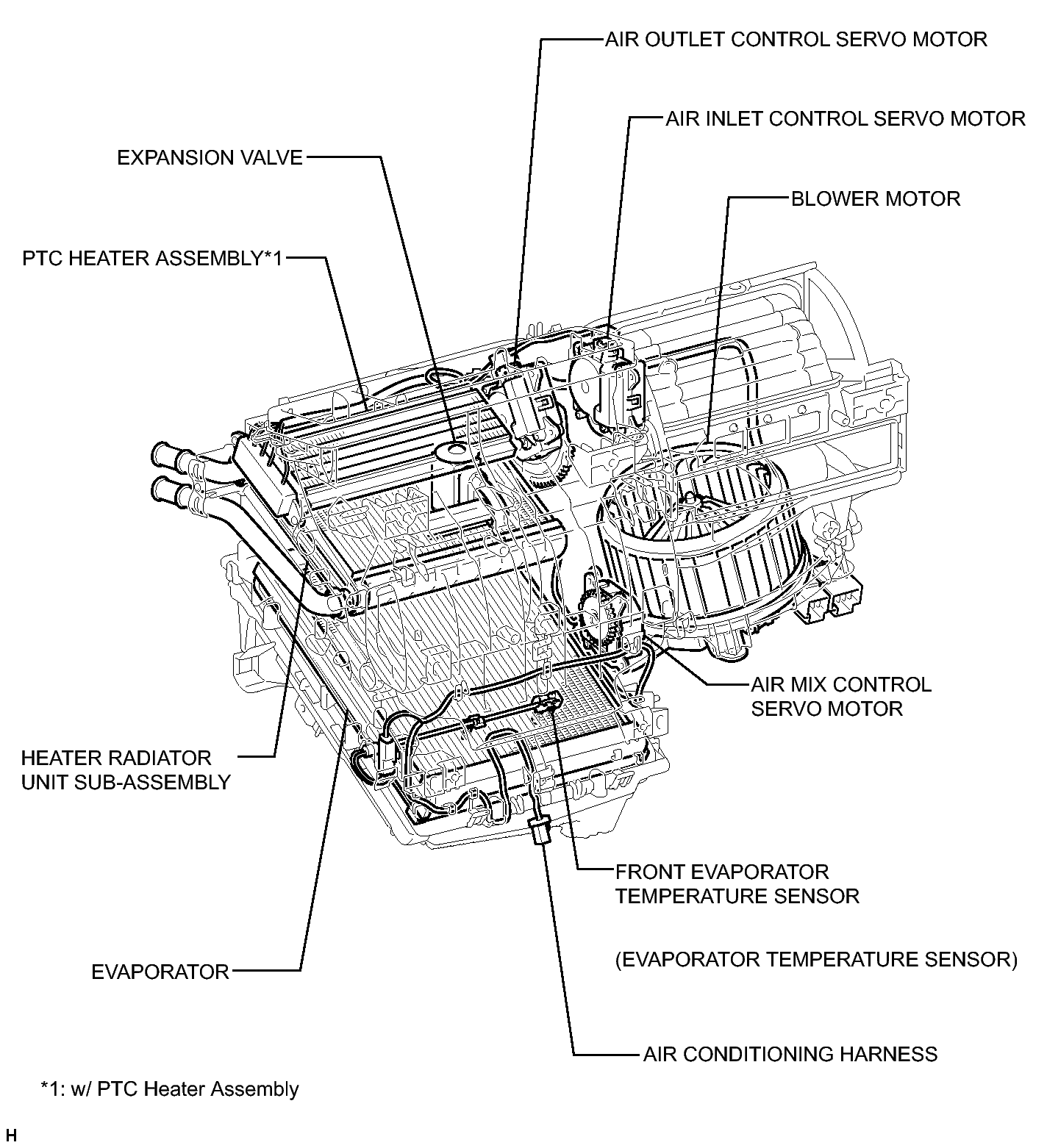

Fig 1: Identifying Air Conditioning System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

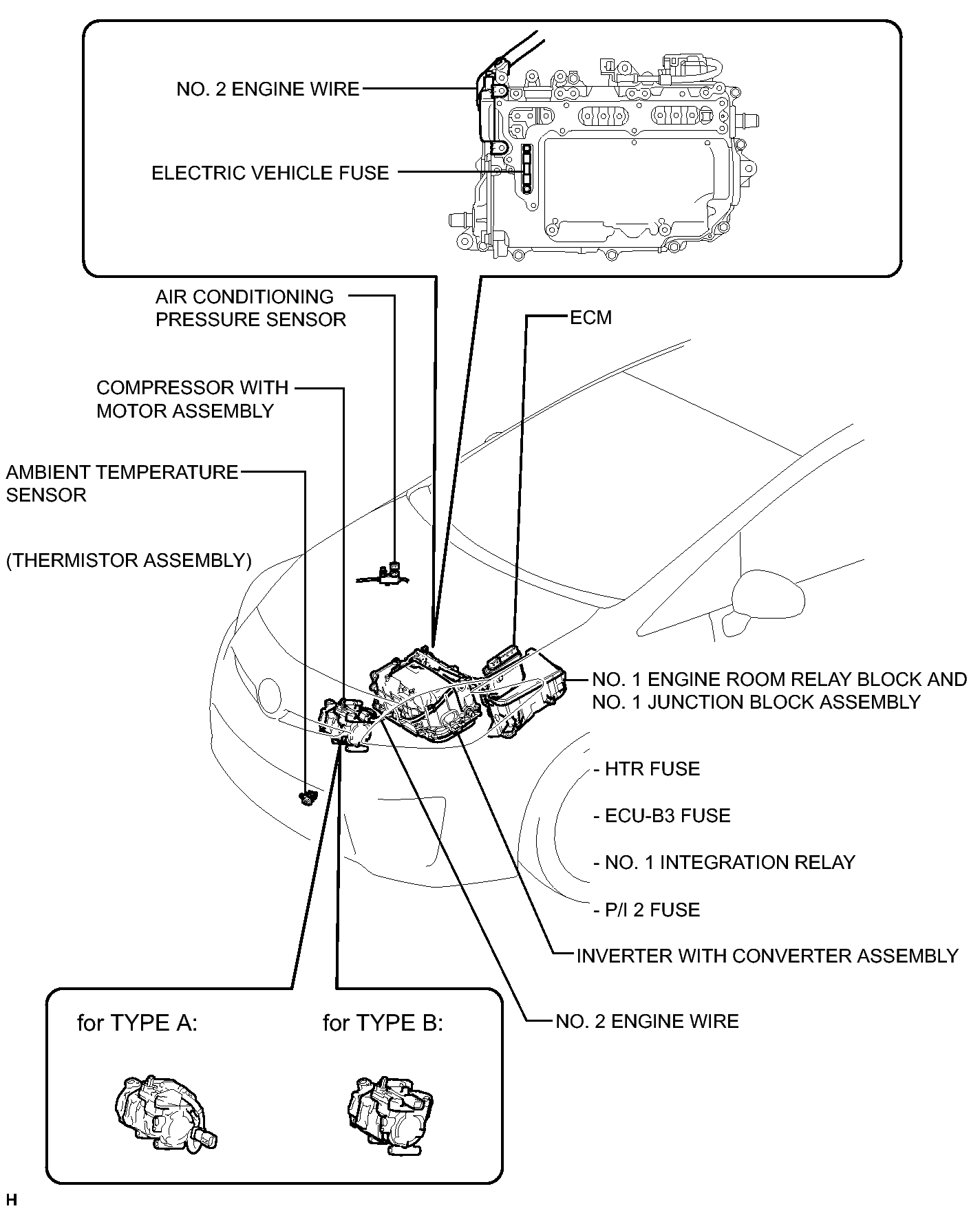

Fig 1: Identifying Air Conditioning System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

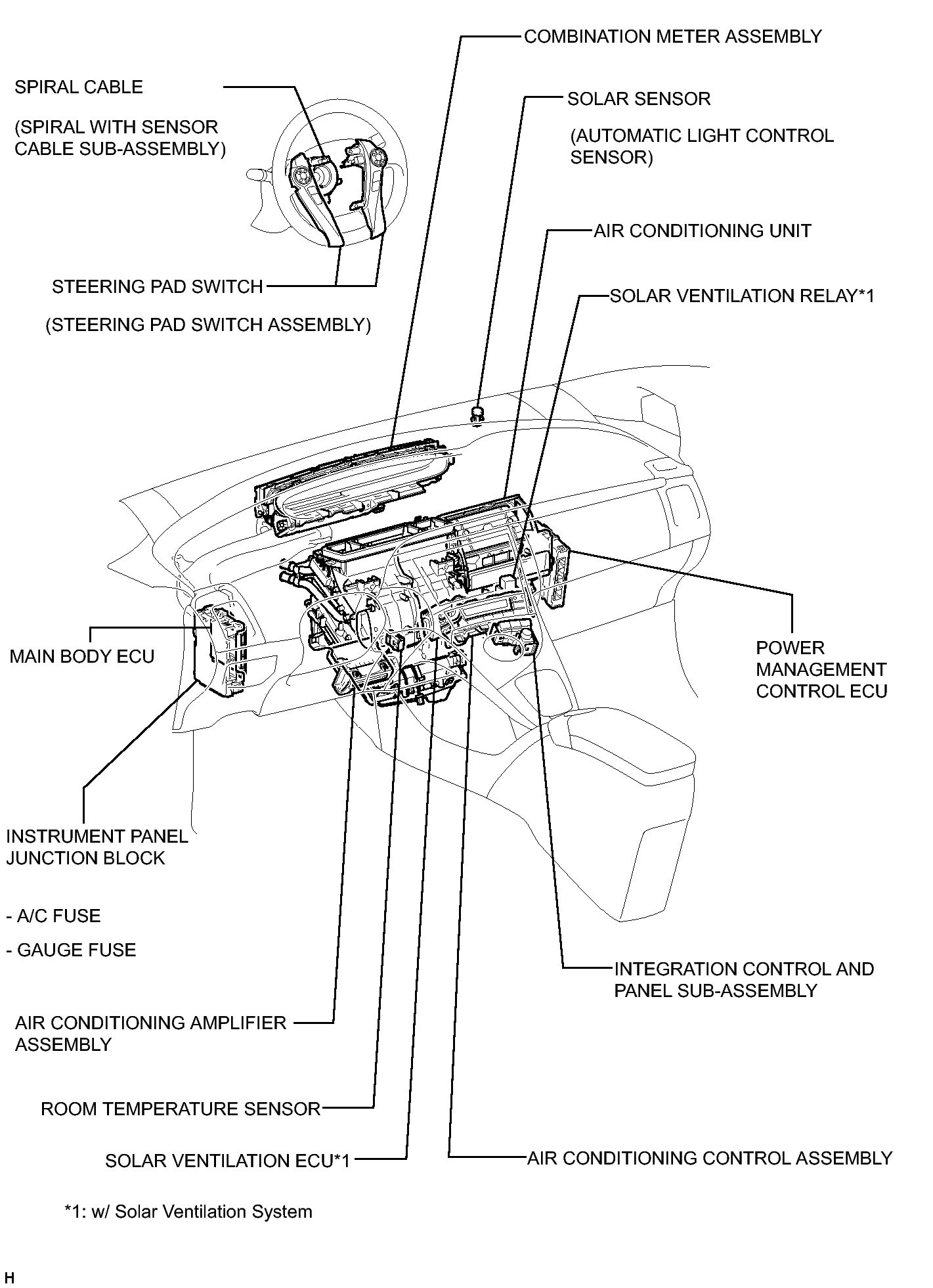

Fig 1: Identifying Air Conditioning System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
