System Description [08/2014 - ]

  1. OUTLINE OF COMBINATION METER ASSEMBLY

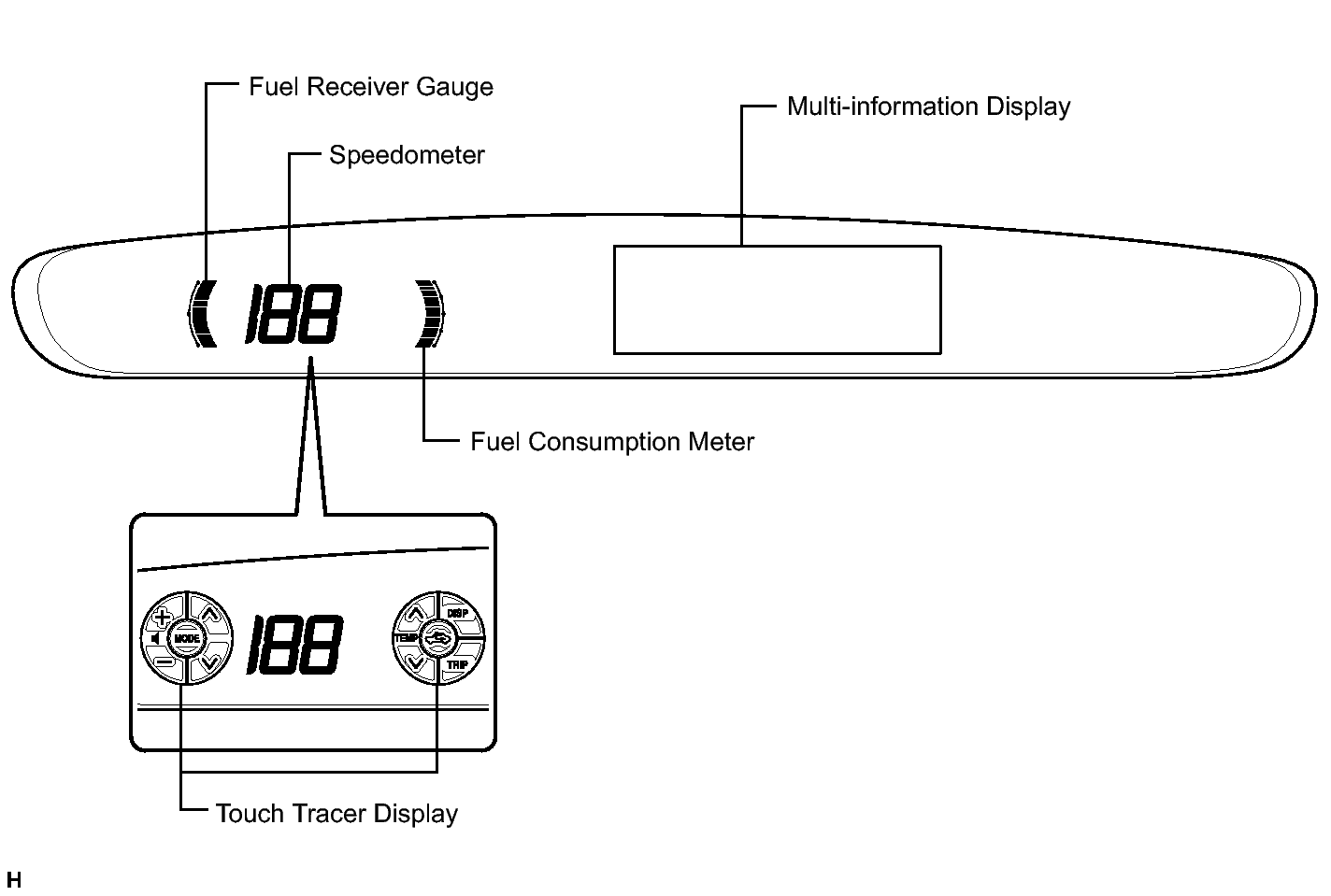

    Fig 1: Identifying Meter / Gauge Display
    GTY331523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY (NO. 3 METER CIRCUIT PLATE)
    1. Meter or Gauge
      Meter or Gauge Communication Signal Sender Communication Line Receiver
      Speedometer Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Fuel receiver gauge Fuel level Fuel Sender Gauge Assembly Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ODO/TRIP meter ODO/TRIP change Multi-information Switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Unit change Trip switch Direct Line
      ODO Skid Control ECU CAN (CAN No. 1 Bus)
      Meter illumination Illumination level Light Control Rheostat Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Auto dimmer Main Body ECU CAN (CAN No. 1 Bus)
      Tail cancel Combination Meter Assembly (No. 3 Meter Circuit Plate) CAN (CAN No. 1 Bus) Main Body ECU
      Lounge illumination off
      Illumination level Combination Meter Assembly (No. 3 Meter Circuit Plate) CAN (CAN No. 1 Bus) Certification ECU (Smart Key ECU Assembly)
      Headup display (Combination meter mirror ECU)*1 Headup display (Combination meter mirror ECU) information Combination Meter Assembly (No. 3 Meter Circuit Plate) Direct Line Headup Display (Combination Meter Mirror ECU)
      Trip switch Trip switch Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      • *1: w/ Headup Display
    2. Warning or Indicator
      Warning or Indicator Communication Signal Sender Communication Line Receiver
      Engine coolant temperature hot warning light Engine coolant temperature hot warning light ECM CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Engine coolant hot warning light Water Temperature Sensor Direct Line
      Turn indicator light Turn indicator light Turn Signal Flasher Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Fuel level warning light*9 Fuel level Fuel Sender Gauge Assembly Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Brake warning light / red (malfunction) Brake warning light Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Parking brake switch Main Body ECU CAN (CAN No. 1 Bus)
      Brake warning light / yellow (minor malfunction) Electrically controlled brake warning Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      SRS warning light SRS warning light Center Airbag Sensor Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Open door warning light Each door courtesy switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Charge warning light Charge warning light Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      MIL (Check engine warning light) MIL (Check engine warning light) ECM Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Driver side seat belt warning light Driver side seat belt buckle switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ABS warning light ABS warning light Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EPS warning light EPS warning light Power Steering ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      SET indicator light SET indicator light Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      LKA indicator light*1 LKA indicator light Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Headlight leveling indicator light*2 Headlight leveling indicator light Headlight Leveling ECU Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Head indicator light*3 Head indicator light Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Tail indicator light*4 Taillight Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Slip indicator light Slip indicator Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Cruise main indicator light Cruise main indicator Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Cruise main indicator light Cruise main indicator (Constant speed control mode) Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Cruise main indicator (Vehicle-to-vehicle distance control mode)*5
      Shift position indicator Shift position Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Power mode indicator light Power mode indicator light Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      PCS warning light*6 PCS warning Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Tire pressure warning light*7 Tire pressure warning Tire Pressure Warning ECU Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Tire pressure warning light*8 Tire pressure warning Tire Pressure Warning ECU and Receiver Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Front fog indicator light Front fog indicator Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Security indicator light Security indicator light Certification ECU (Smart Key ECU Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ECO mode indicator light ECO mode indicator Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV indicator light EV indicator Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Ready indicator light Ready indicator Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Master warning light Each system warning Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Power Steering ECU
      Certification ECU (Smart Key ECU Assembly)
      Center Airbag Sensor Assembly
      Power Management Control ECU
      Main Body ECU
      Driving Support ECU Assembly CAN (CAN No. 2 Bus)
      Headlight Leveling ECU
      Tire Pressure Warning ECU*7 CAN (CAN MS Bus)
      Tire Pressure Warning ECU and Receiver*8
      • *1: w/ Lane-keeping Assist System
      • *2: w/ Automatic Type Headlight Beam Level Control
      • *3: for U.S.A.
      • *4: except U.S.A.
      • *5: w/ Dynamic Radar Cruise Control System
      • *6: w/ Pre-collision System
      • *7: w/ Tire Pressure Warning System with Vehicle Proximity Notification System
      • *8: w/ Tire Pressure Warning System without Vehicle Proximity Notification System
      • *9: w/ Fuel Level Warning Light
    3. Cruise Information Display
      Cruise Information Display Communication Signal Sender Communication Line Receiver
      Average fuel consumption (1 minute/5 minutes) Fuel injection ECM CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus)
      ODO
      Multi-information switch Multi-information Switch (Steering Pad Switch Assembly) Direct Line
      Average vehicle speed Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ODO
      Multi-information switch Multi-information Switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Hybrid System Indicator Eco-zone indicator level Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ECO driving Indicator Light Ecology Lamp Indicator signal Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Power mode indicator status
      EV indicator
      Shift position
      Motor inverter high temperature warning
      Hybrid system warning
      Vehicle speed signal Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Driving range Engine speed ECM CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Fuel injection
      Engine variation
      Vehicle speed Skid Control ECU Direct Line
      Vehicle speed CAN (CAN No. 1 Bus)
      Destination Main Body ECU CAN (CAN No. 1 Bus)
      Fuel level Fuel Sender Gauge Assembly Direct Line
      Multi-information display change Multi-information switch Multi-information Switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Energy flow display Energy flow Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Fuel consumption history per a month Reset Multi-information Switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      ECO wallet history Reset Multi-information Switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Air conditioning system setting display Set temperature Air Conditioning Amplifier CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      REC/FRS select
    4. Multi-information Display Message
      Multi-information Display Message Communication Signal Sender Communication Line Receiver
      Multi-information display change Multi-information switch Multi-information switch (Steering Pad Switch Assembly) Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Brake! message Brake! message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Maintenance mode message Maintenance mode message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Certification mode message Certification mode message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Adjusting LKA camera message*1 Adjusting LKA camera message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check LKA system message*1 Check LKA system message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      LKA not available message*1 LKA not available message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Clean radar sensor message*2 Clean radar sensor message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Adjusting front radar beam message*2 Adjusting front radar beam message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Checking cruise control C/D message Checking cruise control C/D message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Checking cruise control brake message Checking cruise control brake message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Cruise not available message Cruise not available message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check PCS system message*3 Check PCS system message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      PCS temporary not available message*3 PCS temporary not available message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Precrash brake off message*3 Precrash brake off message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check cruise control system message Check cruise control system message Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Auto power off to conserve battery message Auto power off to conserve battery message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Turn power off message Turn power off message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Shift to [P] position message Shift to [P] position message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Certification ECU (Smart Key ECU Assembly)
      Shift to [P] position when parked message Shift to [P] position when parked message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Low traction battery HV battery is not charged in neutral N message Low traction battery HV battery is not charged in neutral N message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      [P] lock malfunction when parking. Park in flat place and apply parking brake securely message Transmission control ECU error status Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check hybrid system message Check hybrid system message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check brake lamp system message Check stop light system message Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Low engine oil pressure message Low engine oil pressure message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Oil Pressure Switch Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Shift to [P] position and push power switch turn off message Shift to [P] position and push power switch turn off message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Key detected in vehicle message Key detected in vehicle message Certification ECU (Smart Key ECU Assembly) CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Depress brake pedal, touch power switch with key message Depress brake pedal, touch power switch with key message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Depress brake pedal and push power switch to start message Depress brake pedal and push power switch to start message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Shift to [P] position to start message Shift to [P] position to start message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Key battery low message Key battery low message Certification ECU (Smart Key ECU Assembly) CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Key not detected message Key not detected message Certification ECU (Smart Key ECU Assembly) CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Hybrid system overheat message Hybrid system overheat message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check headlight system message Check headlight system message Headlight Leveling ECU Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Maintenance required soon message*4 ODO Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Maintenance required message*4 ODO Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Resetting maintenance data message*4 ODO Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Maintenance reset unfinished message*4 ODO Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode currently not available message EV mode currently not available message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode not available warming up message EV mode currently not available warming up message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode not available low battery message EV mode currently not available low battery message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode not excessive speed message EV mode currently not available excessive speed message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode not available excessive accel. message EV mode currently not available excessive acceleration message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode deactivated message EV mode deactivated message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode deactivated low battery message EV mode deactivated low battery message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode deactivated excessive speed message EV mode deactivated excessive speed message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode deactivated excessive accel. message EV mode deactivated excessive acceleration message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      N position message N position message Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Traction battery protection mode, restart after shifting to P position Traction battery protection mode, restart after shifting to P position Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Traction battery power low, charge when not in N position Traction battery power low, charge when not in N position Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Check hybrid system stop the vehicle in a safe place Check hybrid system stop the vehicle in a safe place Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode currently not available because heater on EV mode currently not available because heater on Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      EV mode cancelled because heater on EV mode cancelled because heater on Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Switched to N. To shift to P, stop car and press P switch. Shift reject buzzer Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Reject information (SBW)
      Shift malfunction. When parking, park in flat place and apply parking brake securely message P-ACT error information Transmission Control ECU Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Transmission control ECU error status
      Aux. battery low. When parking, park in flat place and apply parking brake securely message Transmission control ECU check demand information Transmission Control ECU Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Shift malfunction. See owner's manual. message Low battery malfunction information Transmission Control ECU Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      • *1: w/ Lane-keeping Assist System
      • *2: w/ Dynamic Radar Cruise Control System
      • *3: w/ Pre-collision System
      • *4: for U.S.A.
    5. Buzzer
      Buzzer Communication Signal Sender Communication Line Receiver
      Key reminder buzzer Driver side door courtesy switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Power switch
      Shift down reject buzzer Shift down reject buzzer Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Seat belt warning buzzer Driver side seat belt buckle switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Front passenger side door courtesy switch
      Driver side door courtesy switch
      Parking brake switch
      Front passenger side seat belt buckle switch Center Airbag Sensor Assembly CAN (CAN No. 1 Bus)
      Shift position R Power Management Control ECU CAN (CAN No. 1 Bus)
      Shift position P
      Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus)
      Driving with any door opened warning buzzer Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Each door courtesy switch Main Body ECU
      Smart key warning buzzer Power switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Engine immobiliser certification buzzer Certification complete Certification ECU (Smart Key ECU Assembly) CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Driving with parking brake unreleased warning buzzer Parking brake switch Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Vehicle speed Skid Control ECU CAN (CAN No. 1 Bus)
      Sliding roof open warning*1 Sliding roof open warning buzzer request Main Body ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Dynamic radar cruise control low speed cancel buzzer*2 Dynamic radar cruise control low speed cancel Driving Support ECU Assembly CAN (CAN No. 2 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      NDB warning buzzer NDB warning buzzer Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Acceleration depressed when shift N position selected buzzer Acceleration depressed when shift N position selected buzzer Power Management Control ECU CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Brake control system power low warning Brake control system power low warning Combination meter assembly CAN Skid control ECU
      Brake system temperature rise or active test Brake system temperature rise or active test Combination meter assembly CAN Skid control ECU
      Temperature warning or crawl stop warning Temperature warning or crawl stop warning Combination meter assembly CAN Skid control ECU
      Hill-start assist control (reset) Hill-start assist control (reset) Combination meter assembly CAN Skid control ECU
      Hill-start assist control (set) Hill-start assist control (set) Combination meter assembly CAN Skid control ECU
      Hill-start assist control (normal control) Hill-start assist control (normal control) Combination meter assembly CAN Skid control ECU
      Hill-start assist control (end announcement) Hill-start assist control (end announcement) Combination meter assembly CAN Skid control ECU
      • *1: w/ Sliding Roof
      • *2: w/ Dynamic Radar Cruise Control System
    6. Others
      Signal Communication Signal Sender Communication Line Receiver
      Vehicle speed signal Vehicle speed Skid Control ECU Direct Line Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Vehicle speed Combination Meter Assembly (No. 3 Meter Circuit Plate) Direct Line Navigation ECU Sub-assembly*1
      Radio and Display Receiver Assembly*2
      Stereo Component Amplifier Assembly*3
      Power Management Control ECU
      Tire Pressure Warning ECU*4
      Tire Pressure Warning ECU and Receiver*8
      Headlight Leveling ECU Assembly*5
      DCM (Telematics Transceiver)*6
      Vehicle Approaching Speaker Controller*7
      Front passenger side seat belt warning light Front passenger side seat belt buckle switch Center Airbag Sensor Assembly CAN (CAN No. 1 Bus) Combination Meter Assembly (No. 3 Meter Circuit Plate)
      Front passenger side seat belt warning light Combination Meter Assembly (No. 3 Meter Circuit Plate) Direct Line Telltale Light Assembly
      • *1: for Navigation Receiver Type or for Radio and Display Type (w/o Daytime Running Light)
      • *2: for Radio and Display Type (w/ Daytime Running Light)
      • *3: for 8 Speakers
      • *4: w/ Tire Pressure Warning System with Vehicle Proximity Notification System
      • *5: for Automatic Type Headlight Beam Level Control
      • *6: w/ Manual (SOS) Switch
      • *7: w/ Vehicle Proximity Notification System
      • *8: w/ Tire Pressure Warning System without Vehicle Proximity Notification System
  3. MULTI-INFORMATION DISPLAY FLOW CHART
    1. Multi-information display flow chart
      Fig 2: Identifying Multi-Information Display Flow Chart (Power Off) (1 Of 2)
      GTY333787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

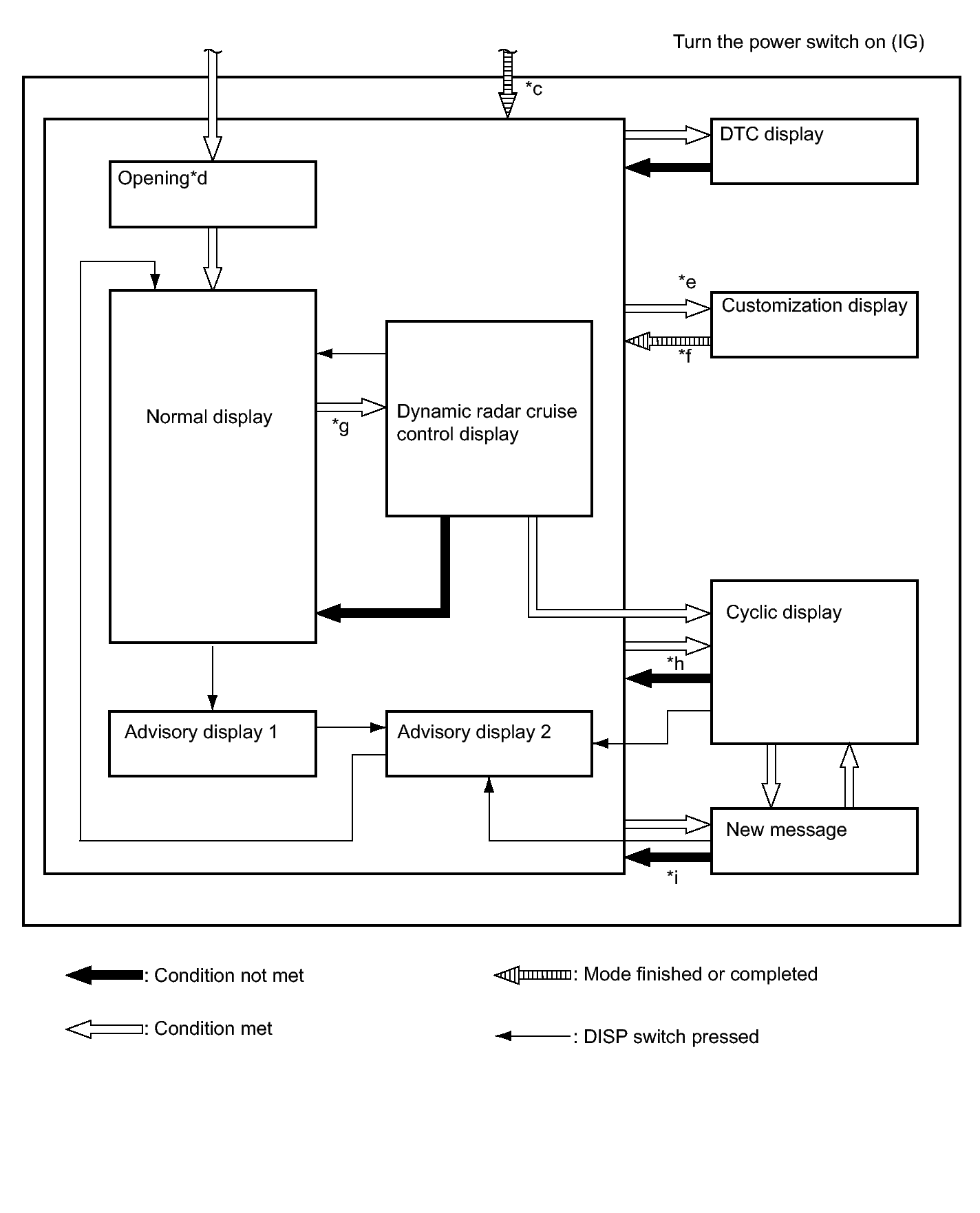

      Fig 3: Identifying Multi-Information Display Flow Chart (Power On) (1 Of 2)
      GTY229266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Display Shifting Condition

      No. Display Shifting Condition
      *a Display cycles between messages.
      *b Conditions are not met and all new messages have been displayed.
      *c Mode has completed or reset mode is interrupted.
      *d If the power switch turned off, then on (IG) during the opening, then the opening display will be shown from the beginning.
      *e Conditions are met and vehicle speed is less than 8 km/h (5 mph).
      *f Conditions for displaying new messages other than the door open warning are met, or the vehicle speed is more than 8 km/h (5 mph).
      *g Mode has completed and conditions for dynamic radar cruise display are met.
      *h Up or down switch is not operated for more than 6 seconds.
      *i The advisory display will be shown as the last of the normal displays.
  4. HEADUP DISPLAY (COMBINATION METER MIRROR ECU) (w/ Headup Display)
    Item Detail
    Vehicle speed display Receives a vehicle speed signal from the combination meter assembly (No. 3 meter circuit plate) via the direct line.
    Navigation system display Receives a navigation system signal from the navigation receiver assembly via the direct line through the combination meter assembly (No. 3 meter circuit plate).
    Audio system display Receives an audio system signal from the navigation receiver assembly via the direct line through the combination meter assembly (No. 3 meter circuit plate).
    Dynamic radar cruise control system display*1 Receives a dynamic radar cruise control signal from the combination meter assembly (No. 3 meter circuit plate) via the direct line.
    Precrash brake display*2 Receives a precrash brake signal from the combination meter assembly (No. 3 meter circuit plate) via the direct line.
    • *1: w/ Dynamic Radar Cruise Control System
    • *2: w/ Pre-collision System
  5. EACH WARNING DISPLAY
    1. Each warning display for combination meter assembly

      HINT:

      Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

      Fig 4: Identifying Each Warning Display Indicator (1 Of 2)
      GTY293835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 5: Identifying Each Warning Display Indicator (2 Of 2)
      GTY480311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Each display for headup display (combination meter mirror ECU)

      HINT:

      Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

      Fig 6: Identifying LED Initial Check Illumination Function
      GTY335664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. LED INITIAL CHECK
    1. Check the illumination function of the warning or indicator lights listed below when turning the power switch on (IG).

      OK

      Warning or Indicator Light Specified Condition
      PCS warning light*1 Warning light comes on for about 3 seconds after turning the power switch on (IG).
      Tire pressure warning light*2
      Master warning light
      Engine coolant temperature hot warning light
      SRS warning light Warning light comes on for about 6 seconds after turning the power switch on (IG).
      Charge warning light Warning light comes on when turning the power switch on (IG) before hybrid system starts.
      MIL (Check engine warning light)
      EPS warning light
      Brake warning light / red (malfunction)
      • Indicator or warning light comes on when turning the power switch on (IG) before hybrid system starts.*3
      • Indicator or warning light comes on when turn the power switch off to on (READY) for 3 seconds, then goes off.
      ABS warning light
      Slip indicator light
      Brake warning light / yellow (minor malfunction)
      • *1: w/ Pre-collision System
      • *2: w/ Tire Pressure Warning System
      • *3: When turning the power switch on (IG), if it takes 3 seconds or more for the READY indicator light to illuminate, the warning or indicator light turns off right after the READY indicator light illuminates.
