System Diagram [08/2014 - ]

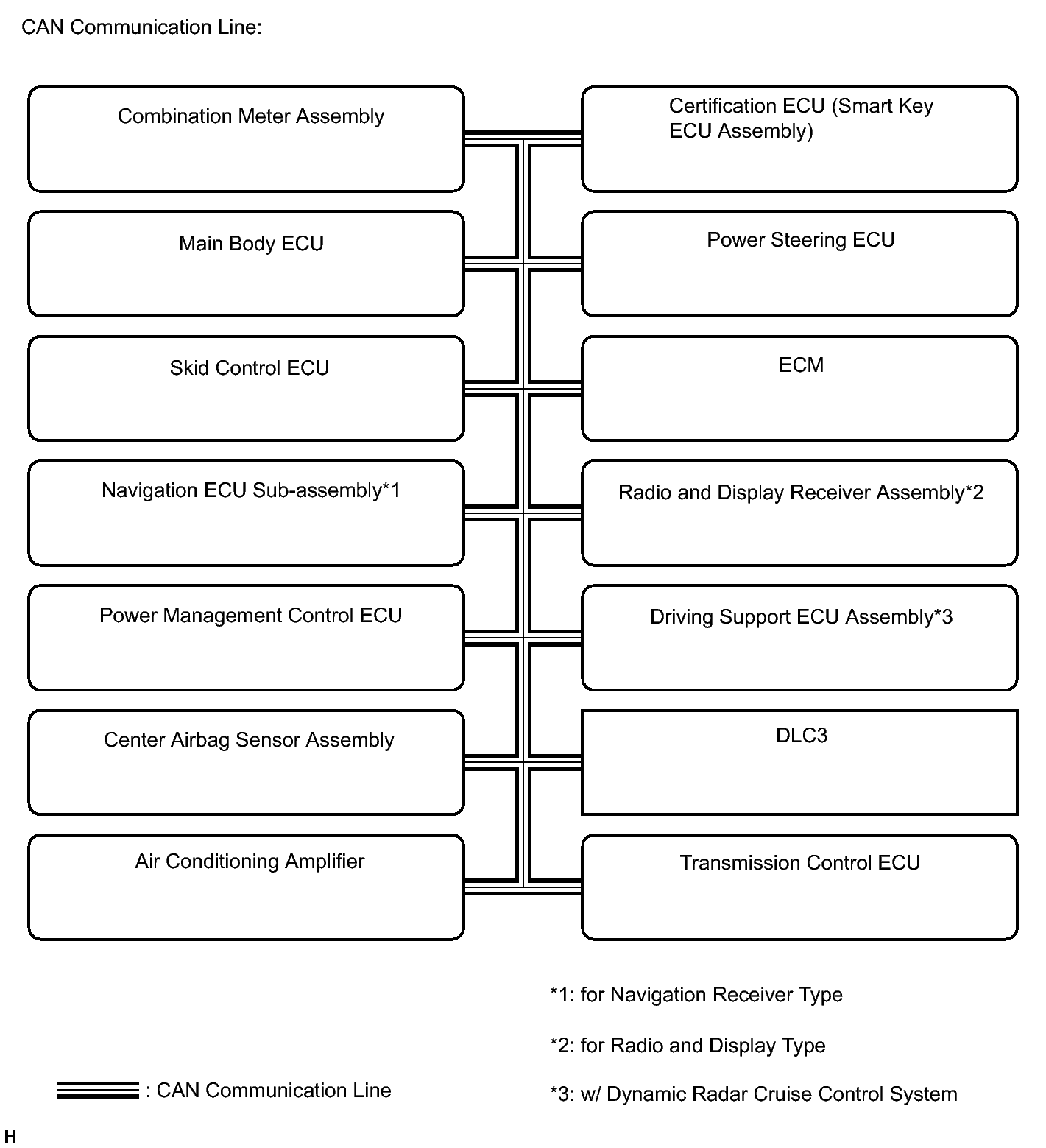

Fig 1: Identifying Meter / Gauge System Diagram (1 Of 3)
GTY478791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

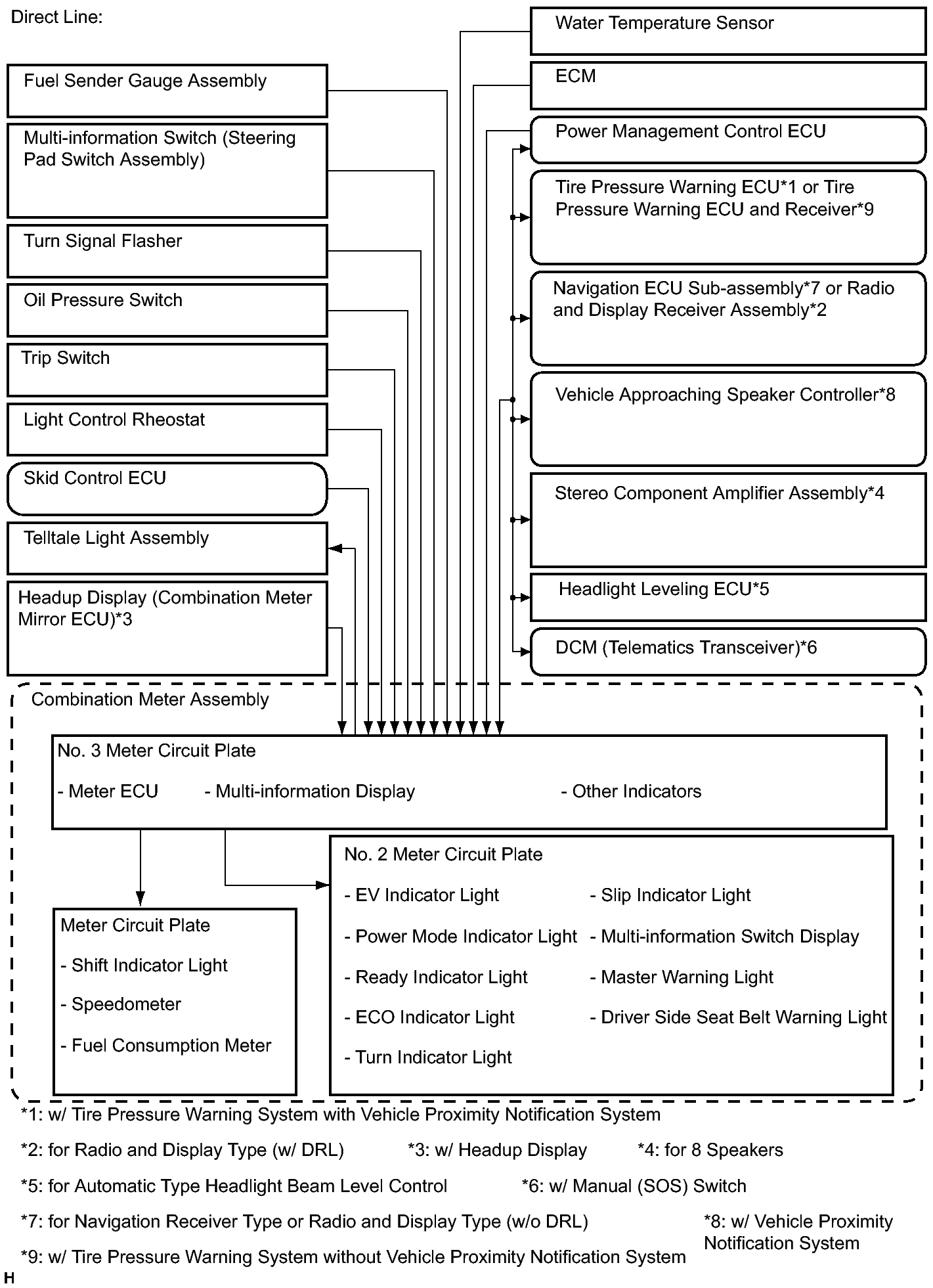

Fig 2: Identifying Meter / Gauge System Diagram (2 Of 3)
GTY482291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Meter / Gauge System Diagram (3 Of 3)
GTY342160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
