DTC B1805/52: Short in Front Passenger Side Squib Circuit; DTC B1806/52: Open in Front Passenger Side Squib Circuit; DTC B1807/52: Short to GND in Front Passenger Side Squib Circuit; DTC B1808/52: Short to B+ in Front Passenger Side Squib Circuit [12/2014 - 05/2015]: Wiring Diagram

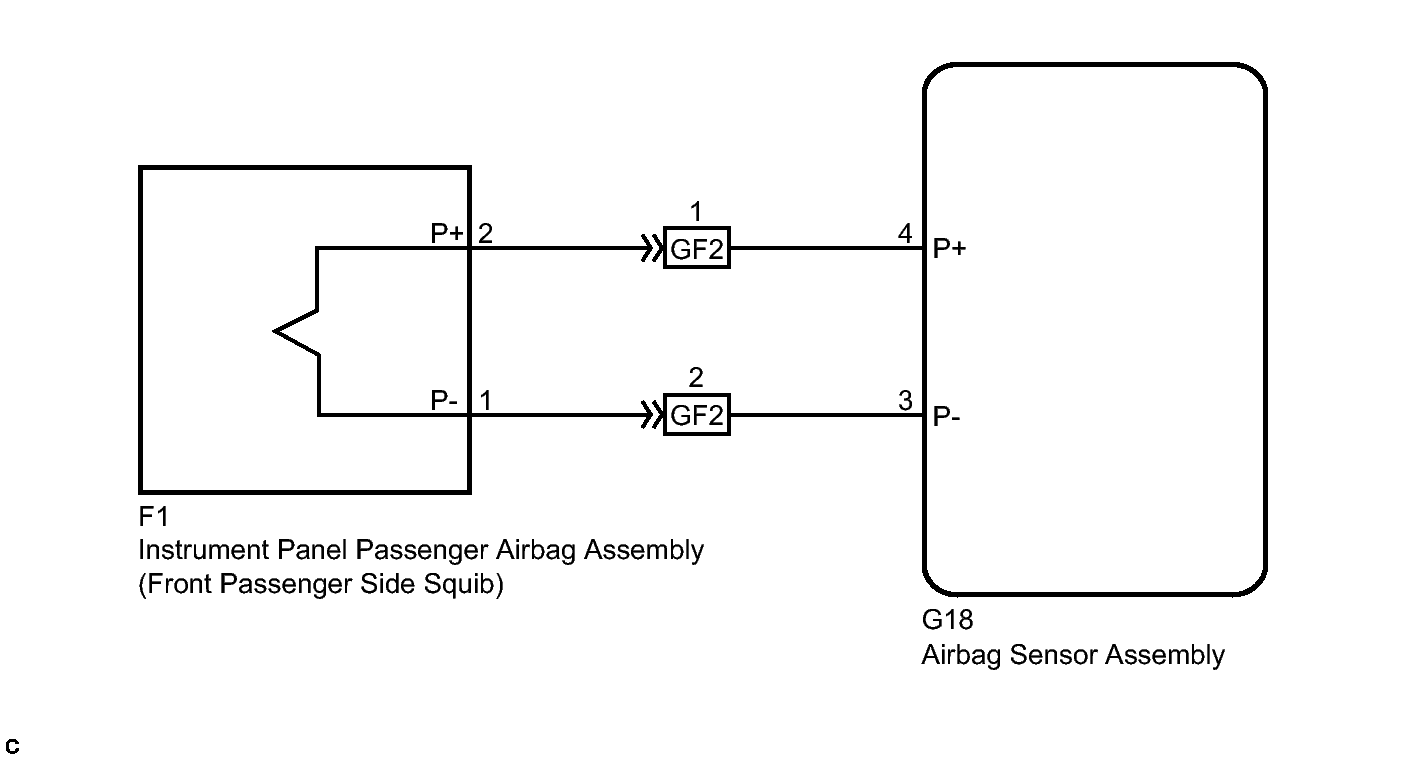

Fig 1: Side Squib Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
