DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [12/2014 - 05/2015]: Wiring Diagram

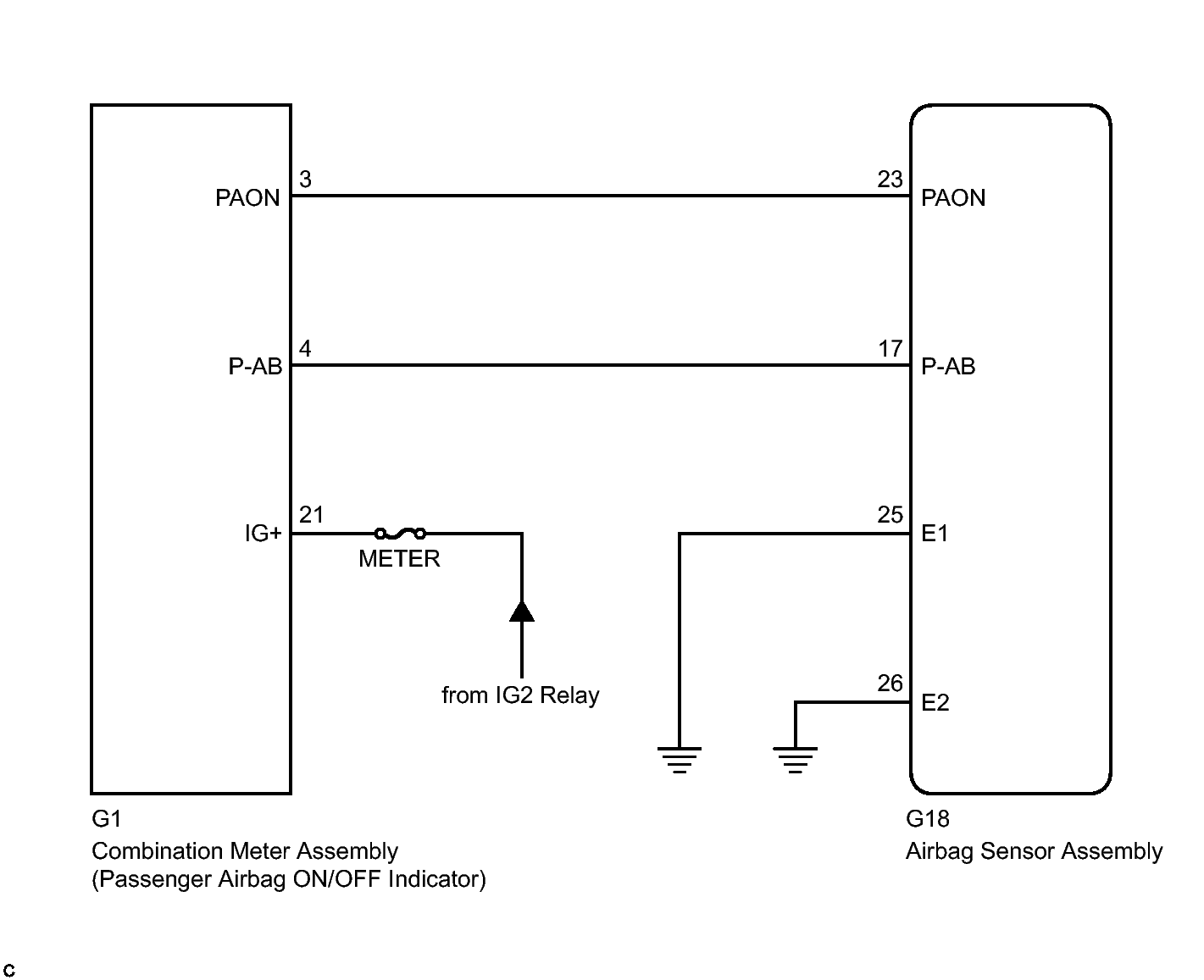

Fig 1: Airbag Sensor Assembly Wiring Diagram

GTY477884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
