DTC B1507, B1508: Open in Turn Signal Circuit; Short in Turn Signal/Hazard Flasher Circuit [12/2014 - ]: Wiring Diagram

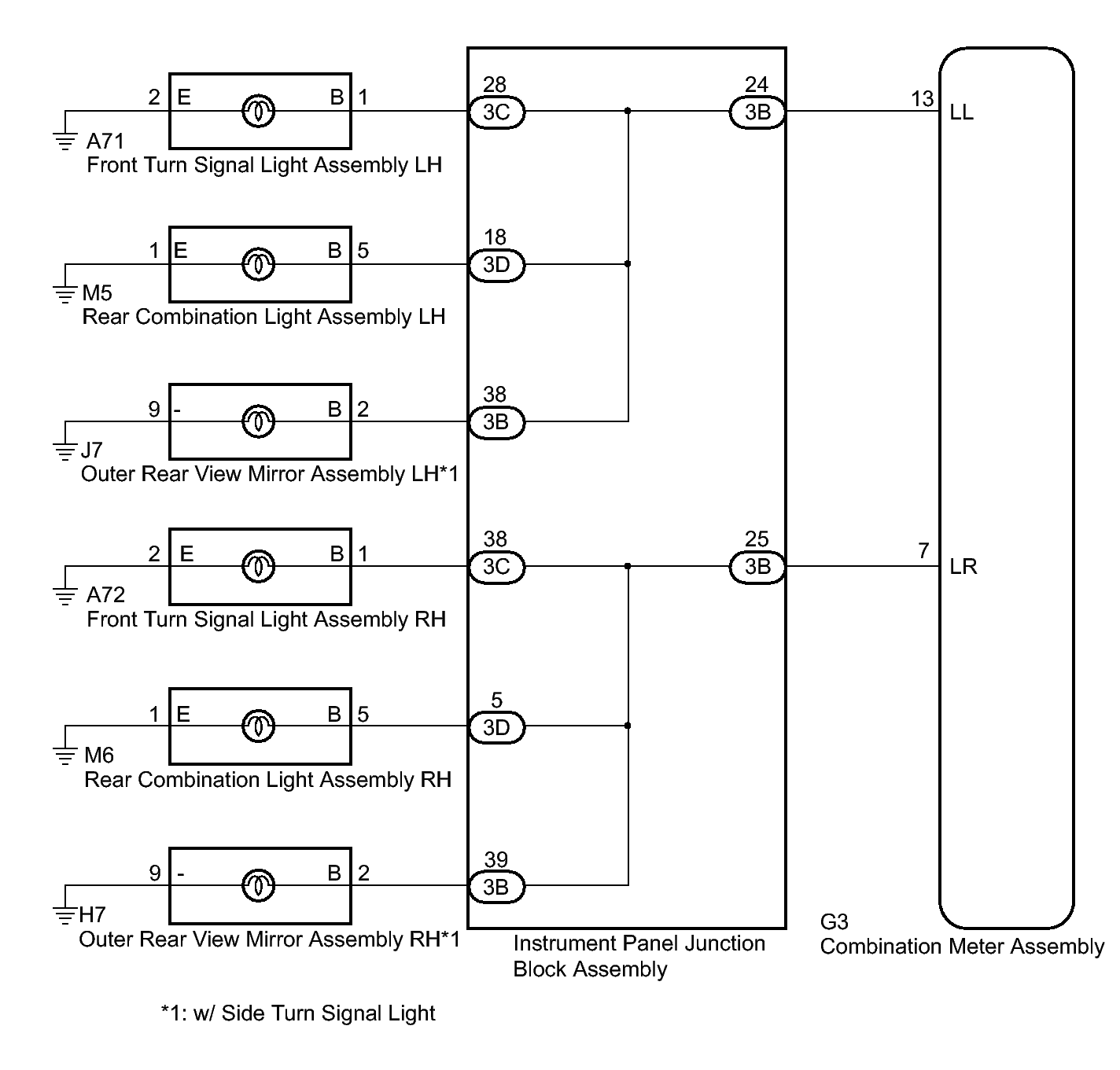

Fig 1: Turn Signal Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
