DTC P0AFC-123: Hybrid Battery Pack Sensor Module [12/2014 - ]: Wiring Diagram

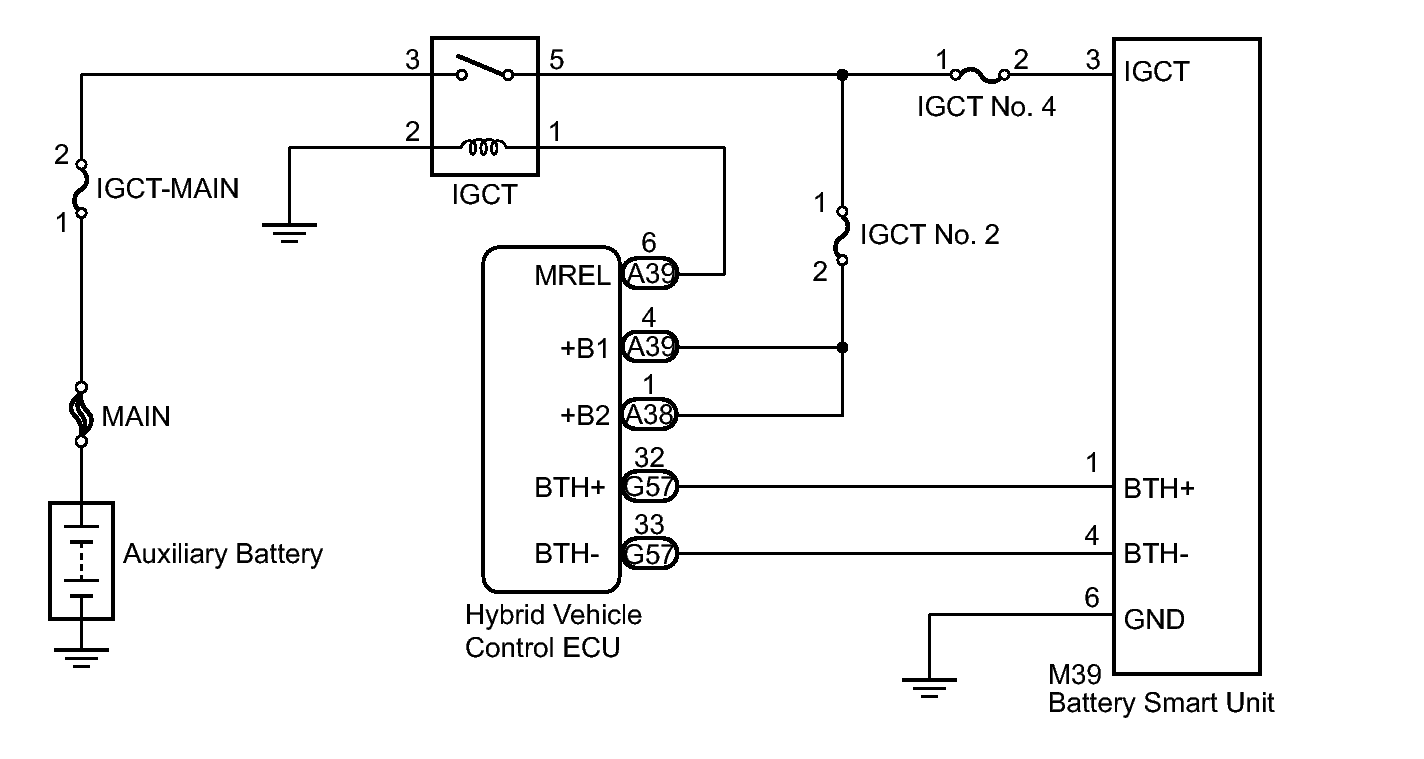

Fig 1: Hybrid Battery Pack Sensor Module Wiring Diagram

GTY479294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
