DTC P0AAE-123, P0AAF-123: Hybrid Battery Pack Air Temperature Sensor "A" Circuit Low; Hybrid Battery Pack Air Temperature Sensor "A" Circuit High [12/2014 - ]: Procedure

B → See step   8

A: Go to next step

1. Check that the service plug grip is not installed.
   NOTE: After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.
2. Remove the No. 1 hybrid battery shield sub-assembly. Refer to REMOVAL [12/2014 - ] - Step 13 .

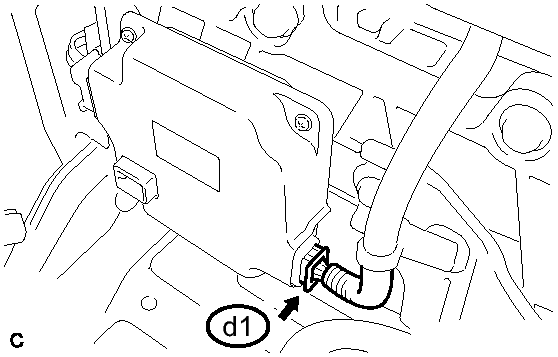

3. Check the connections of the d1 connector of the battery smart unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The connectors are connected securely and there are no contact problems.

4. Install the No. 1 hybrid battery shield sub-assembly.

NG → CONNECT SECURELY

OK: Go to next step

1. Check that the service plug grip is not installed.
   NOTE: After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.
2. Remove the No. 2 hybrid battery shield sub-assembly. Refer to REMOVAL [12/2014 - ] - Step 14 .

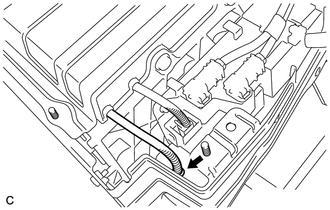

3. Visually check the installation condition of the inlet air temperature sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The inlet air temperature sensor is installed in the correct location and its claws are engaged securely.

   Result

   Result	Proceed to
   The inlet air temperature sensor is installed in the correct location and its claws are engaged securely	A
   Claws are damaged.	B
   Inlet air temperature sensor is not installed correctly, but claws are not damaged.	C

4. Install the No. 2 hybrid battery shield sub-assembly.

B → See step   6

C → INSTALL PARTS CORRECTLY

A: Go to next step

1. Check that the service plug grip is not installed.
   NOTE: After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.
2. Remove the No. 1 hybrid battery shield sub-assembly. Refer to REMOVAL [12/2014 - ] - Step 13 .
3. Disconnect connectors M39 and d1 from the battery smart unit.
4. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   d1-1 (TCO) - d1-7 (GCO)	0°C (32°F)	26.7 to 27.8 kΩ
   	25°C (77°F)	9.9 to 10.1 kΩ
   	40°C (104°F)	5.73 to 5.92 kΩ

   TEXT IN ILLUSTRATION

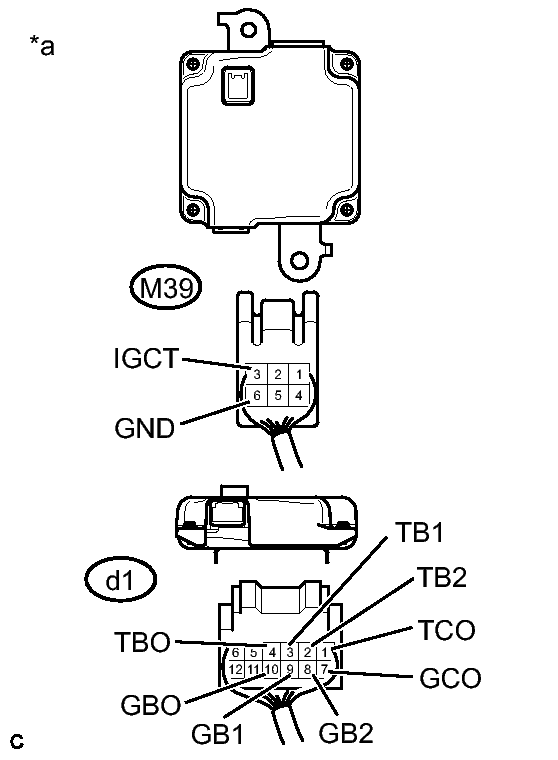

   *a	Rear view of wire harness connector (to Battery Smart Unit)

5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   d1-1 (TCO) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-1 (TCO) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-7 (GCO) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-7 (GCO) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-4 (TBO) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-4 (TBO) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-10 (GBO) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-10 (GBO) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-3 (TB1) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-3 (TB1) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-9 (GB1) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-9 (GB1) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-2 (TB2) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-2 (TB2) - M39-6 (GND)	Ignition switch off	10 kΩ or higher
   d1-8 (GB2) - M39-3 (IGCT)	Ignition switch off	10 kΩ or higher
   d1-8 (GB2) - M39-6 (GND)	Ignition switch off	10 kΩ or higher

6. Connect the battery smart unit connectors.
7. Install the No. 1 hybrid battery shield sub-assembly.

NG → See step   5

OK → See step   7

1. Check that the service plug grip is not installed.
   NOTE: After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.
2. Remove the upper hybrid battery cover sub-assembly. Refer to REMOVAL [12/2014 - ] - Step 25 .
3. Check the wire harness and connectors of the battery temperature sensor and inlet air temperature sensor for abnormalities by sight and touch.

   Specified Condition

   There are no open or short circuits in the wire harness and connectors. There are no short circuits to other wire harnesses.

   HINT:

   Because the battery harness is not available as a supply part, if the harness cannot be repaired, replace the HV battery assembly.

4. Install the upper hybrid battery cover sub-assembly.

NG → REPAIR HARNESS OR CONNECTOR (INLET AIR TEMPERATURE SENSOR AND BATTERY TEMPERATURE SENSOR)

OK → See step   6
