DTC P0A80-123: Replace Hybrid Battery Pack [12/2014 - ]: Description

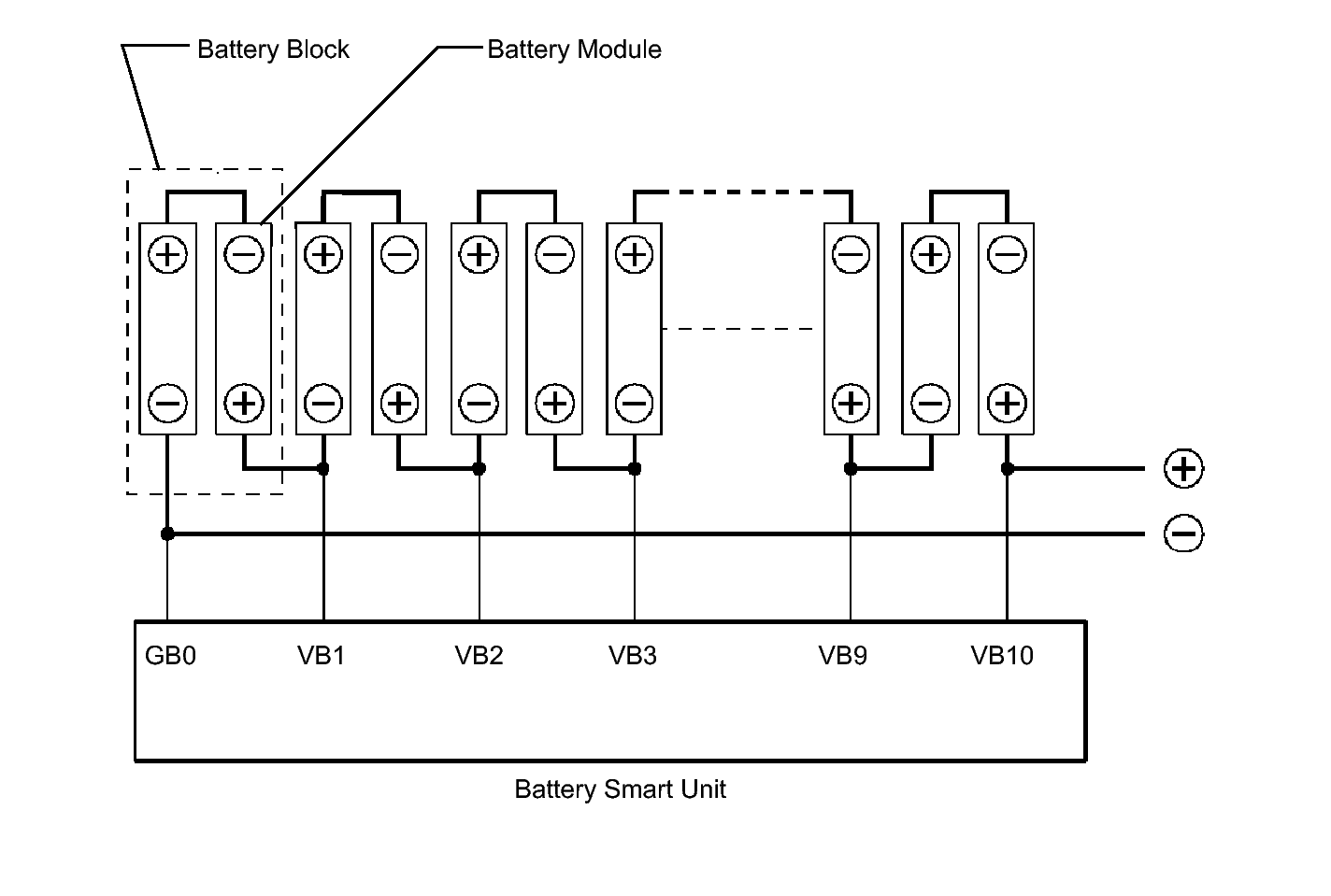

The HV battery uses nickel metal-hydride batteries. The hybrid vehicle control ECU controls the SOC (state of charge) of the HV battery at a constant level during driving. The HV battery is composed of 20 modules, and each module consists of six 1.2 V cells in series. The battery smart unit monitors battery block voltage at 10 locations. Each battery block is composed of 2 modules in a set.
| DTC No. | INF Code | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| P0A80 | 123 | Voltage difference between battery blocks is larger than the specified value due to an internal malfunction of the HV battery. (2 trip detection logic) |
|
RELATED DATA LIST
| DTC No. | Data List |
|---|---|
| P0A80-123 |
|
The following items can be helpful when performing repairs:
Data List
- Ready Signal
- Vehicle Spd
- Accelerator Degree
- Shift Sensor Shift Pos
- Engine Revolution
- Internal Resistance R01 to R10
- Power Resource VB
- Batt Pack Current Val
- Auxiliary Battery Vol
- Battery Low Time
- DC Inhibit Time
- SOC after IG-ON
- Status of Charge Max
- Status of Charge Min
- Total Distance Traveled
- DTC Clear Run Distance
- Engine Run Time
Operation History Data
- Main Battery Low Voltage
HINT:
- This DTC can be stored after clearing DTCs and driving the vehicle for approximately 10 minutes. (As 2 trip detection logic is used, check for DTCs including pending DTCs.)
- DTC P0A80-123 is stored when a malfunction is detected in the HV battery or battery smart unit. If the HV supply battery is malfunctioning, the malfunction may not be reproduced when the condition of the HV supply battery changes due to difference in driving load (amperage), battery SOC and battery temperature. Therefore, use the freeze frame data when performing a repair.
- When the HV battery is malfunctioning:
- - Voltage of 1 or a few battery blocks has dropped. (voltage difference from that of the next block is 1 V or more.)
- - Voltage of all battery blocks is output randomly with no certain pattern.
- When the battery smart unit is malfunctioning:
- - Differences in battery block voltages have a certain pattern.
- When the HV battery is malfunctioning:
