DTC B2430, B2431: LED Headlight LH Circuit Malfunction; LED Headlight RH Circuit Malfunction [12/2014 - ]: Wiring Diagram

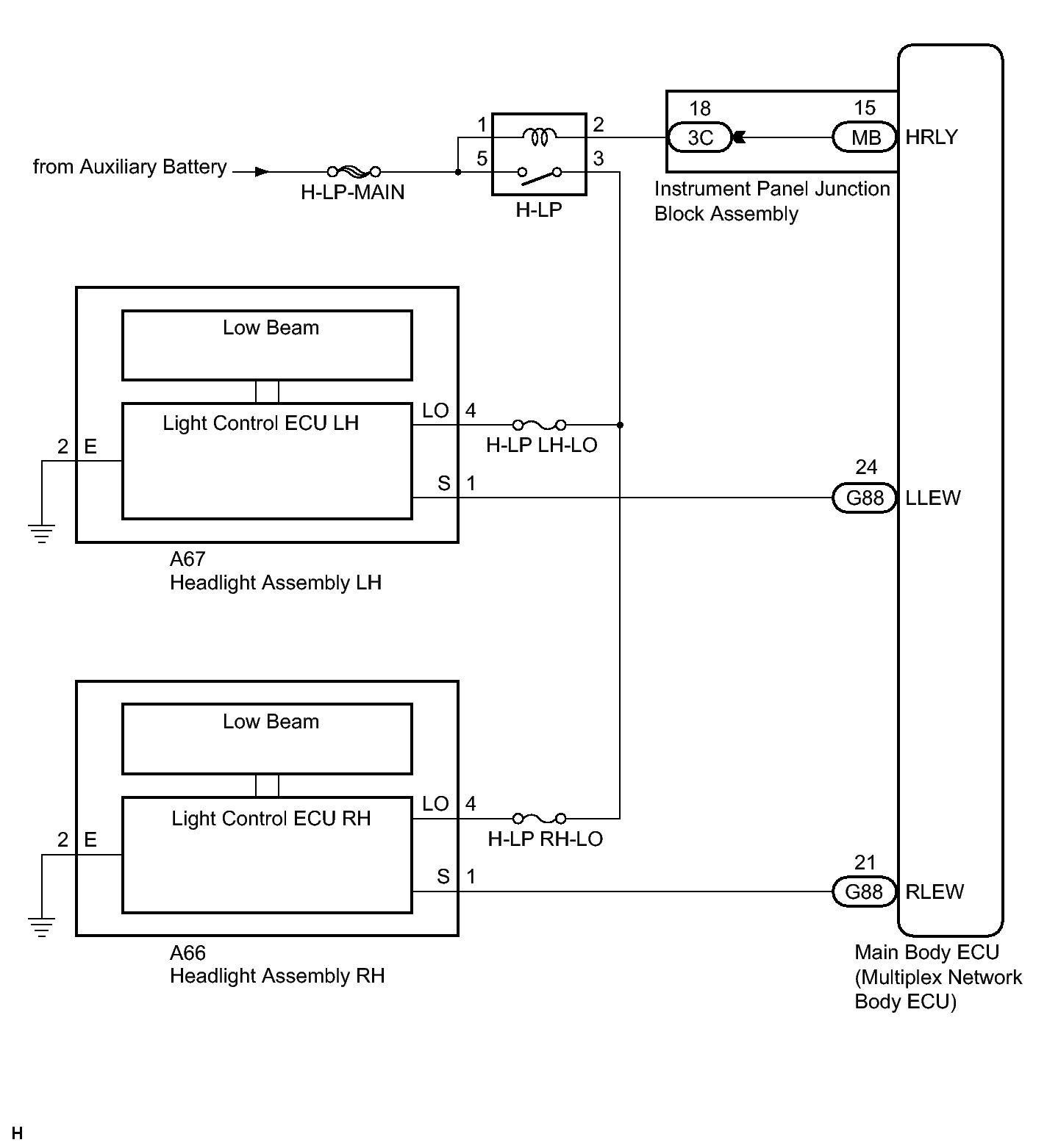

Fig 1: LED Headlight Wiring Diagram
GTY477654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
