Low Beam Headlight Circuit [12/2014 - ]: Wiring Diagram

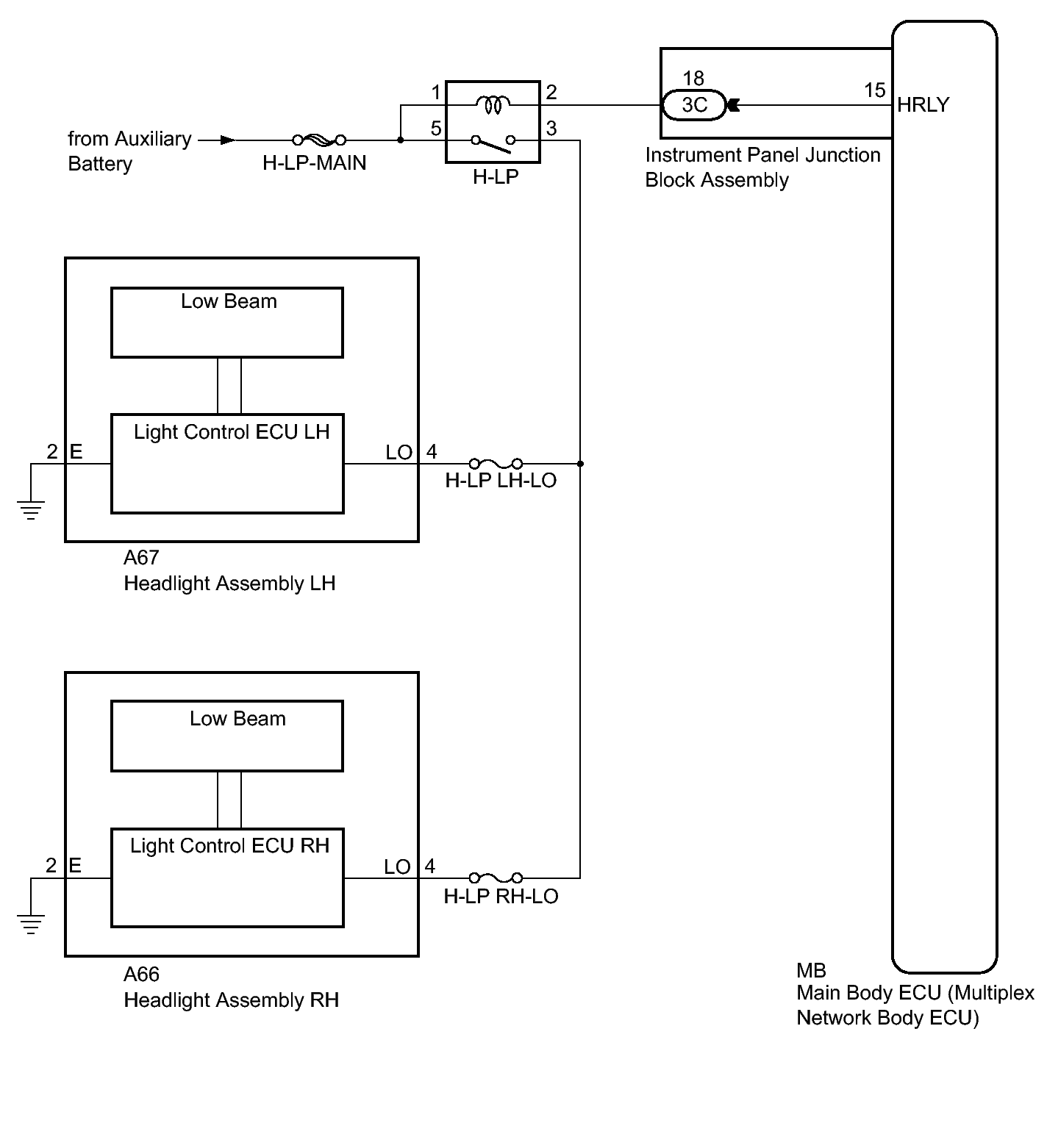

Fig 1: Low Beam Headlight Circuit Wiring Diagram

GTY480318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
