High Beam Headlight Circuit [12/2014 - ]: Wiring Diagram

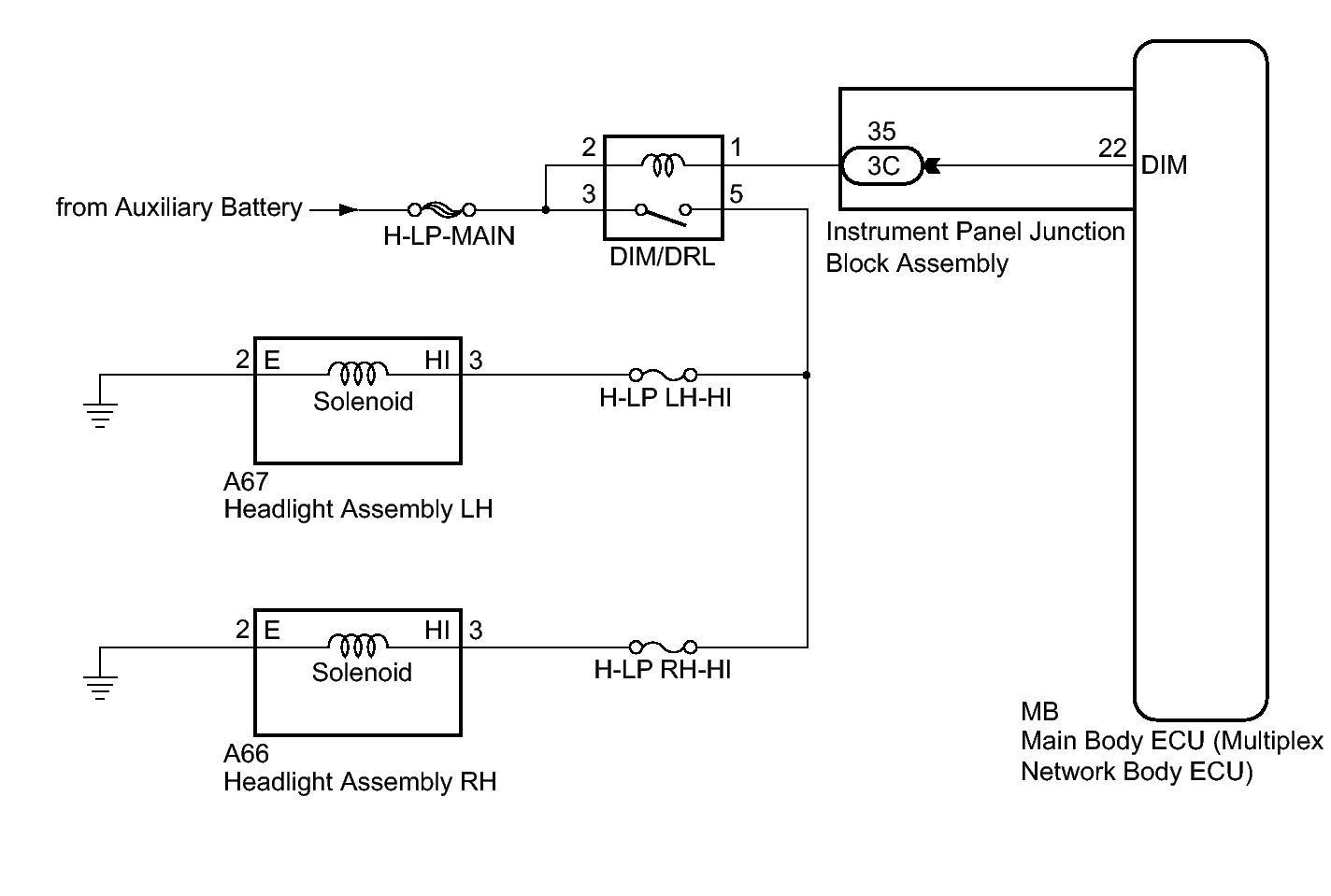

Fig 1: High Beam Headlight Circuit Wiring Diagram

GTY482410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
