Headlight Dimmer Switch Circuit [12/2014 - ]: Wiring Diagram

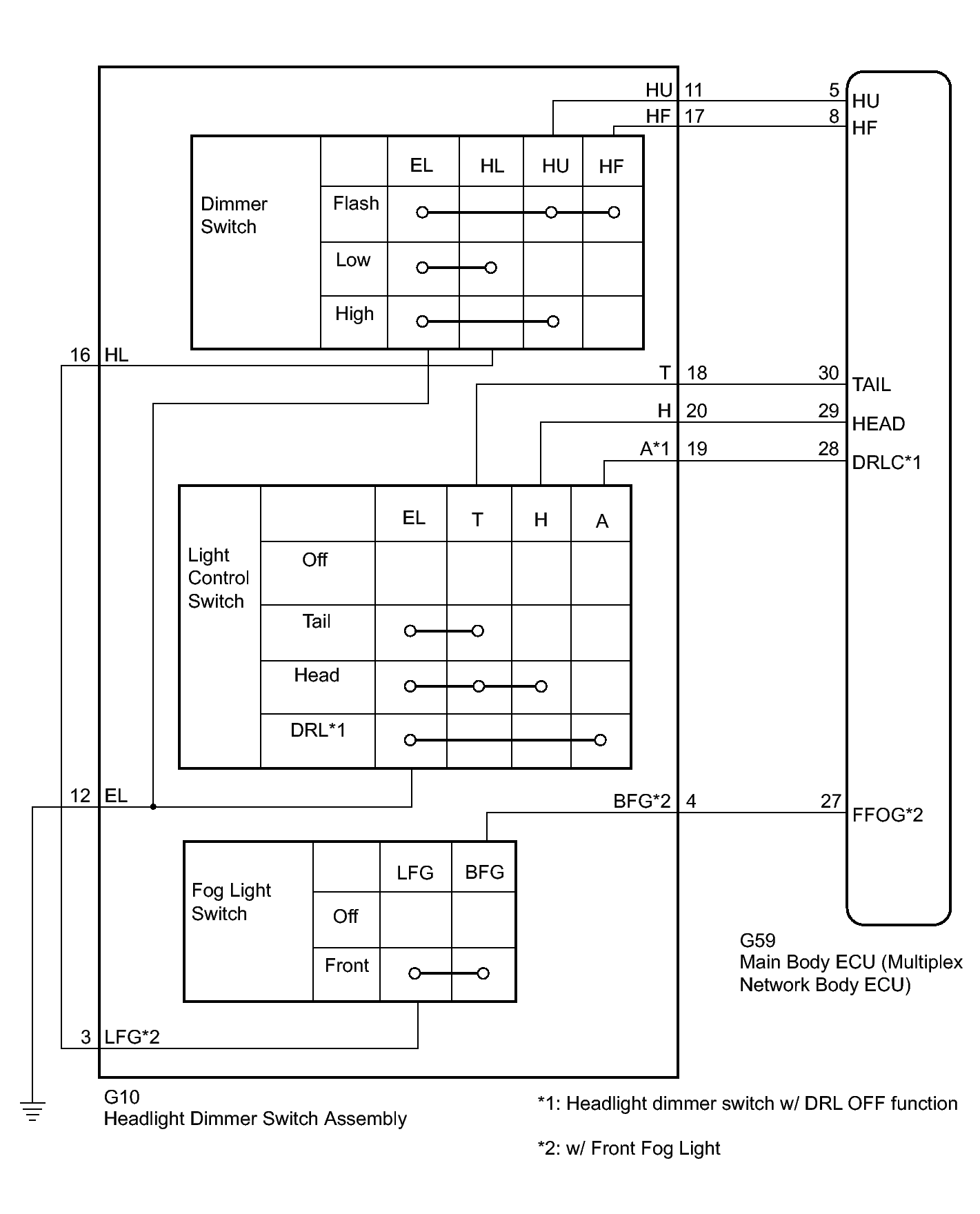

Fig 1: Headlight Dimmer Switch Circuit Wiring Diagram

GTY331349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
