Daytime Running Light Relay Circuit [12/2014 - ]: Wiring Diagram

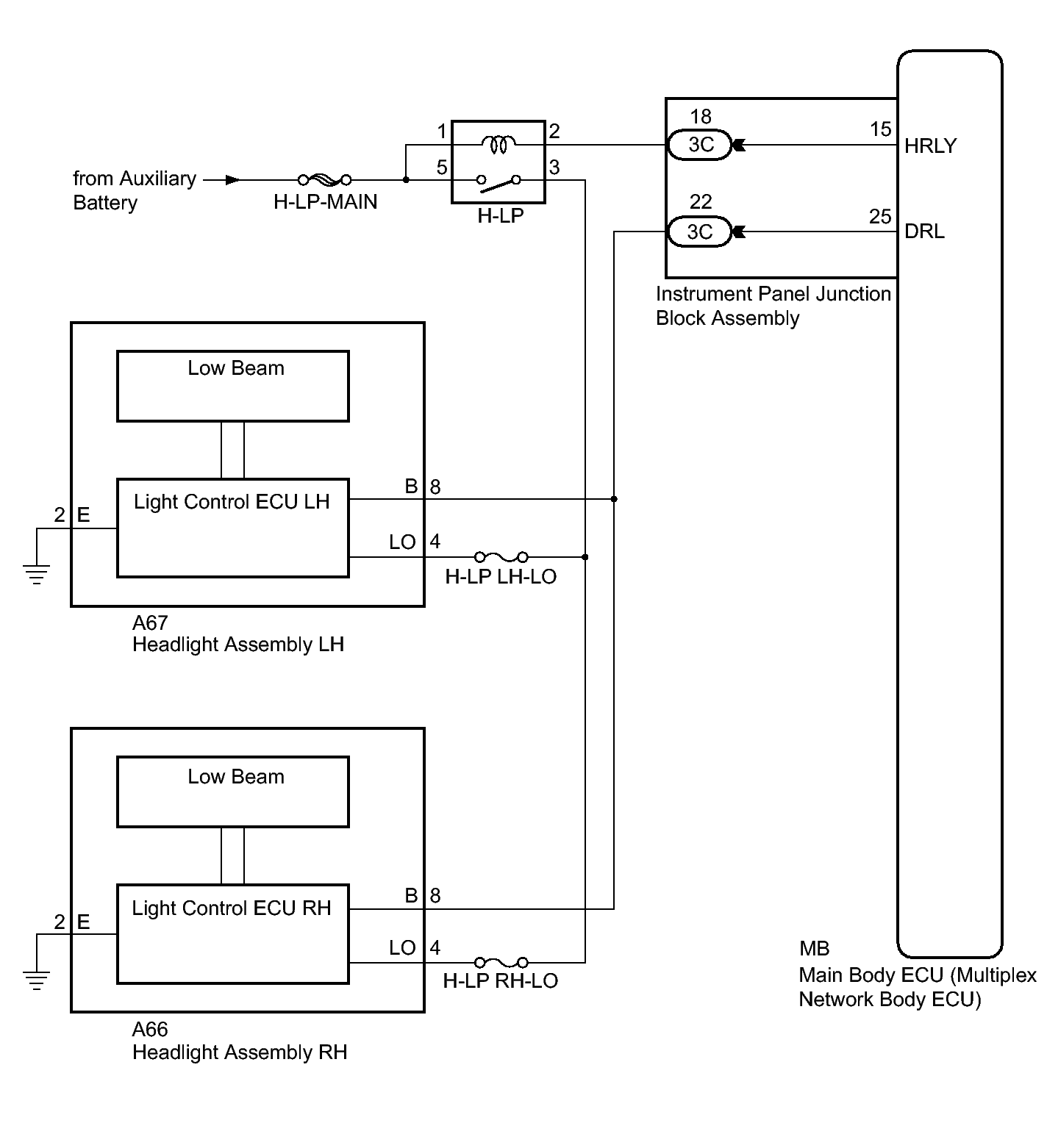

Fig 1: Daytime Running Light Relay Circuit Wiring Diagram

GTY475146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
