DTC U0110-159: Lost Communication with Drive Motor Control Module "A"; DTC U0110-656: Lost Communication with Drive Motor Control Module "A"; DTC U0110-657: Lost Communication with Drive Motor Control Module "A" [12/2014 - ]: Wiring Diagram

Refer to the wiring diagram for DTC P0AA6-526. Refer to WIRING DIAGRAM .

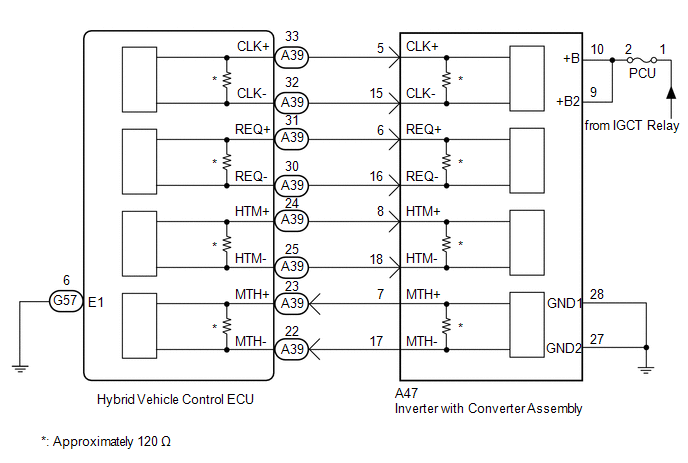

Fig 1: Drive Motor Control Module Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
