DTC P321E-318: All HV Gate Blocking Range/Performance [12/2014 - ]: Wiring Diagram

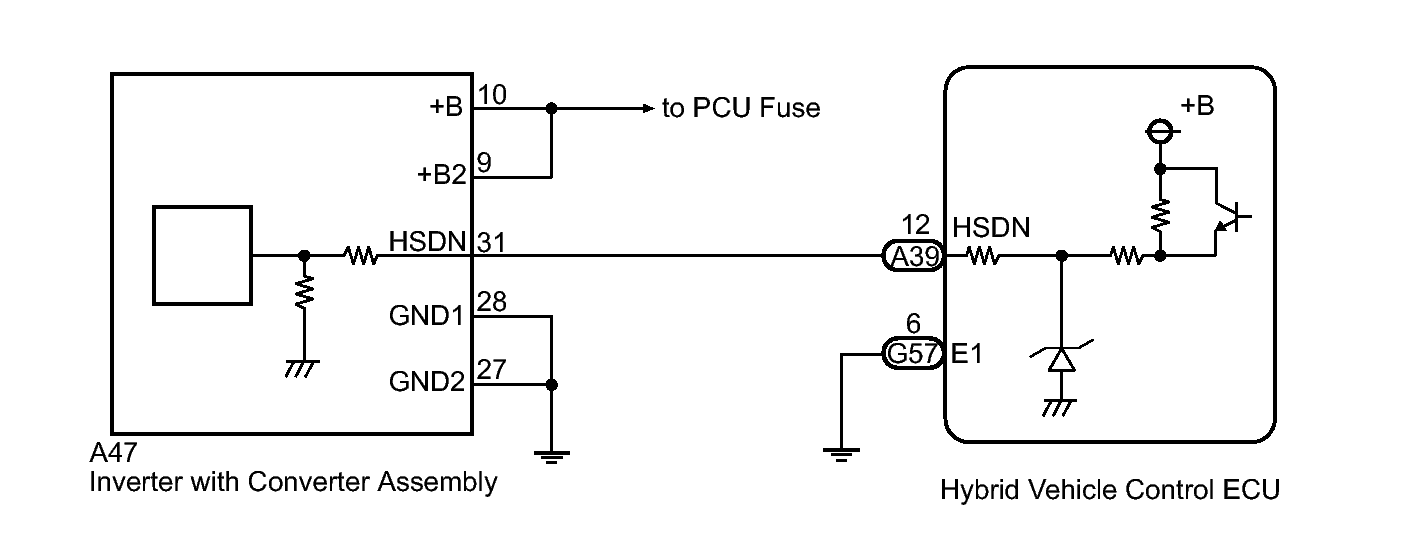

Fig 1: Hybrid Vehicle Control ECU Wiring Diagram

GTY475684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
