DTC P2532-772: Ignition Switch Run Position Circuit High [12/2014 - ]: Wiring Diagram

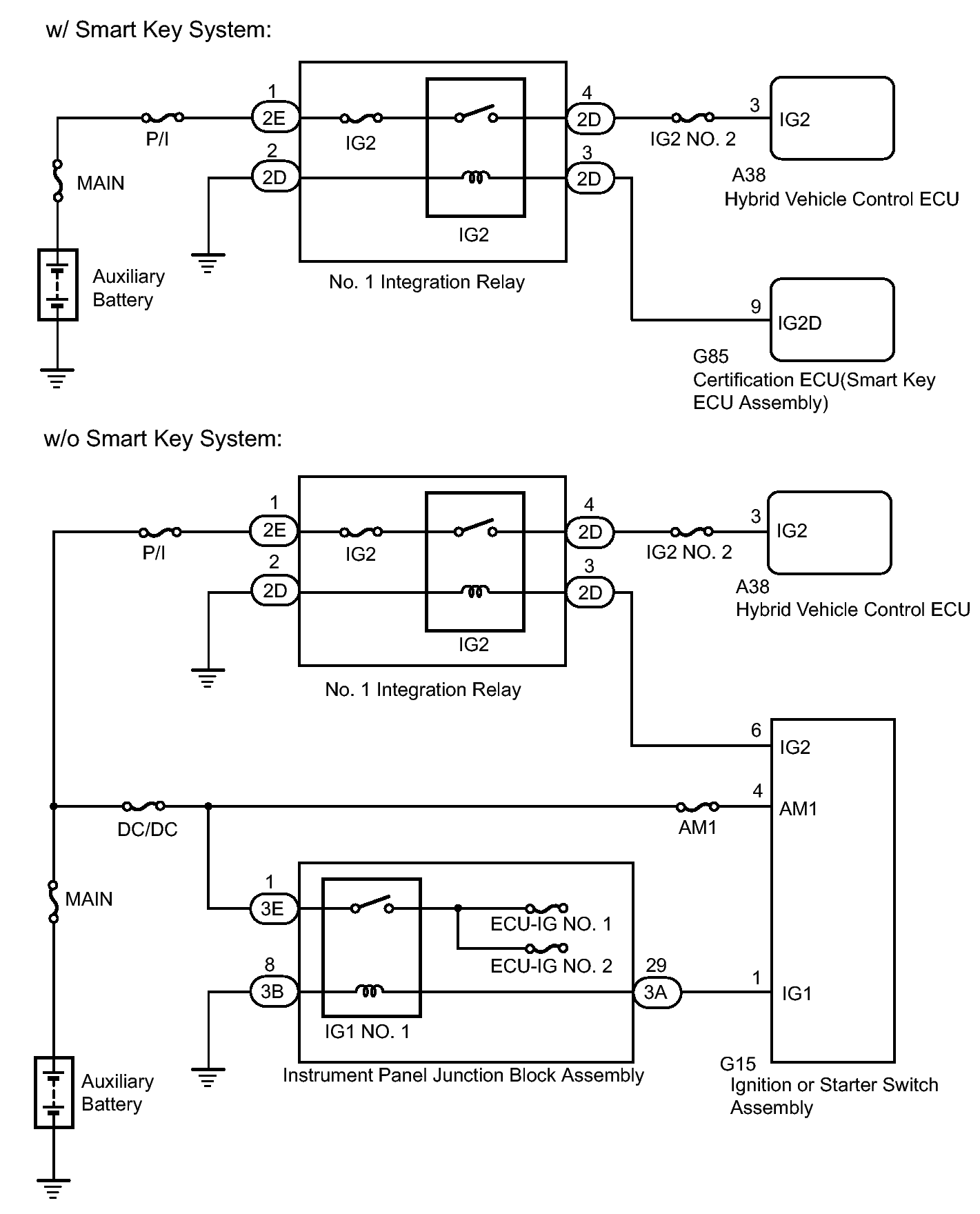

Fig 1: Ignition Switch Run Position Circuit Diagram W/Smart Key System
GTY479964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
