Drive Start Control System [12/2014 - ]: Description

The drive start control is controlled by the hybrid vehicle control ECU.

If the hybrid vehicle control ECU determines that the shift lever and accelerator pedal are operated abnormally, driving torque is restricted and, when necessary, a warning is displayed on the combination meter assembly.

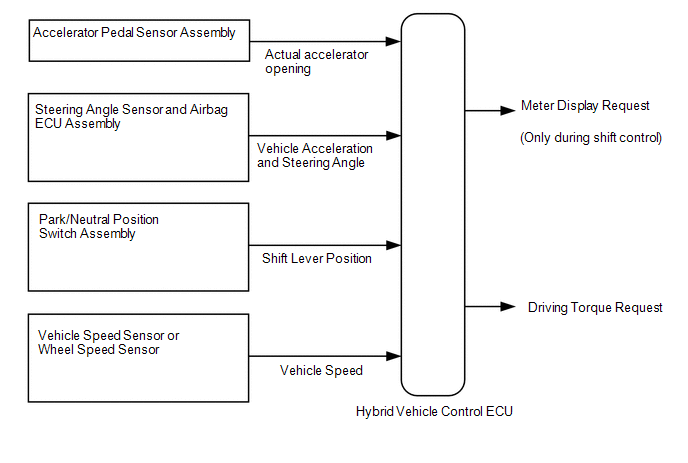

Fig 1: Drive Start Control System Diagram
GTY475535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
