DTC P0C73-776: Motor Electronics Coolant Pump "A" Control Performance [12/2014 - ]: Wiring Diagram

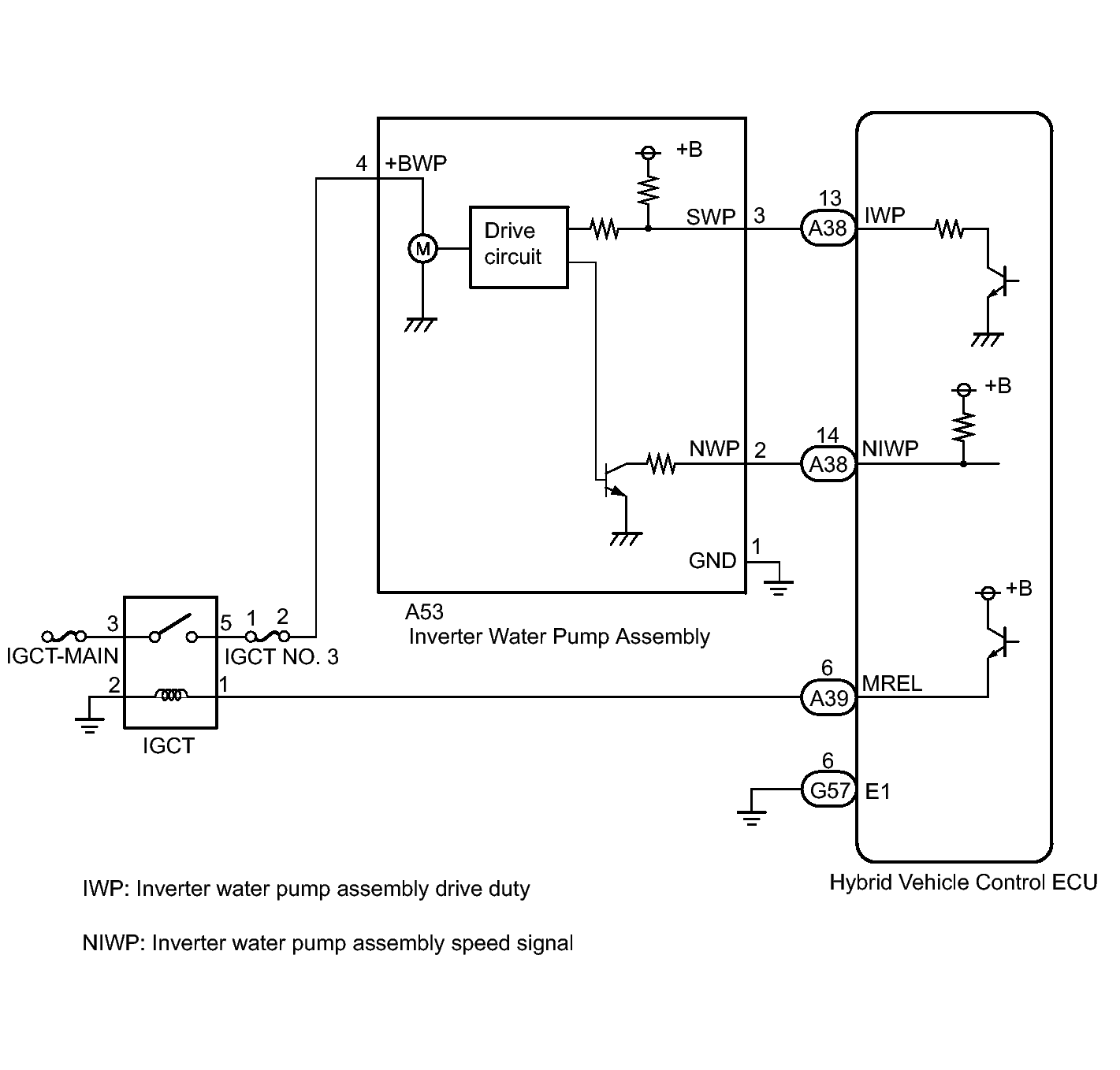

Fig 1: Inverter Water Pump Assembly Wiring Diagram
GTY473445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
