DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low [12/2014 - ]: Wiring Diagram

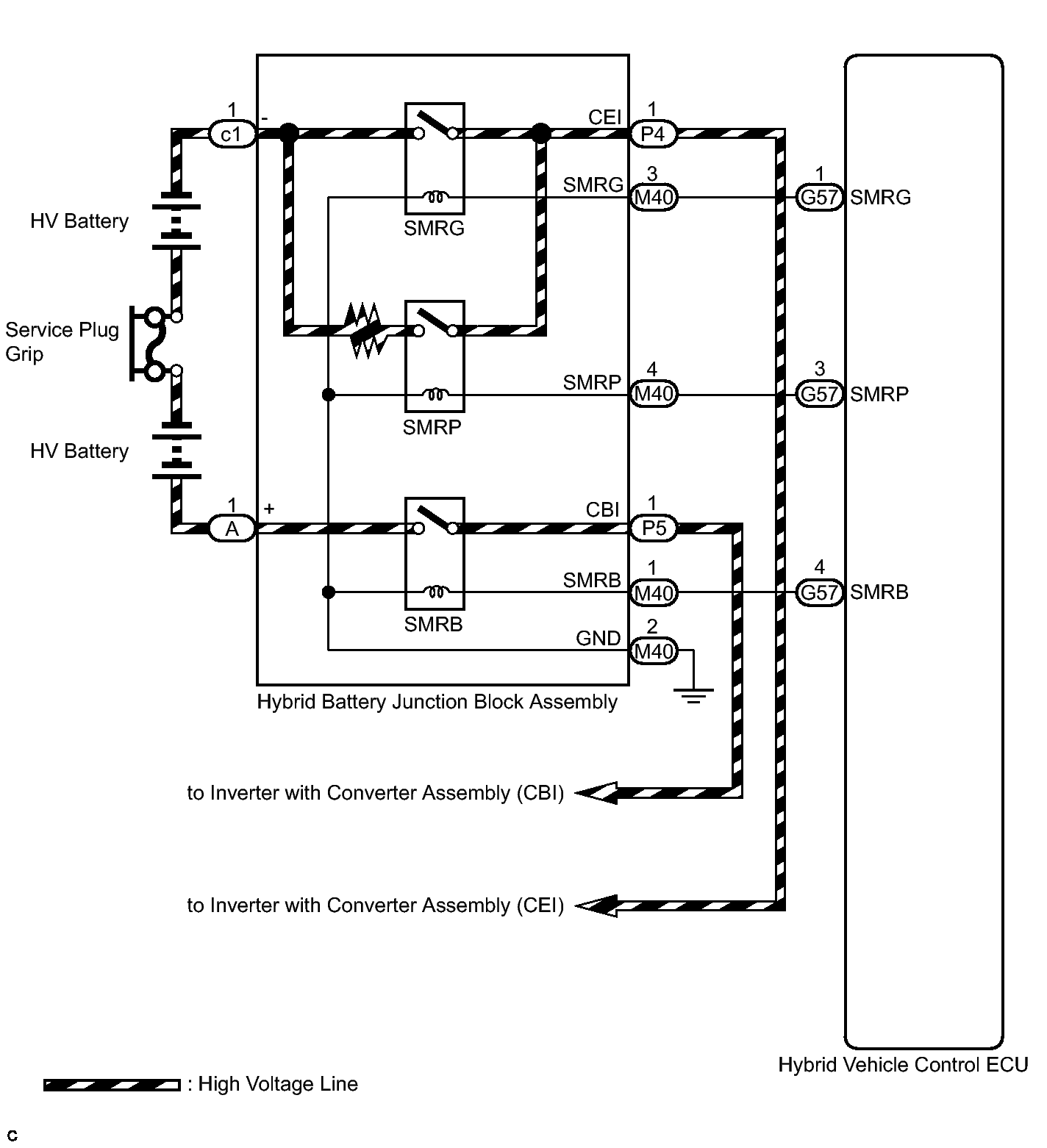

Fig 1: Hybrid Vehicle Control ECU Wiring Diagram (1 Of 2)
GTY474651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

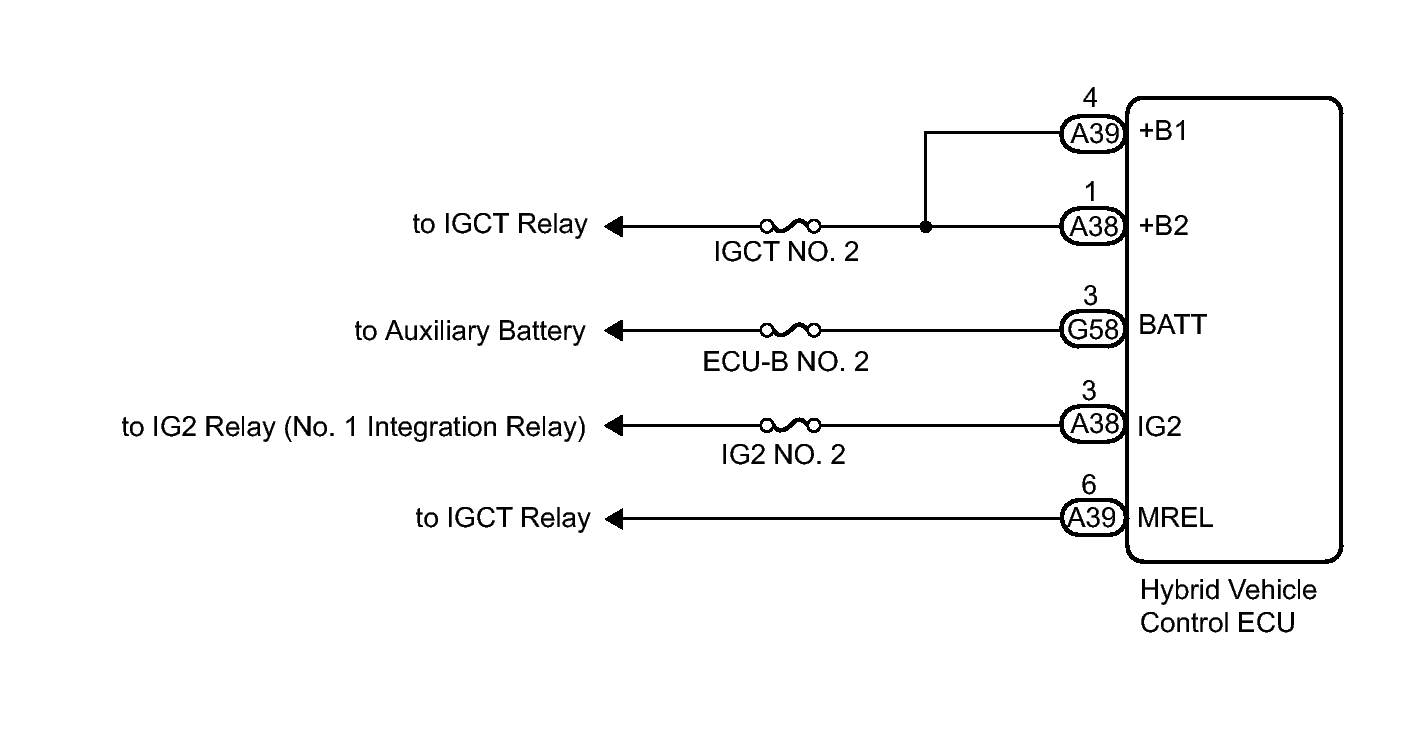

Fig 2: Hybrid Vehicle Control ECU Wiring Diagram (1 Of 2)
GTY478335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
