DTC P0A0F-238: Engine Failed to Start [12/2014 - ]: Description

If the hybrid vehicle control ECU detects that the engine or transaxle gear has seized, the hybrid vehicle control ECU will perform fail-safe control. Also, if a substance or object is preventing the engine or transaxle internal components from rotating, the hybrid vehicle control ECU will perform fail-safe control.

DTC No.	INF Code	DTC Detection Condition	Trouble Area
P0A0F	238	The engine does not start even though it is being cranked while driving (engine or transmission input components malfunction) (1 trip detection logic)	Hybrid vehicle transaxle assembly Transmission input damper assembly Hybrid vehicle control ECU Engine

RELATED DATA LIST

DTC No.	Data List
P0A0F-238	Engine Revolution Generator(MG1) Torq Generator(MG1) Rev Vehicle Spd Motor(MG2) Revolution

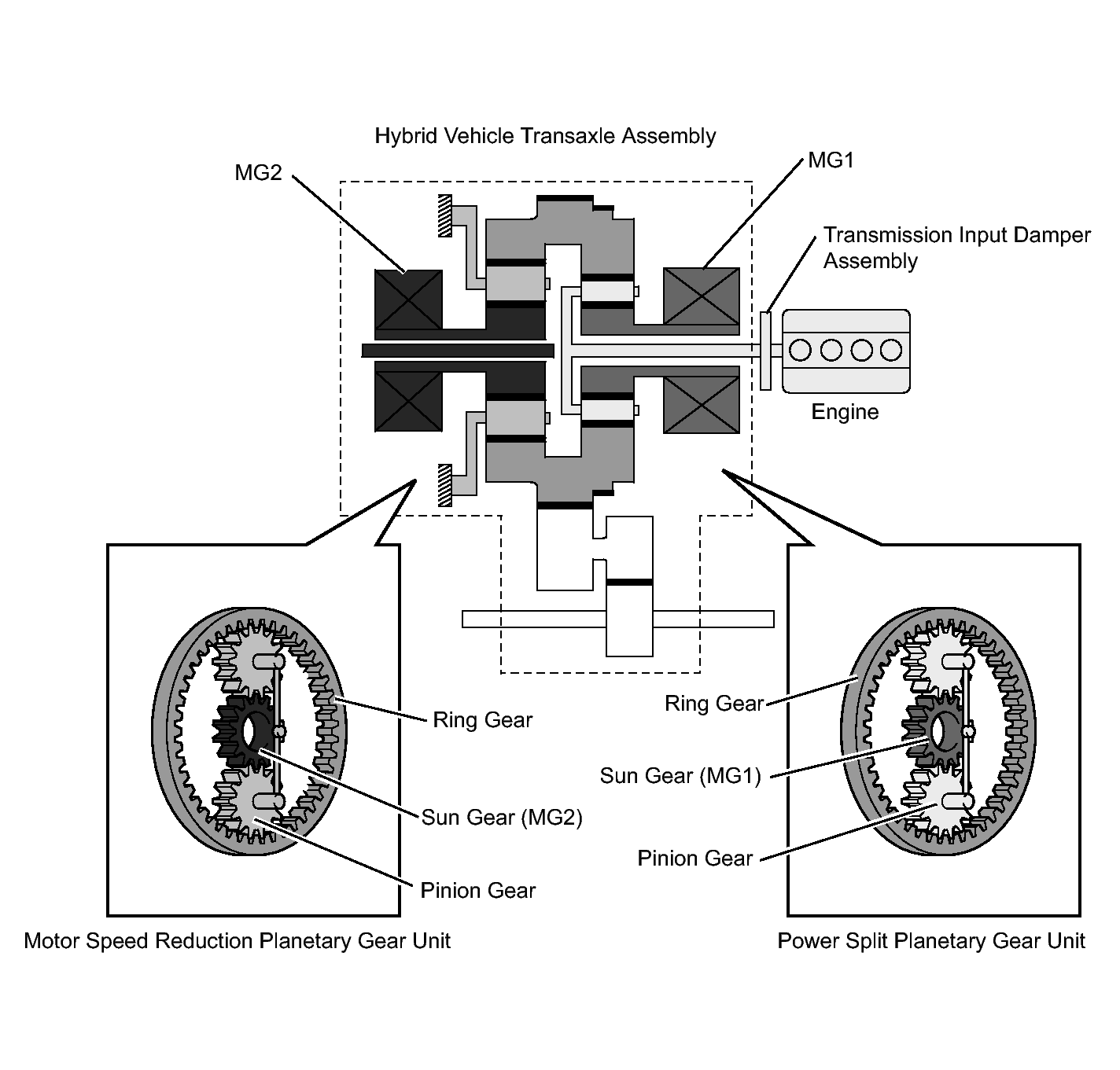

Fig 1: Identifying Hybrid Vehicle Transaxle Assembly & Planetary Gear Units
