DTC P0A09-591: DC / DC Converter Status Circuit Low Input [12/2014 - ]: Wiring Diagram

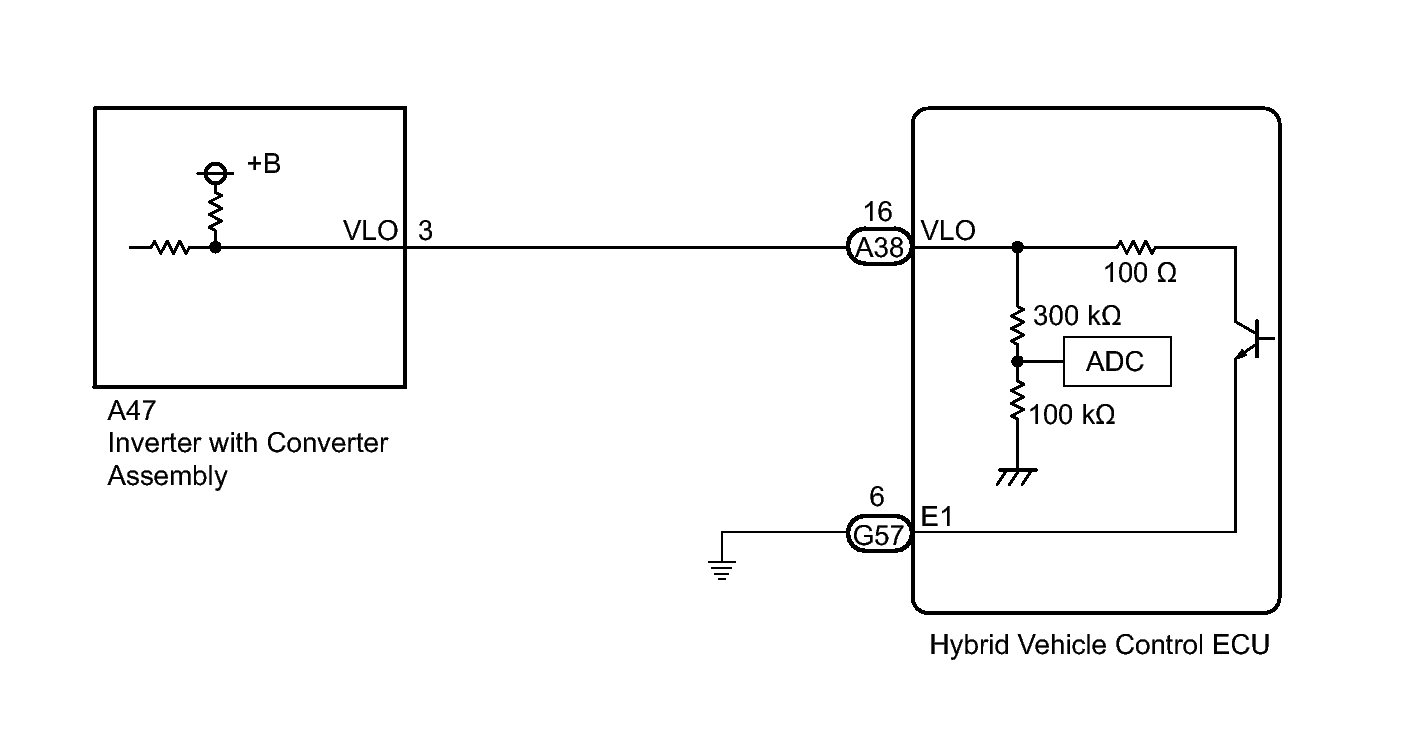

Fig 1: DC / DC Converter Status Circuit Diagram

GTY473235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
