DTC P0A08-264: DC / DC Converter Status Circuit [12/2014 - ]: Wiring Diagram

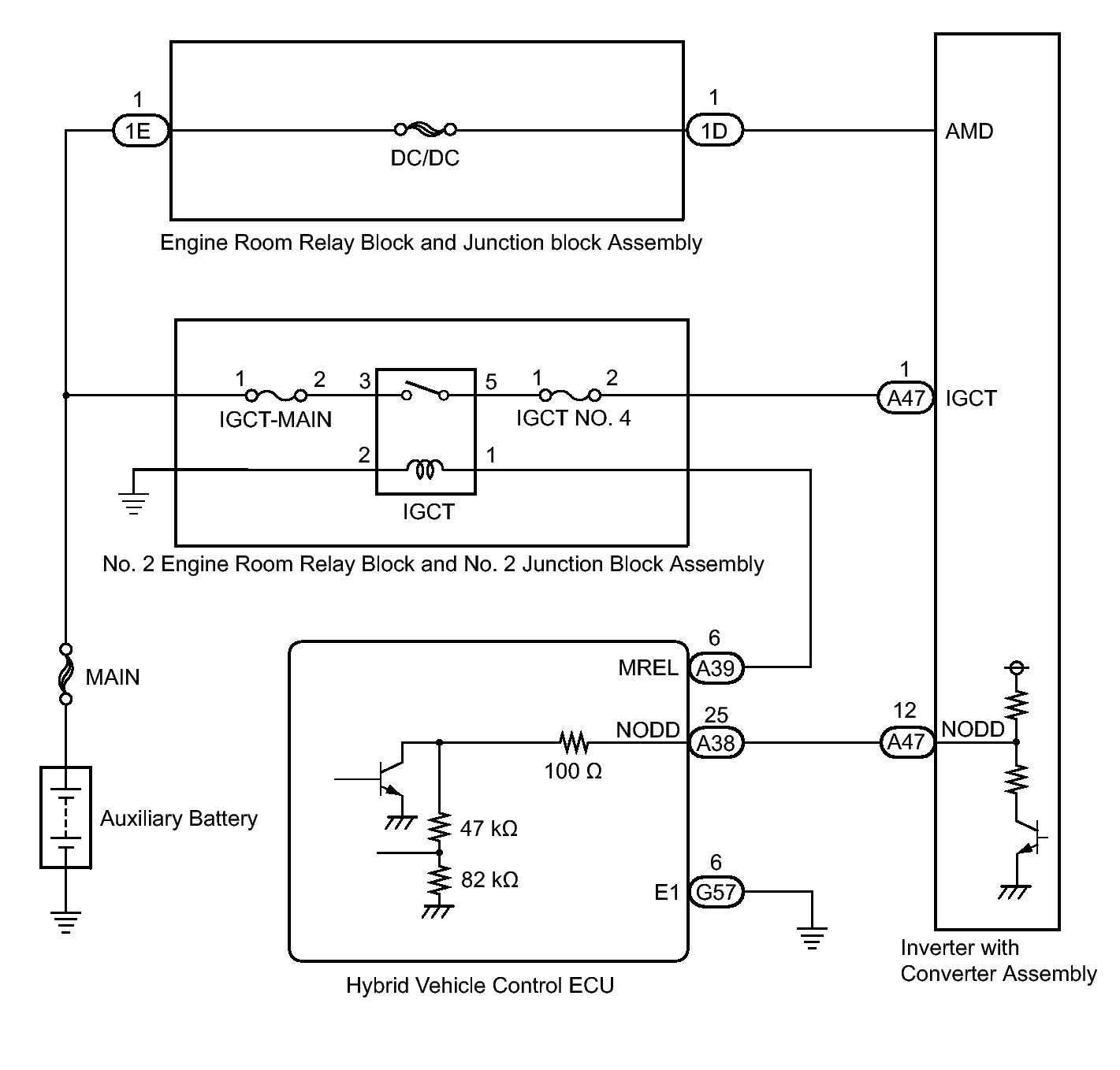

Fig 1: DC / DC Converter Status Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to the wiring diagram for DTC P0AA6-526. Refer to WIRING DIAGRAM .
