DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low [12/2014 - ]: Wiring Diagram

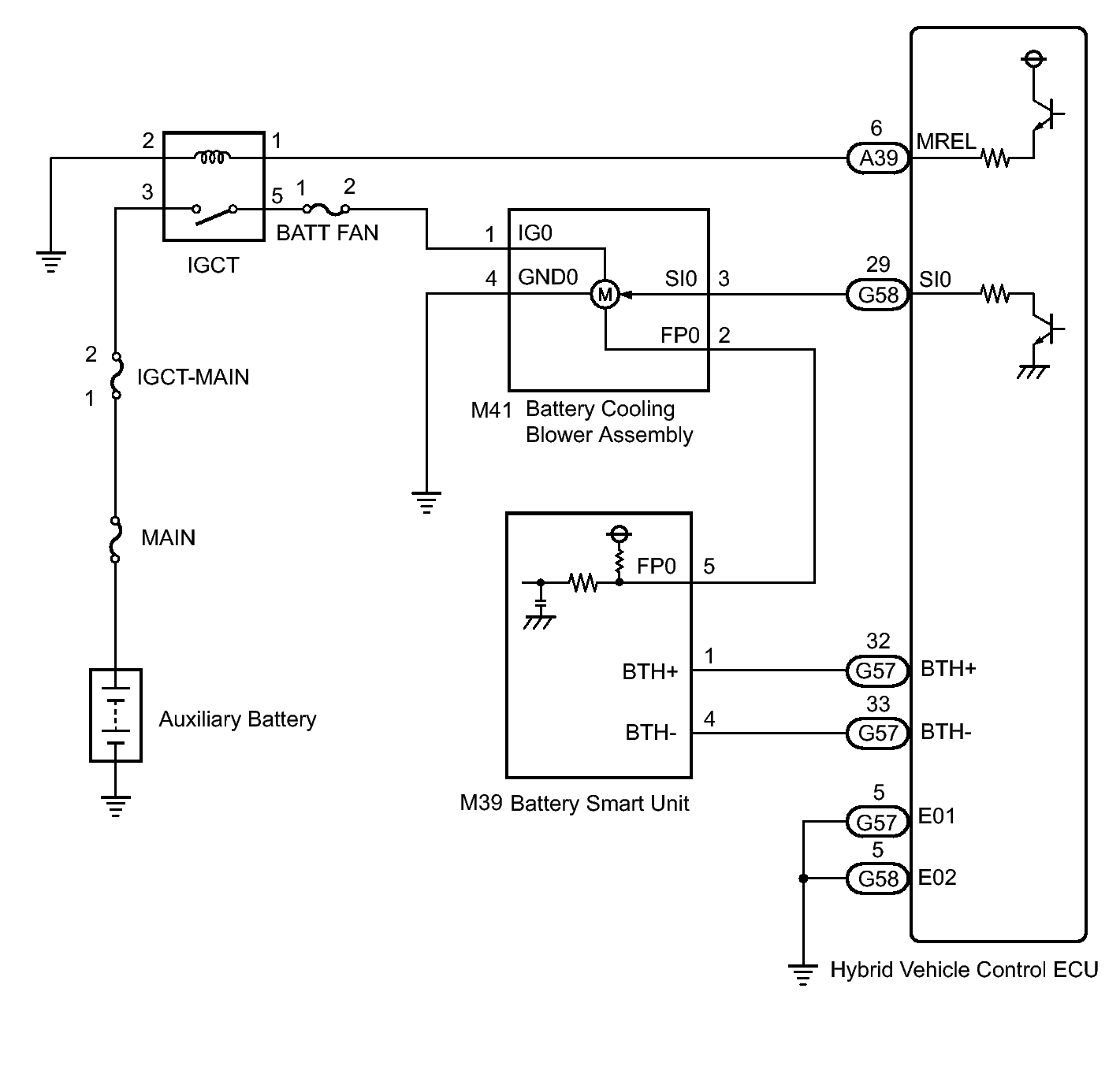

Fig 1: Hybrid Battery Pack Cooling Fan 1 Control Circuit Wiring Diagram
GTY481032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
