Components [12/2014 - ]: Illustration

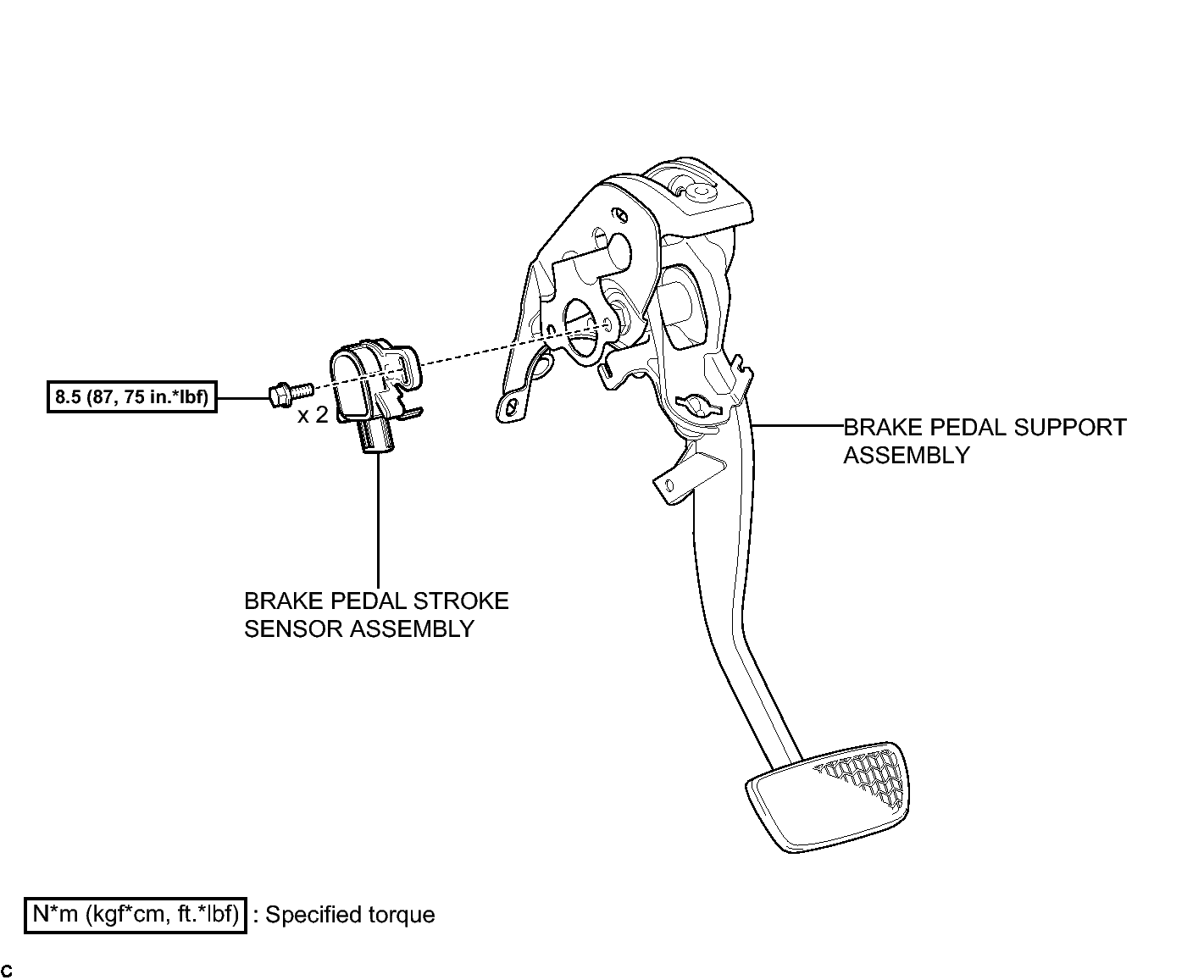

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
GTY334826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

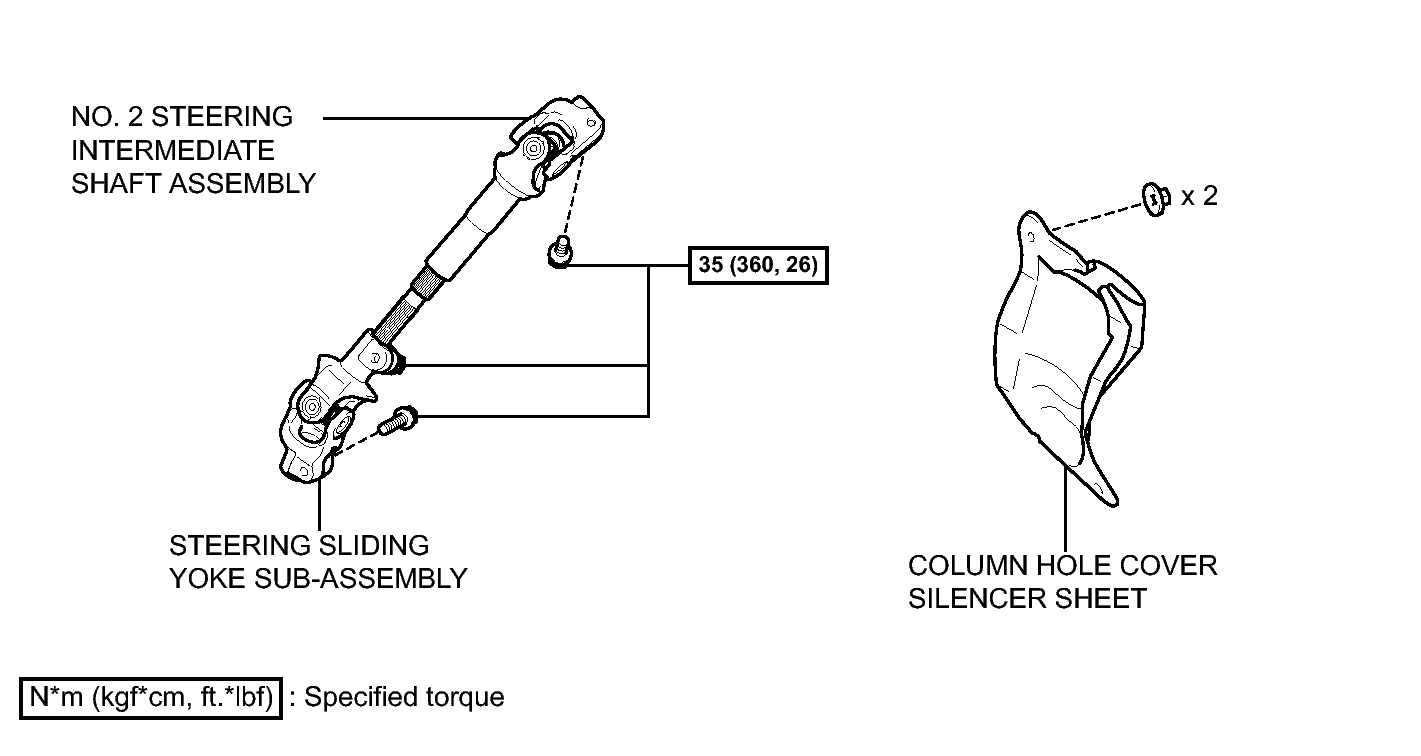

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 4)
GTY334124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

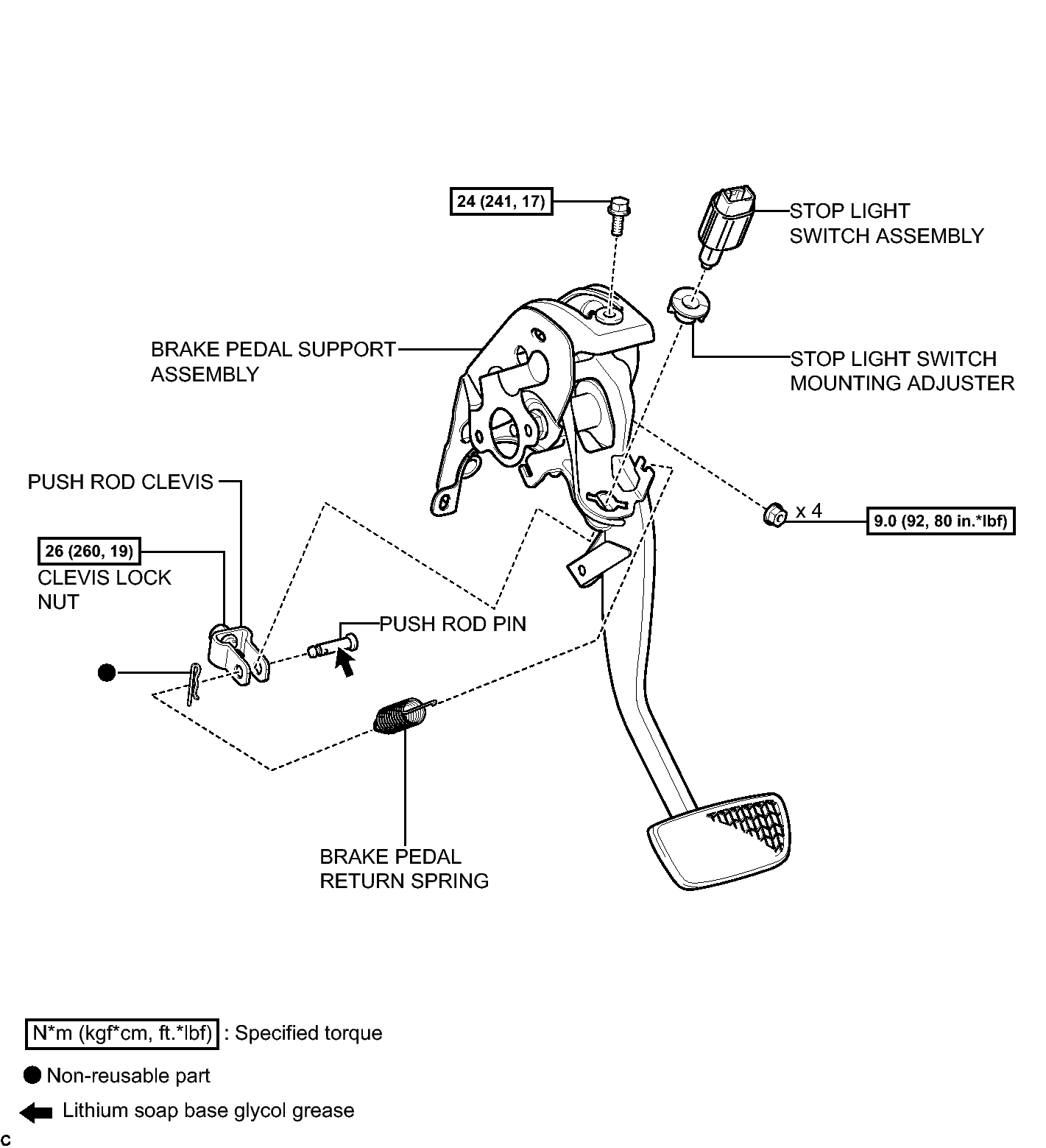

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (3 Of 4)
GTY336751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

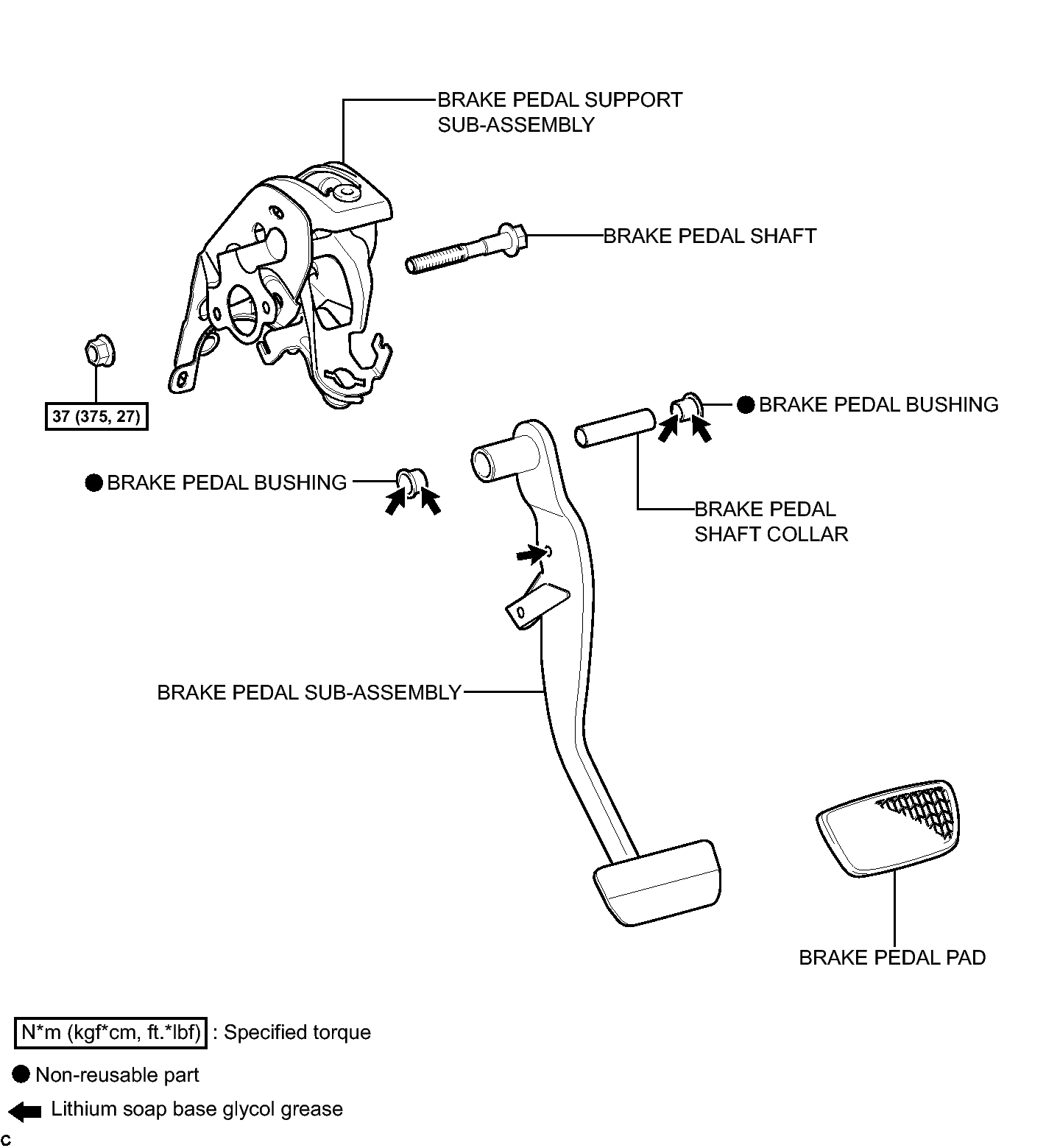

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (4 Of 4)
GTY333092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
