Components [12/2014 - ]: Illustration

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (1 Of 3)
GTY336653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

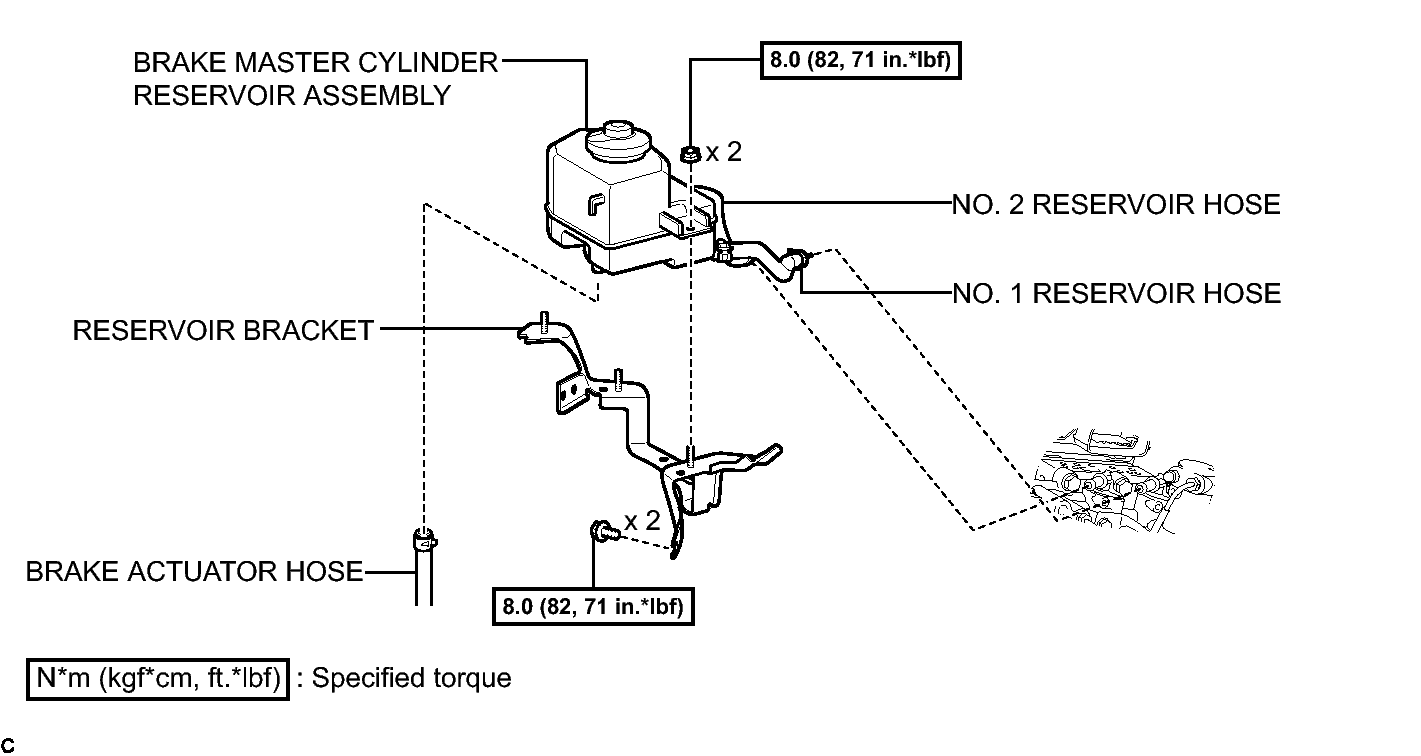

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 3)
GTY326142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

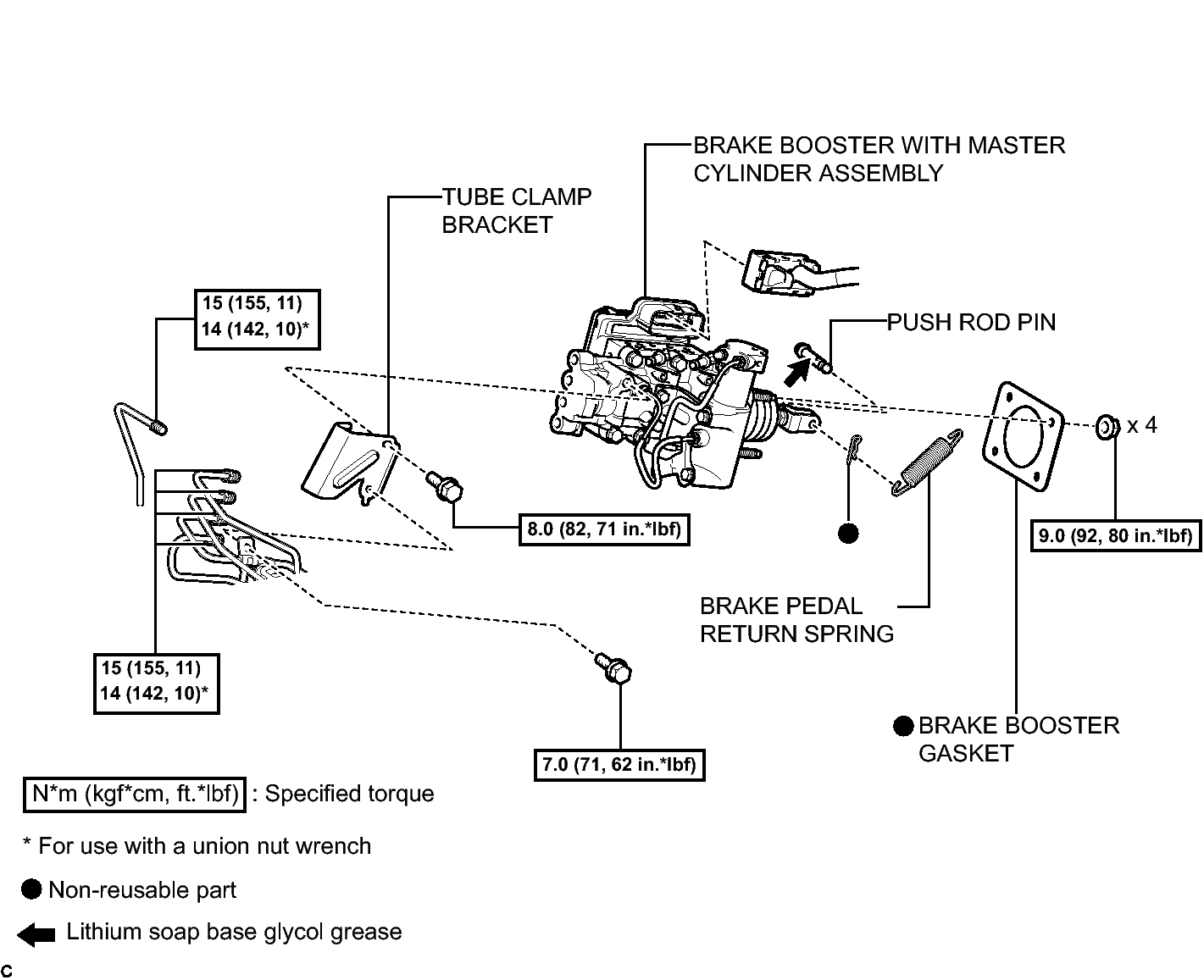

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 3)
GTY474016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
