Components [12/2014 - ]: Illustration

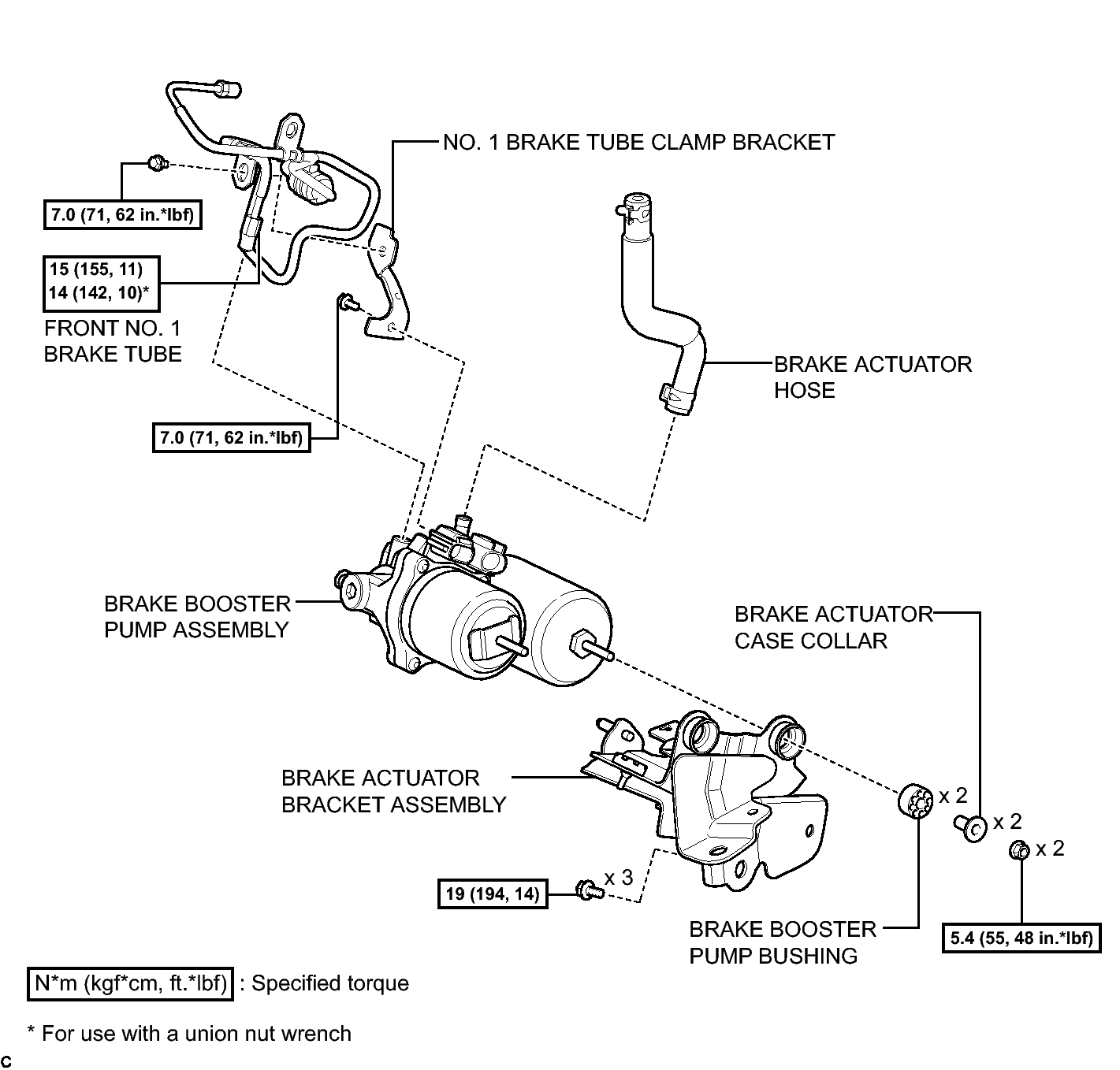

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (1 Of 2)
GTY474800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (2 Of 2)
GTY343545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
