Components [12/2013 - 11/2016]: Illustration

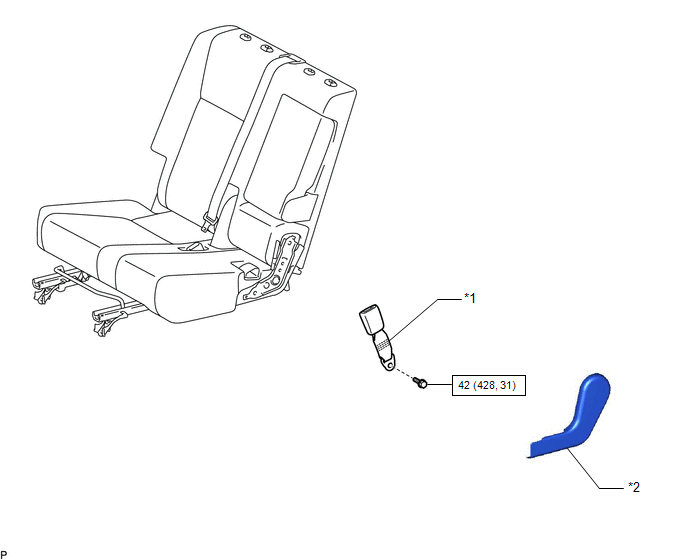

Fig 1: Rear Center Seat Inner Belt Assembly (for Rear No. 1 Seat) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | REAR SEAT INNER BELT ASSEMBLY | *2 | REAR SEAT REAR CUSHION MOULDING RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
