Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 7

  2. REMOVE NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

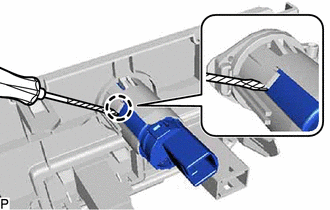

    1. Using a screwdriver, disengage the claw and remove the rear No. 1 power outlet socket assembly as shown in the illustration.
      GTY442704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  4. REMOVE REAR POWER OUTLET SOCKET COVER

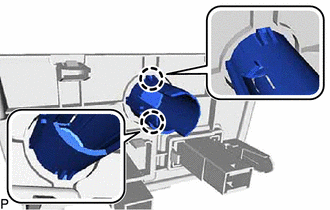

    1. Disengage the 2 claws and remove the rear power outlet socket cover.
      GTY437639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
