Removal [11/2016 - ]: Procedure

  1. REMOVE REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 7

  2. REMOVE NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE USB CHARGER SOCKET

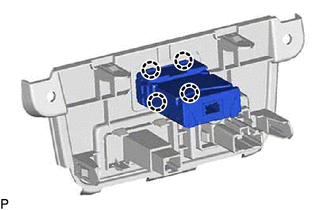

    1. Disengage the 4 claws to remove the USB charger socket.
      GTY706092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
