Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 12

  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 16

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  7. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 23

  10. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 31

  11. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 32

  12. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 33

  13. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 40

  17. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  18. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  19. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 43

  20. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 48

  21. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

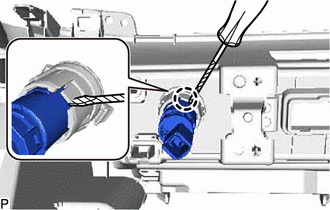

    1. Using a screwdriver, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

      GTY433085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
  22. REMOVE NO. 1 POWER OUTLET SOCKET COVER

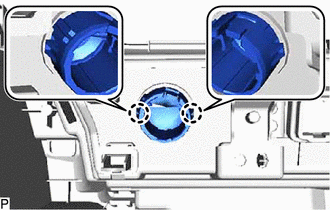

    1. Disengage the 2 claws and remove the No. 1 power outlet socket cover.
      GTY437644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
