Components [12/2013 - ]: Illustration

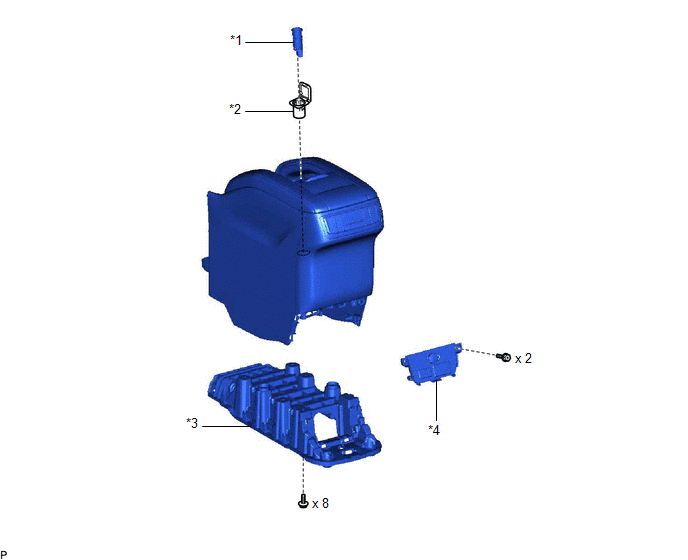

Fig 1: Center Power Outlet Socket Replacement Components
GTY455889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER POWER OUTLET SOCKET ASSEMBLY *2 CENTER POWER OUTLET SOCKET COVER
*3 NO. 1 TRASH BOX RETAINER SUPPORT *4 NO. 2 CONSOLE BOX HOLE COVER
