Reassembly [12/2013 - ]: Procedure

  1. INSTALL NO. 2 CENTER SUPPORT BEARING ASSEMBLY (for Front Side)
    1. Set the No. 2 center support bearing assembly on the intermediate shaft assembly as shown in the illustration.
      GTY441137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front - -
      NOTE:

      Make sure to install the No. 2 center support bearing assembly in the correct position.

    2. Install a new washer to the intermediate shaft assembly.
    3. Align the matchmarks on the intermediate shaft assembly and universal joint flange.
      GTY452878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    4. Using SST to hold the universal joint flange, press the No. 2 center support bearing assembly into the position by tightening a new nut and the washer.
      • SST: 09330-00021
      GTY441497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold

      Torque: 181.5 N*m (1851 kgf*cm, 134 ft.*lbf)

    5. Loosen the nut.
    6. Tighten the nut again.

      Torque: 68.7 N*m (701 kgf*cm, 51 ft.*lbf)

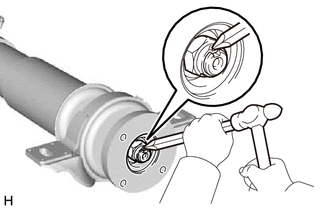

    7. Using a chisel and a hammer, stake the nut.
      GTY452429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 CENTER SUPPORT BEARING ASSEMBLY (for Rear Side)
    1. Set the No. 2 center support bearing assembly on the intermediate shaft assembly as shown in the illustration.
      GTY425231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rear - -
      NOTE:

      Make sure to install the No. 2 center support bearing assembly in the correct position.

    2. Install a new washer to the intermediate shaft assembly.
    3. Align the matchmarks on the intermediate shaft assembly and universal joint flange.
      GTY442686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    4. Using SST to hold the universal joint flange, press the No. 2 center support bearing assembly into the position by tightening a new nut and the washer.
      • SST: 09330-00021

      Torque: 181.5 N*m (1851 kgf*cm, 134 ft.*lbf)

      GTY442040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
    5. Loosen the nut.
    6. Tighten the nut again.

      Torque: 68.7 N*m (701 kgf*cm, 51 ft.*lbf)

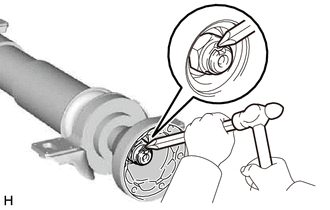

    7. Using a chisel and a hammer, stake the nut.
      GTY433121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INTERMEDIATE SHAFT ASSEMBLY

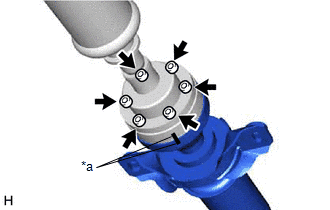

    1. Align the matchmarks on the rear propeller shaft assembly and universal joint flange, and then install the 6 cross groove joint set bolts, 2 universal joint washers.
      GTY444971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Using a 6 mm hexagon socket wrench, temporarily tighten the 6 cross groove joint set bolts.
  4. INSTALL PROPELLER SHAFT ASSEMBLY
    1. Align the matchmarks on the propeller shaft assembly and universal joint flange.
      GTY428953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Install the propeller shaft assembly with the 4 bolts, 4 washers and 4 nuts.

      Torque: 73.5 N*m (749 kgf*cm, 54 ft.*lbf)

      HINT:

      Install the washers on the same side as the bolts.

    3. Check that each joint of the propeller with center bearing shaft assembly is facing the direction shown in the illustration.
      GTY433120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
