Home >> Toyota >> 2015 >> Highlander XLE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Turn Signal And Hazard Warning Light

Turn Signal And Hazard Warning Light

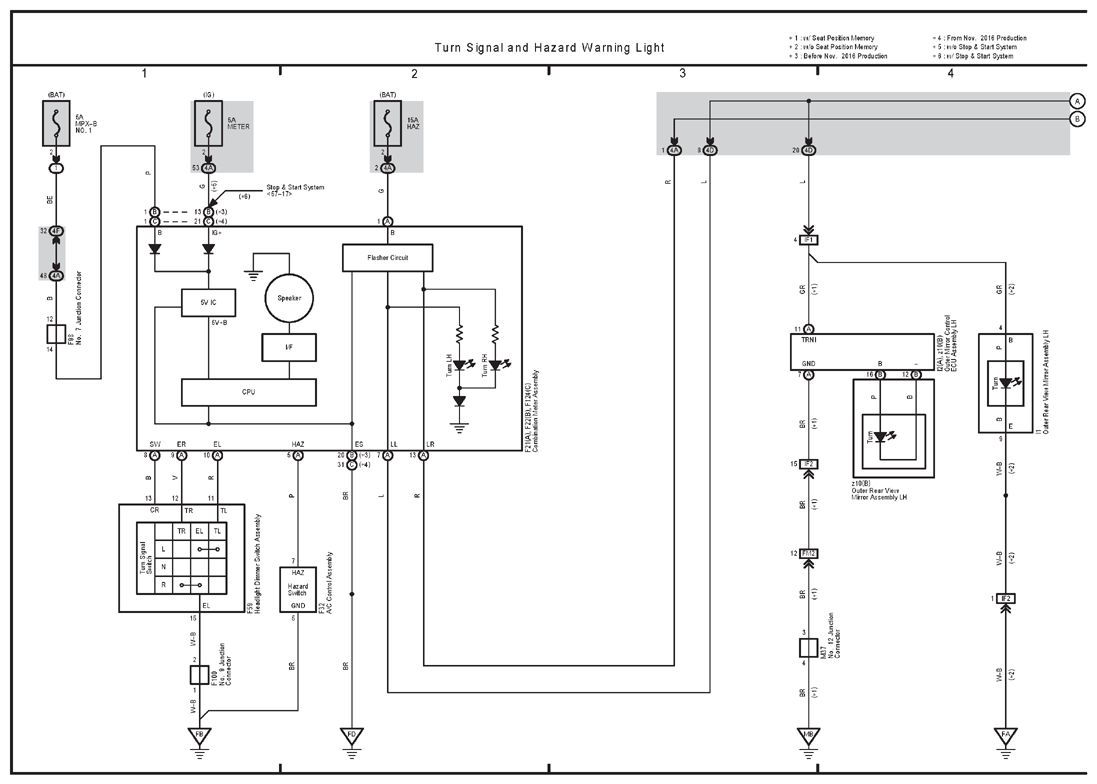

G12240324

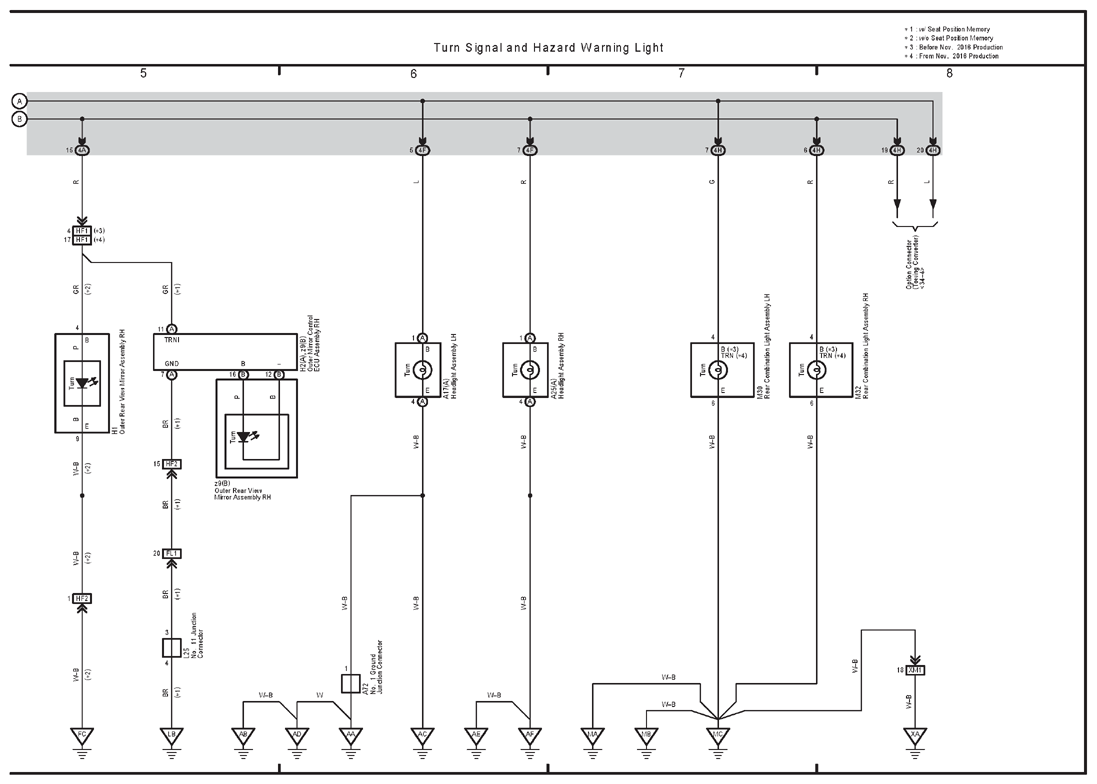

G12240325
