OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>

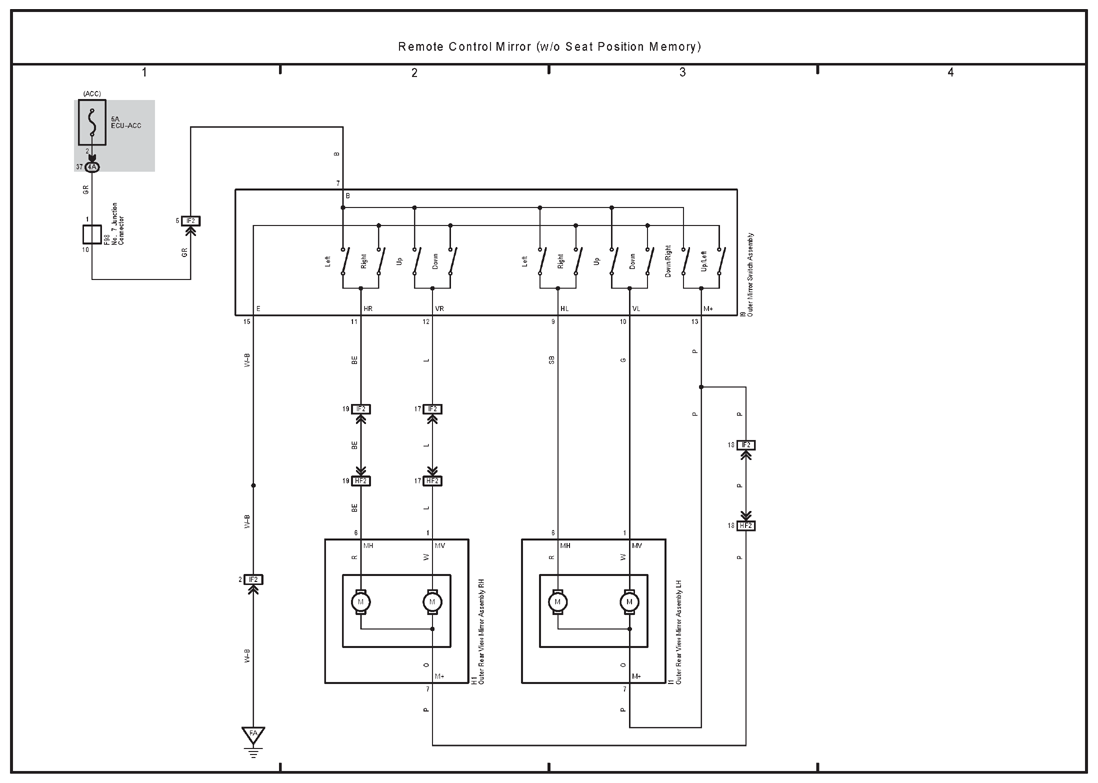

Remote Control Mirror (W/O Seat Position Memory)
Remote Control Mirror (W/O Seat Position Memory)
