OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>

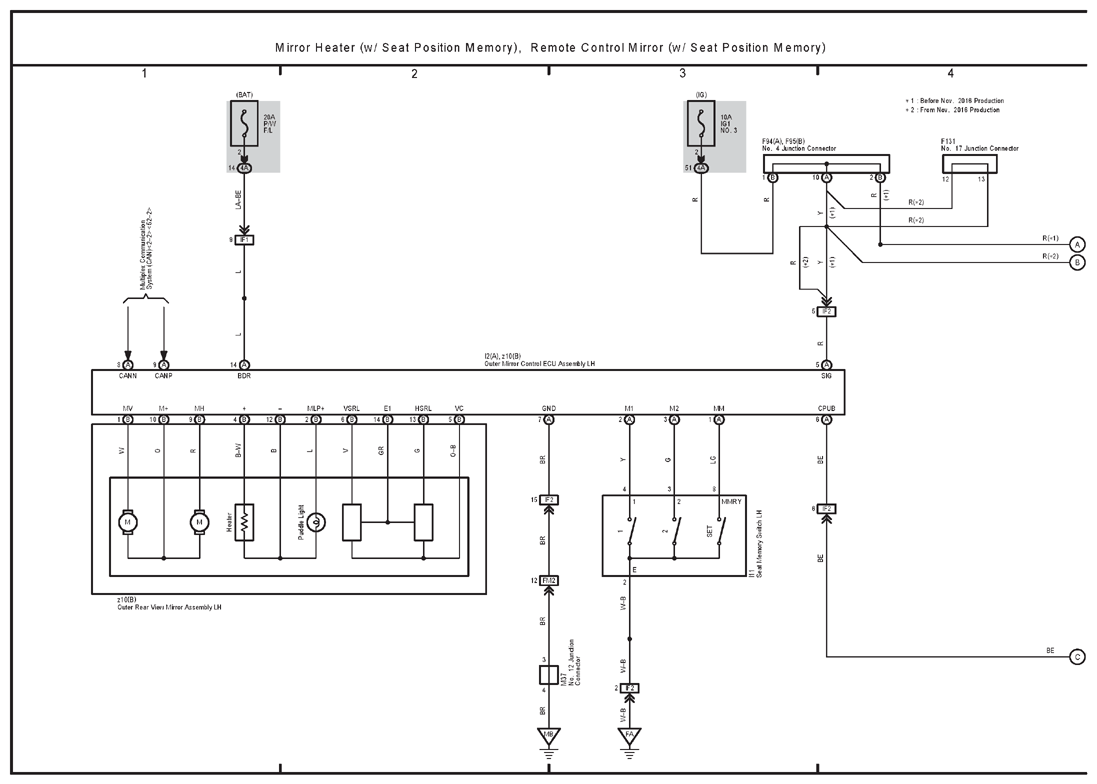

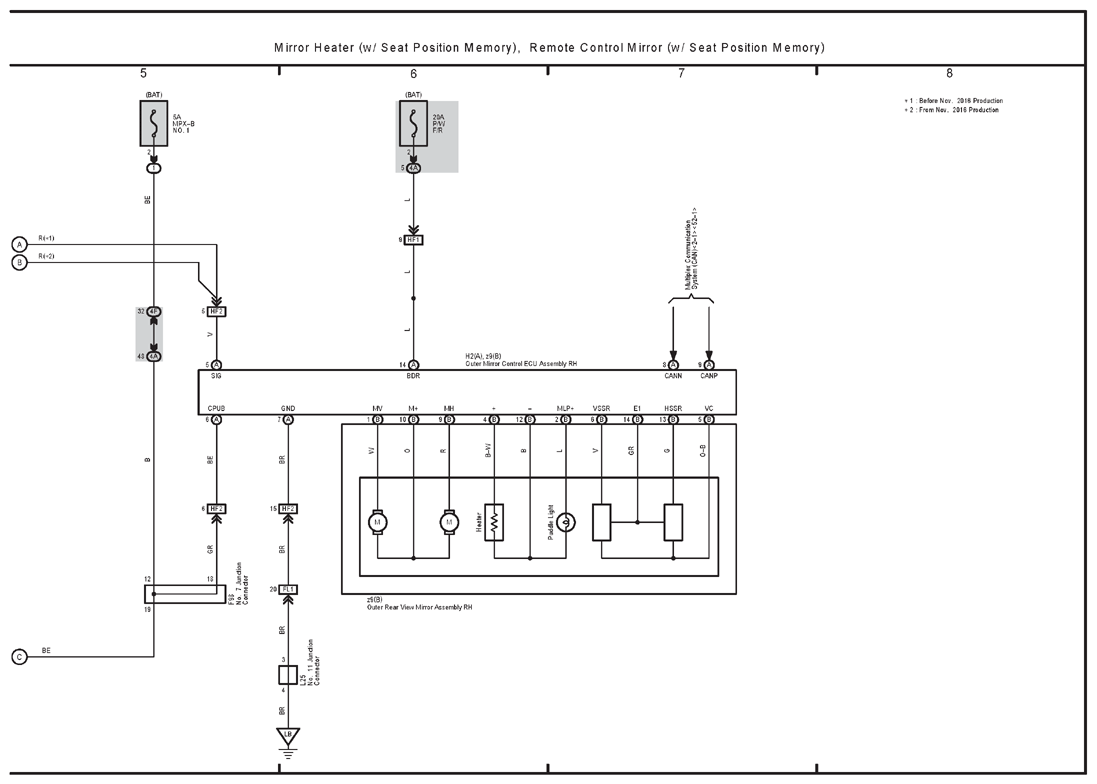

Mirror Heater (W/Seat Position Memory), Remote Control Mirror (W/Seat Position Memory)
Mirror Heater (W/Seat Position Memory), Remote Control Mirror (W/Seat Position Memory)
