Engine Control (2GR-FKS), Cruise Control (2GR-FKS), Electronically Controlled Transmission And A/T Indicator (2GR-FKS)

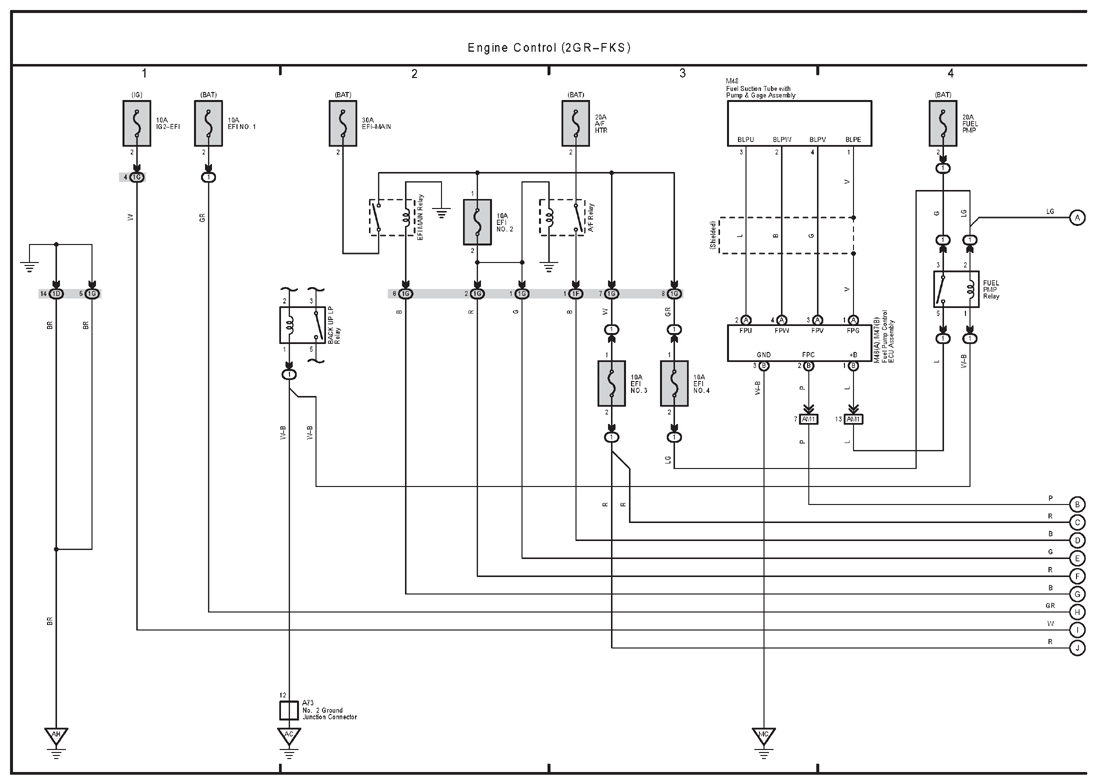

G12240422

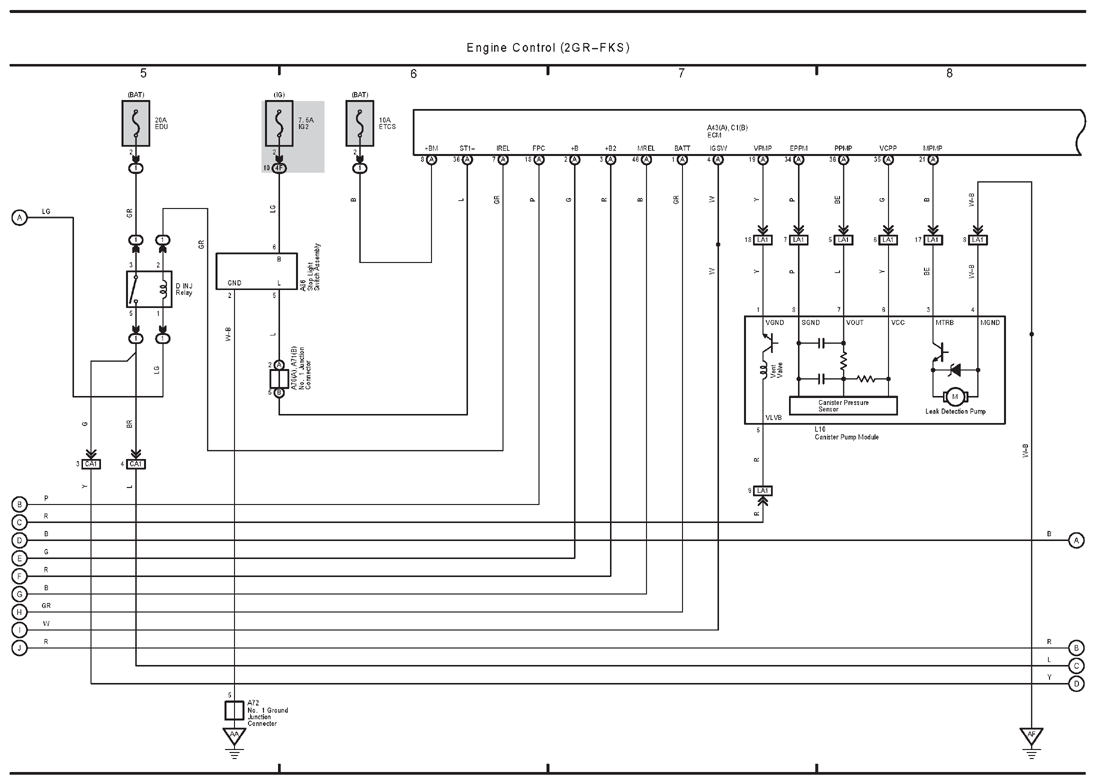

G12240423

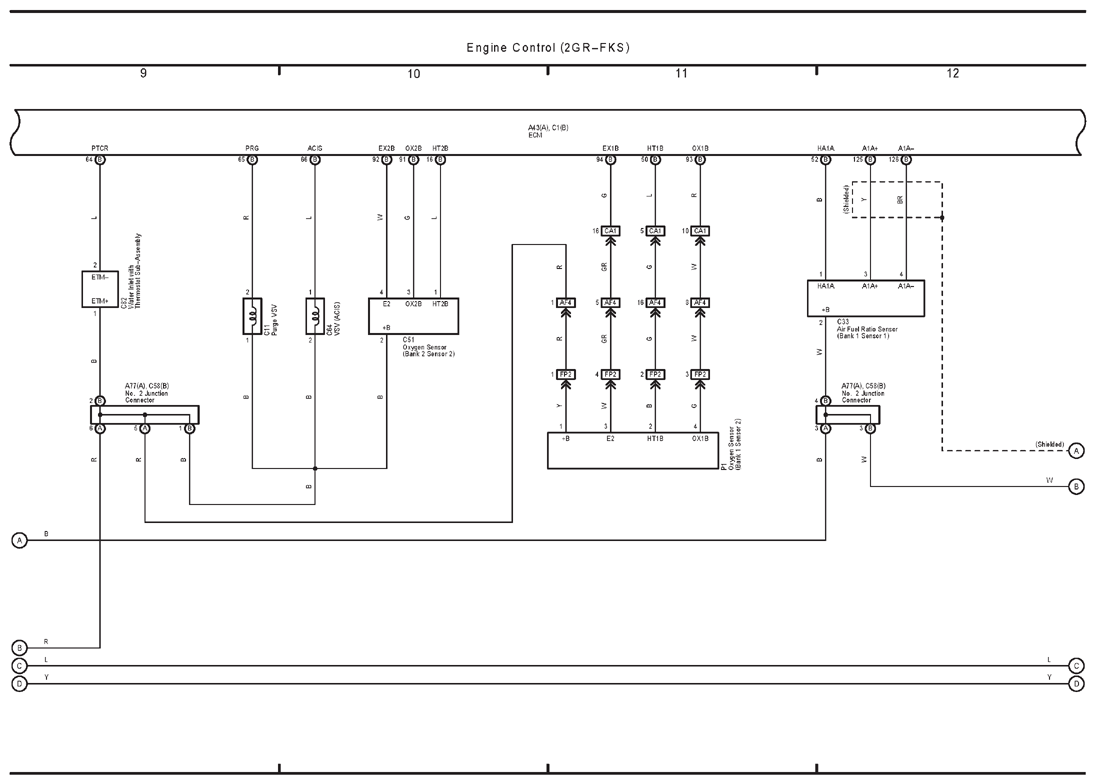

G12240424

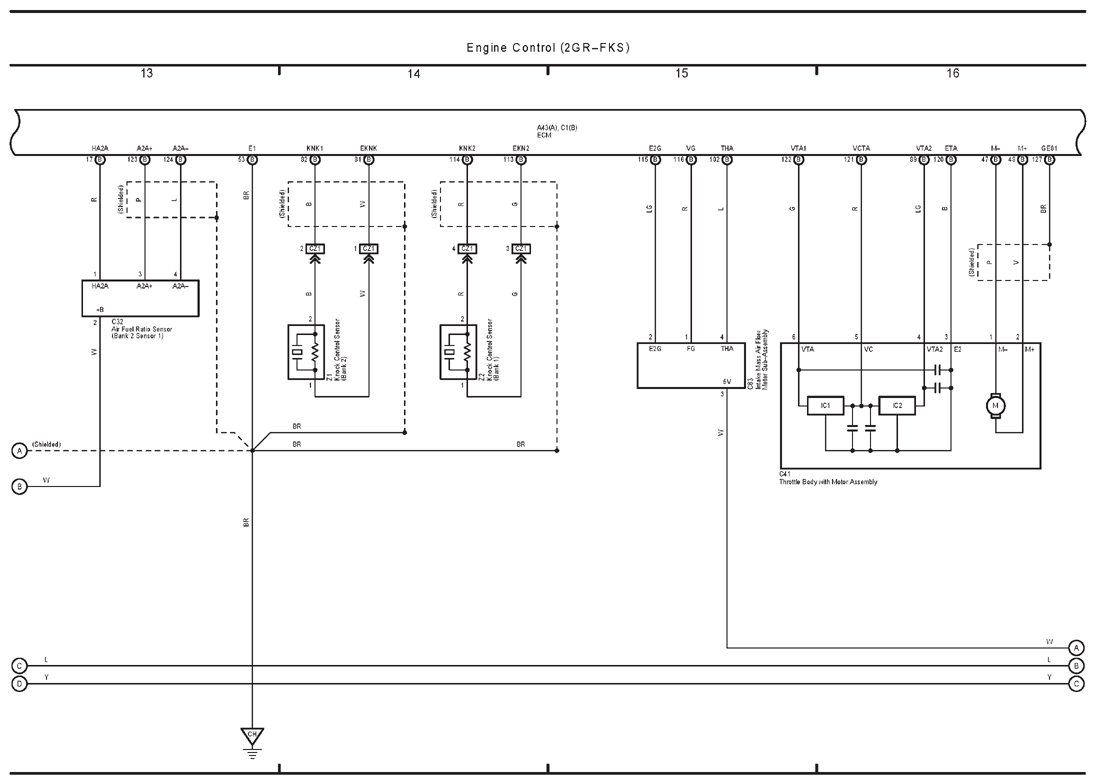

G12240425

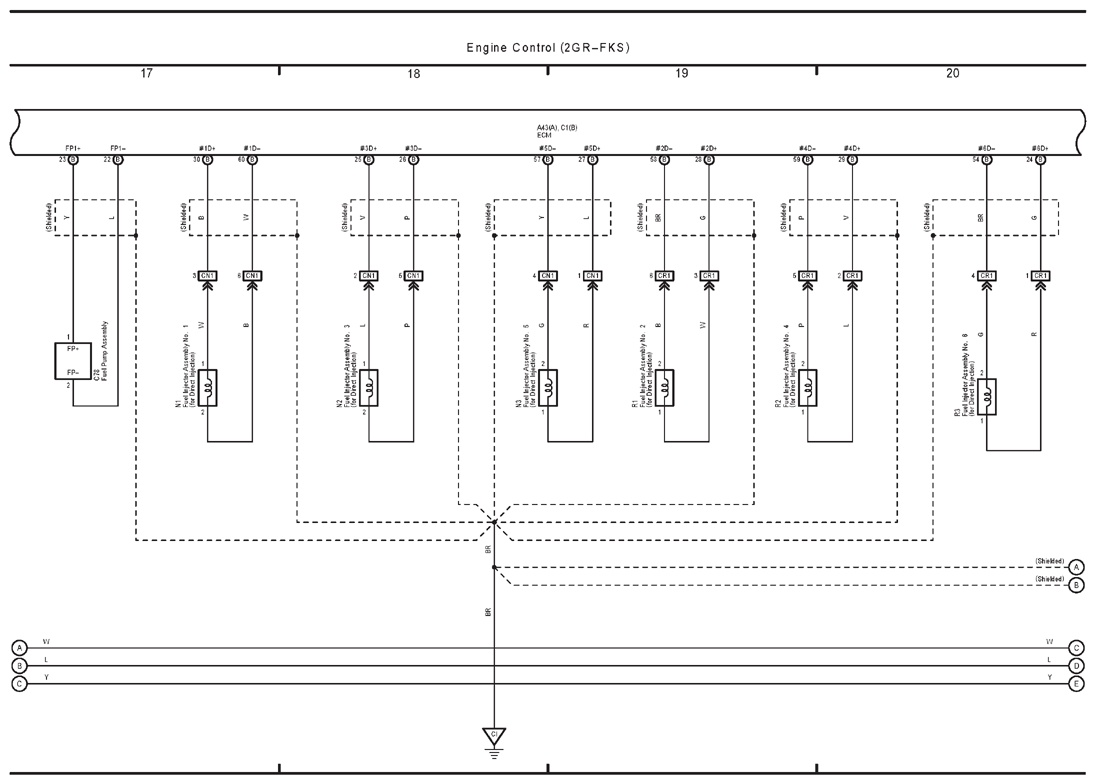

G12240426

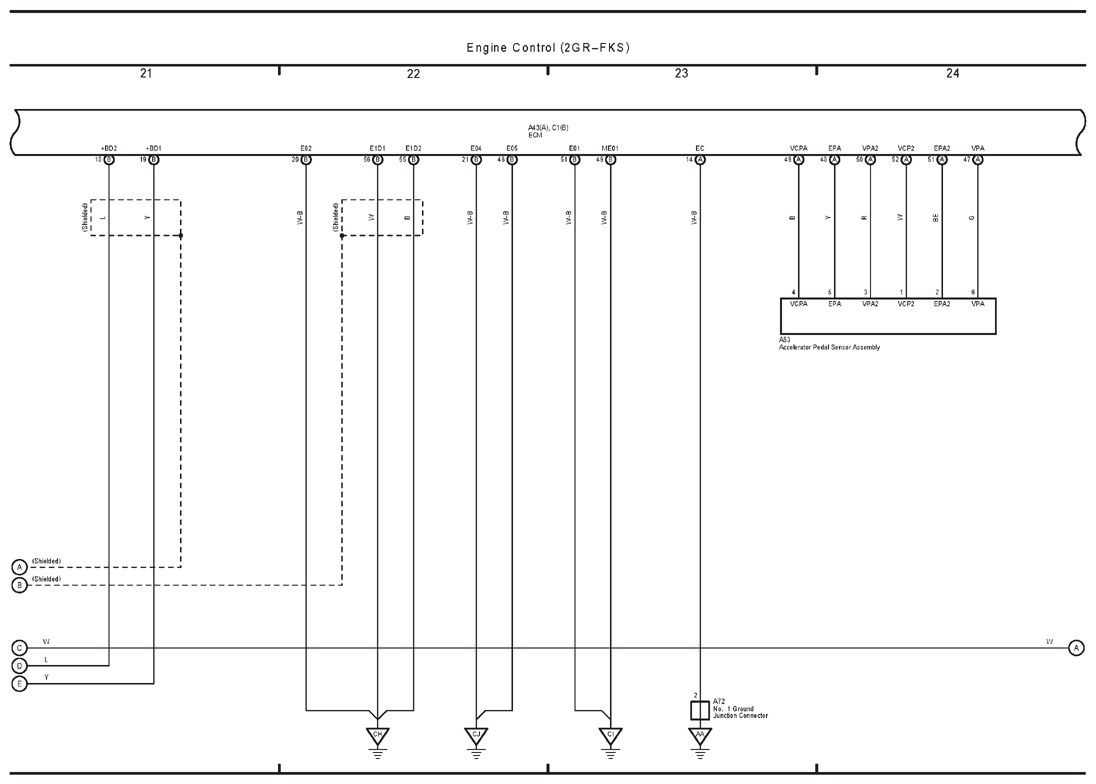

G12240427

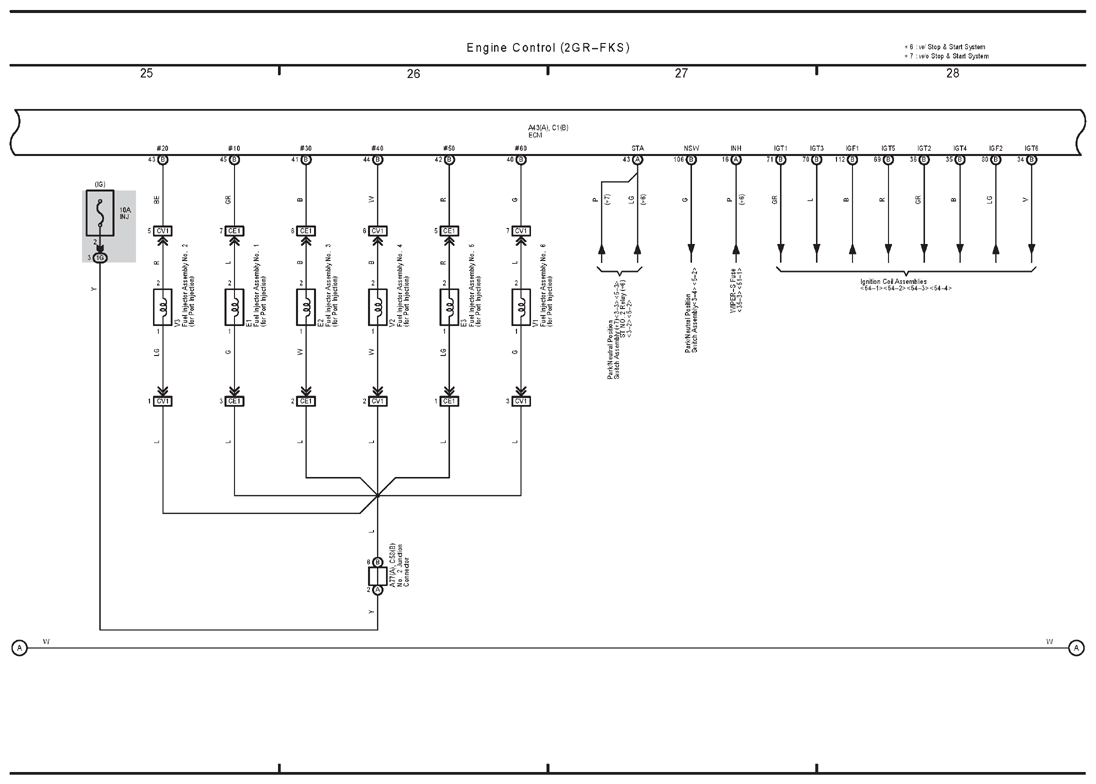

G12240428

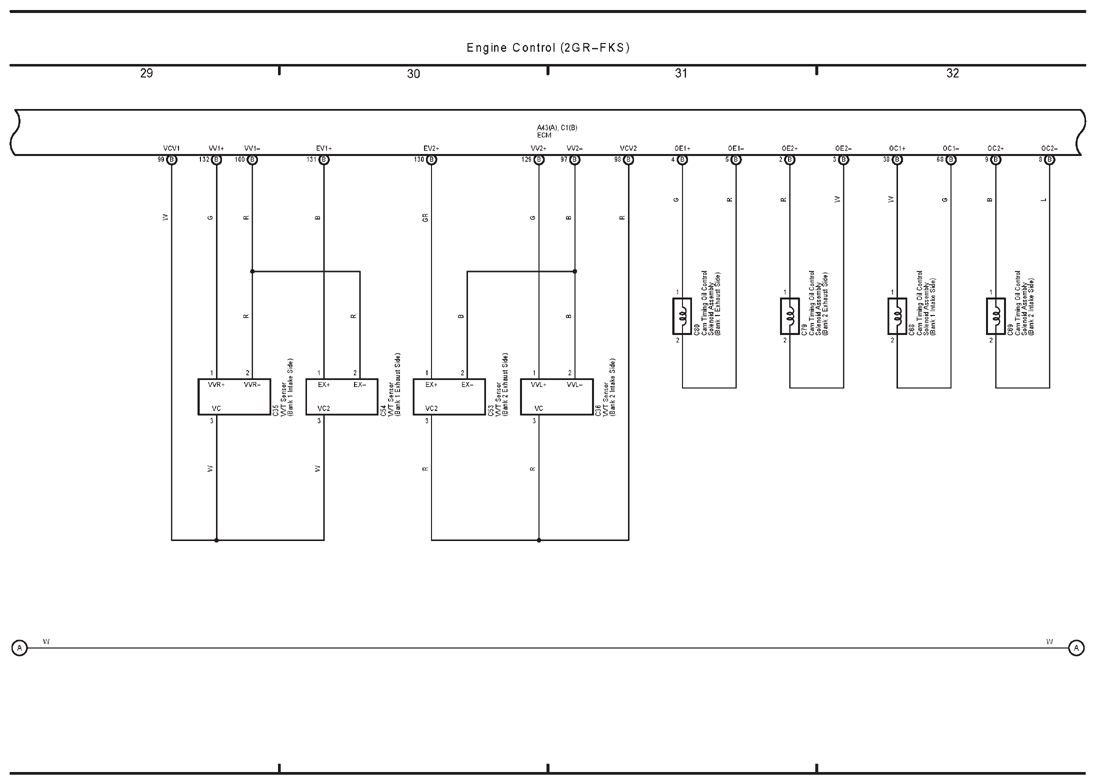

G12240429

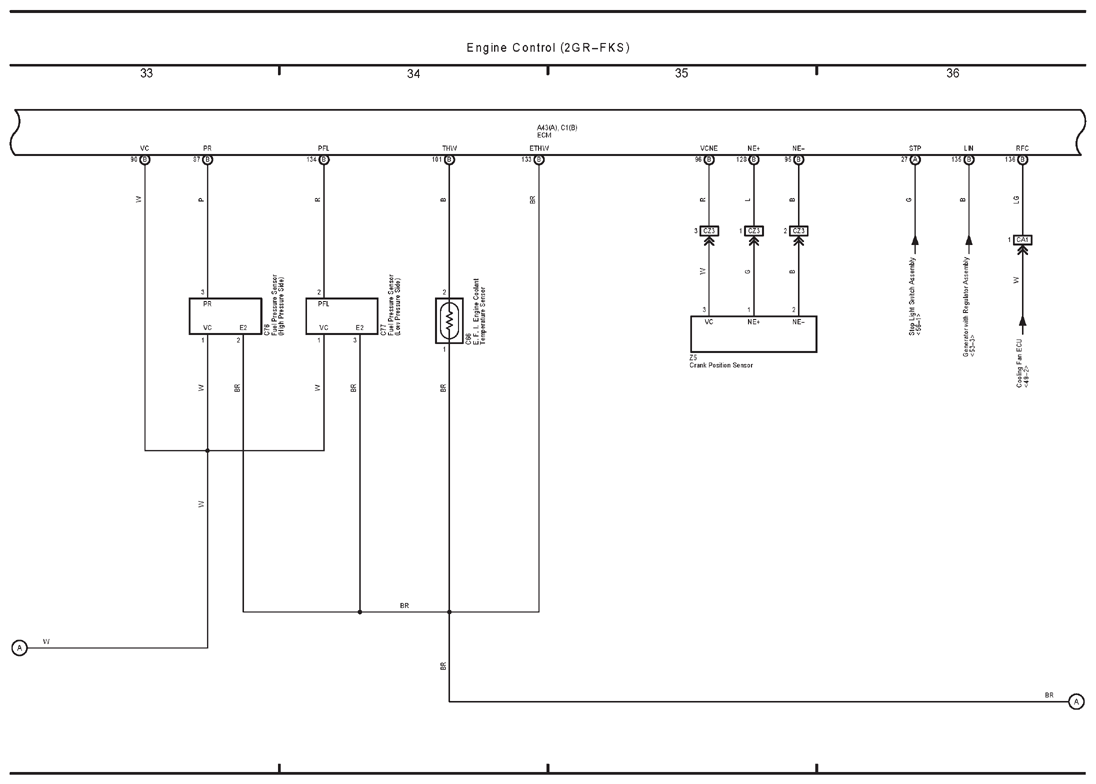

G12240430

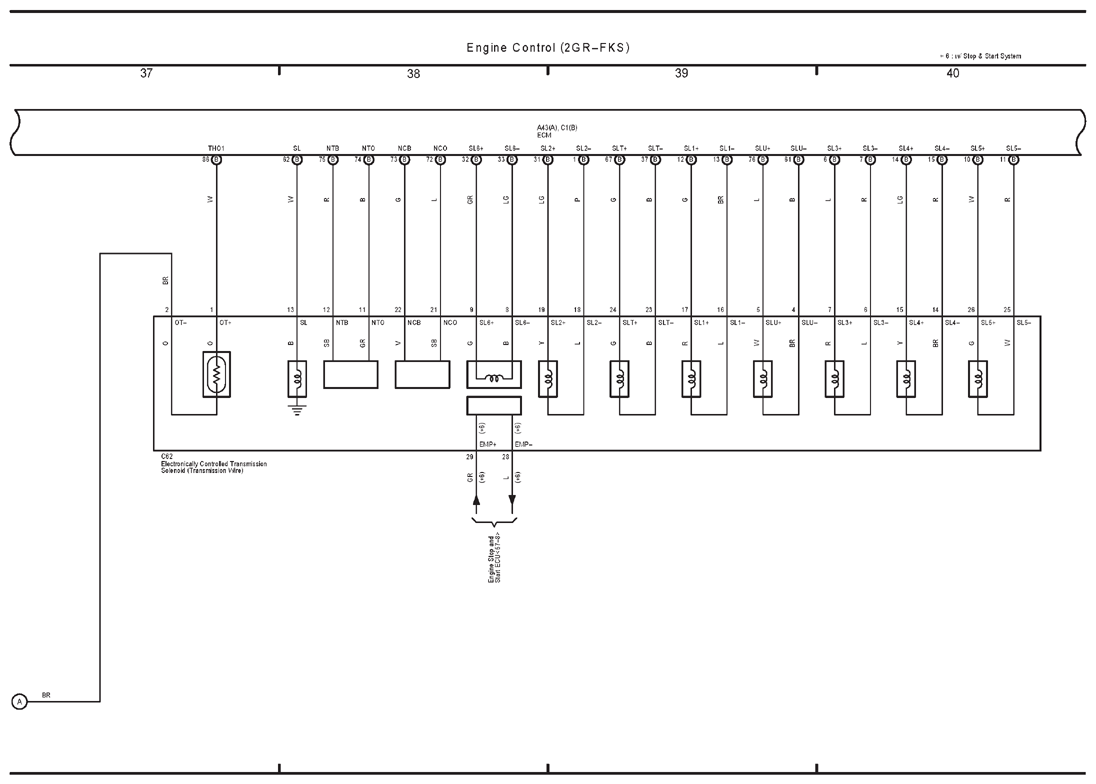

G12240431

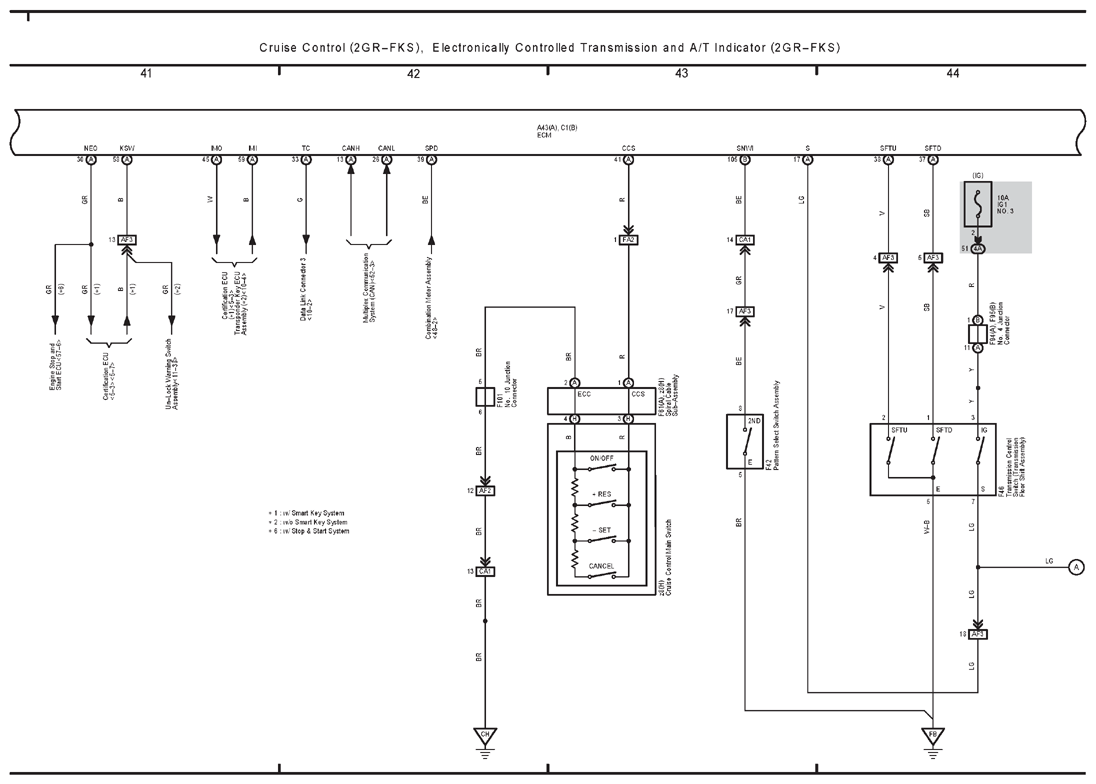

G12240432

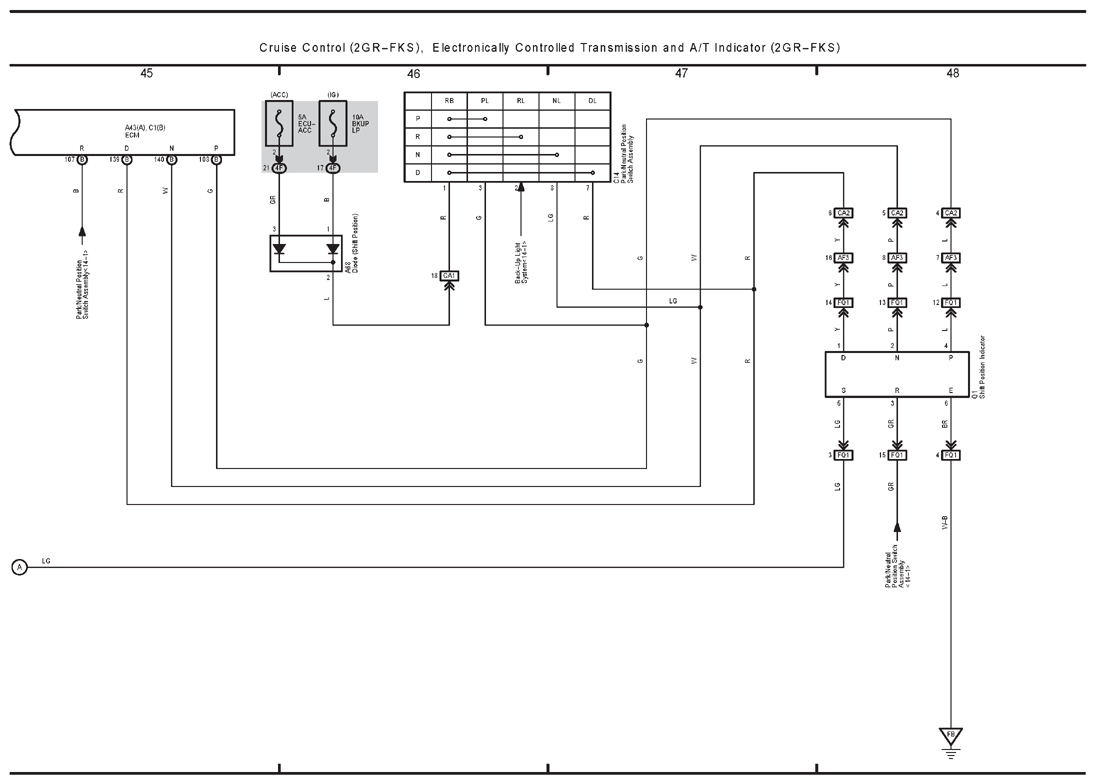

G12240433

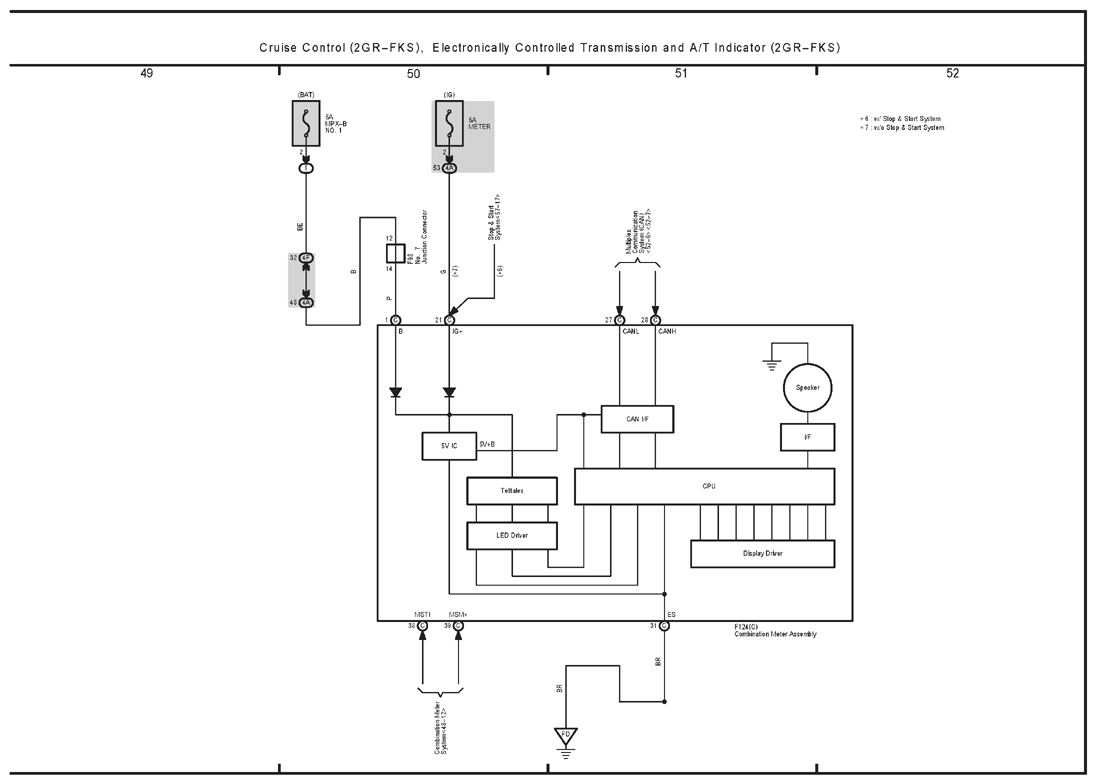

G12240434
