Engine Control (2GR-FE), Electronically Controlled Transmission And A/T Indicator (2GR-FE), Electronically Controlled Transmission And A/T Indicator (2GR-FE), Cruise Control (2GR-FE), Dynamic Radar Cruise Control (2GR-FE), Pre-Collision System (2GR-FE), Cruise Control (2GR-FE), Dynamic Radar Cruise Control (2GR-FE), Pre-Collision System (2GR-FE)

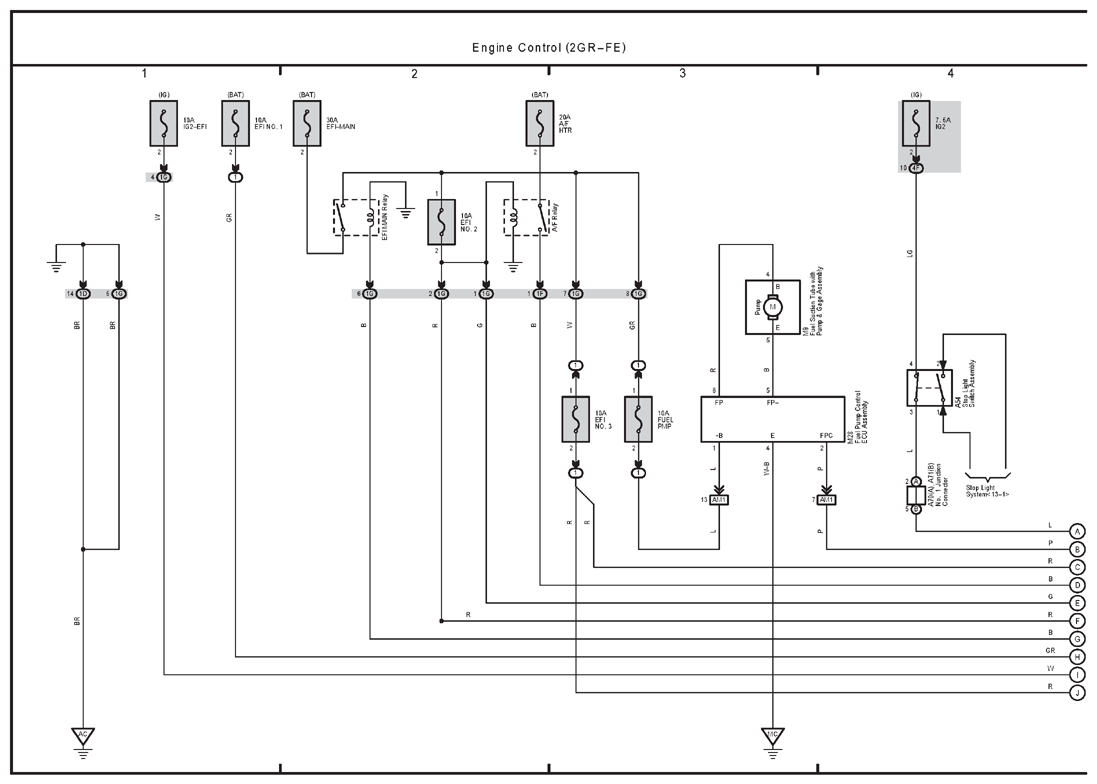

G12240447

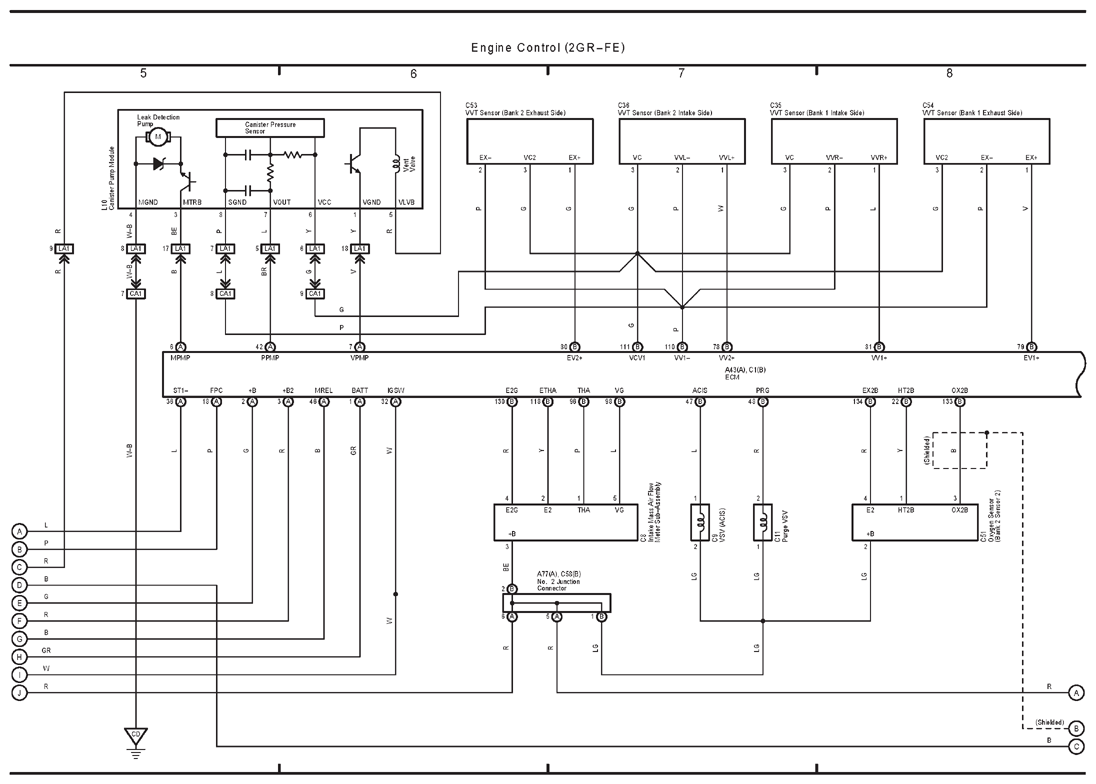

G12240448

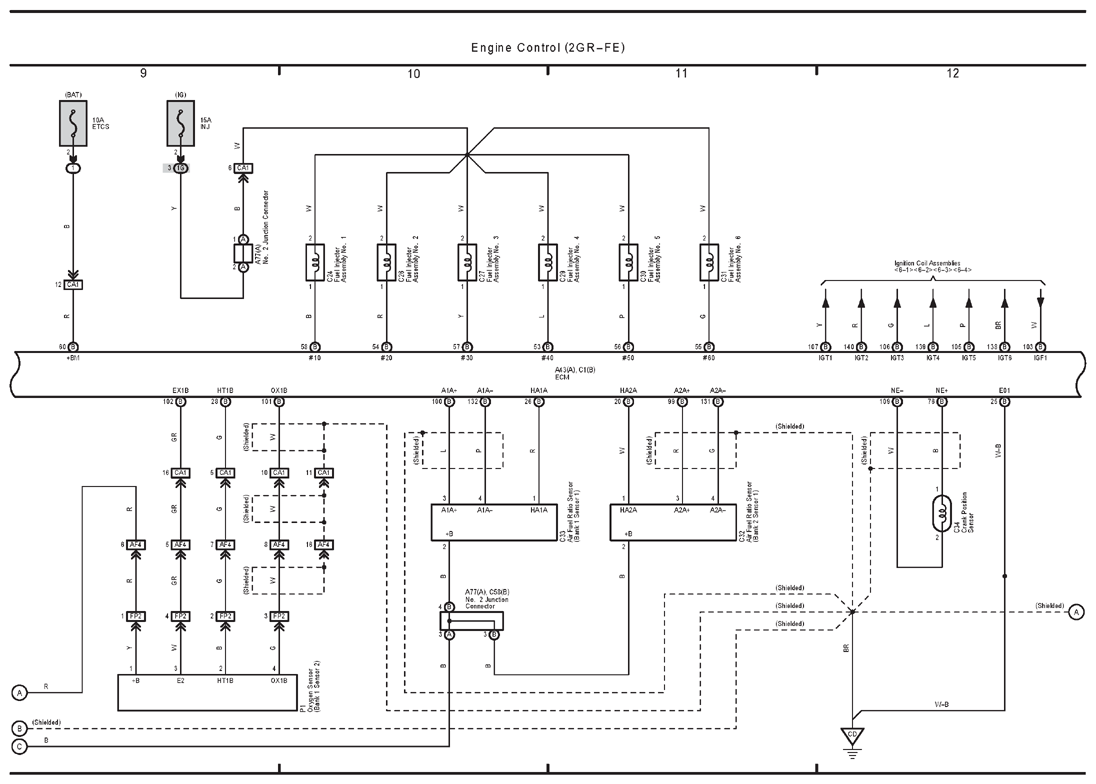

G12240449

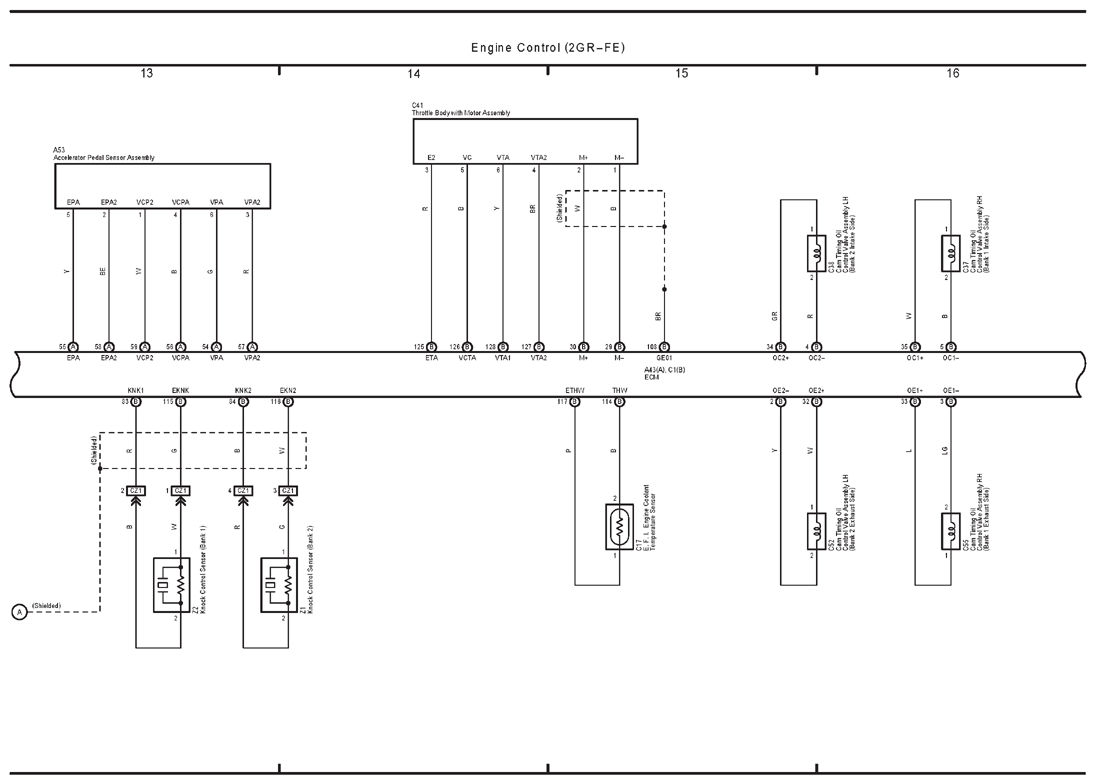

G12240450

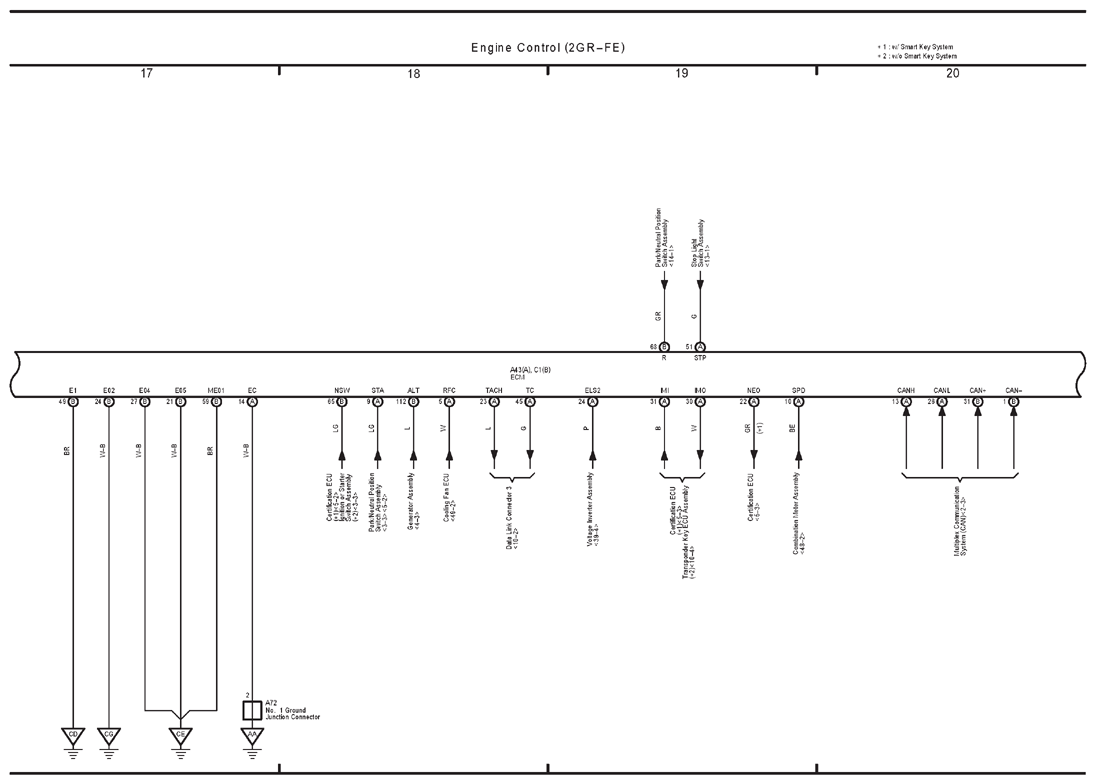

G12240451

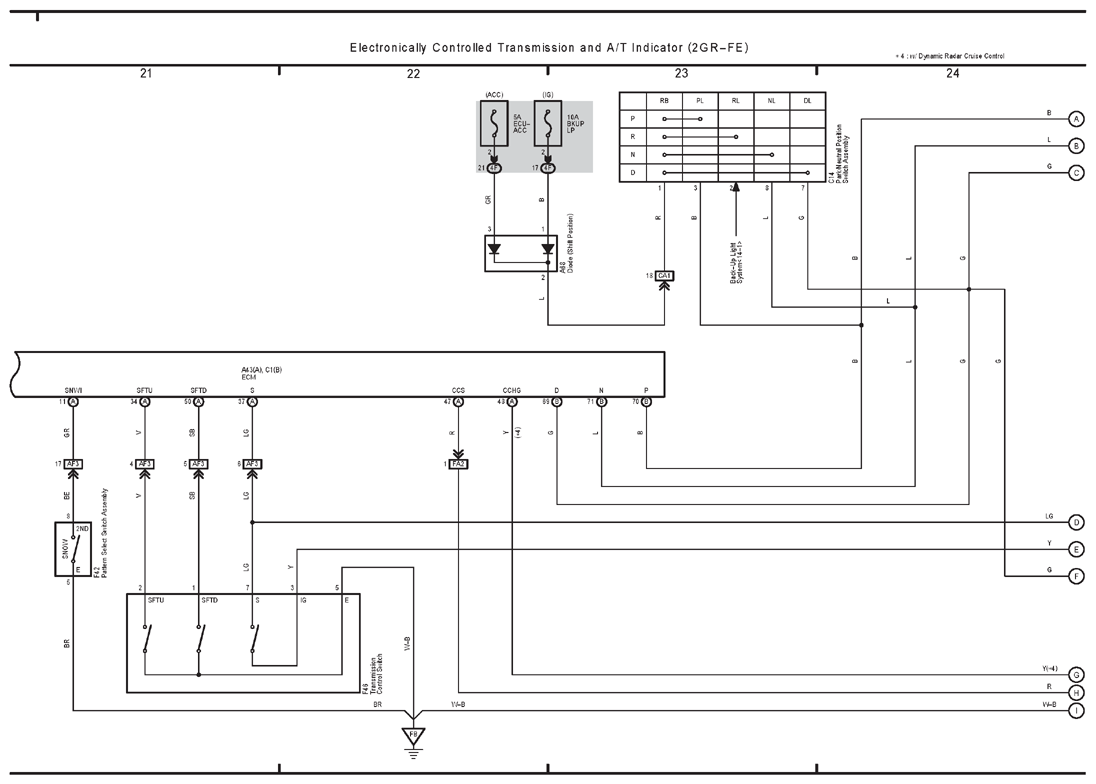

G12240452

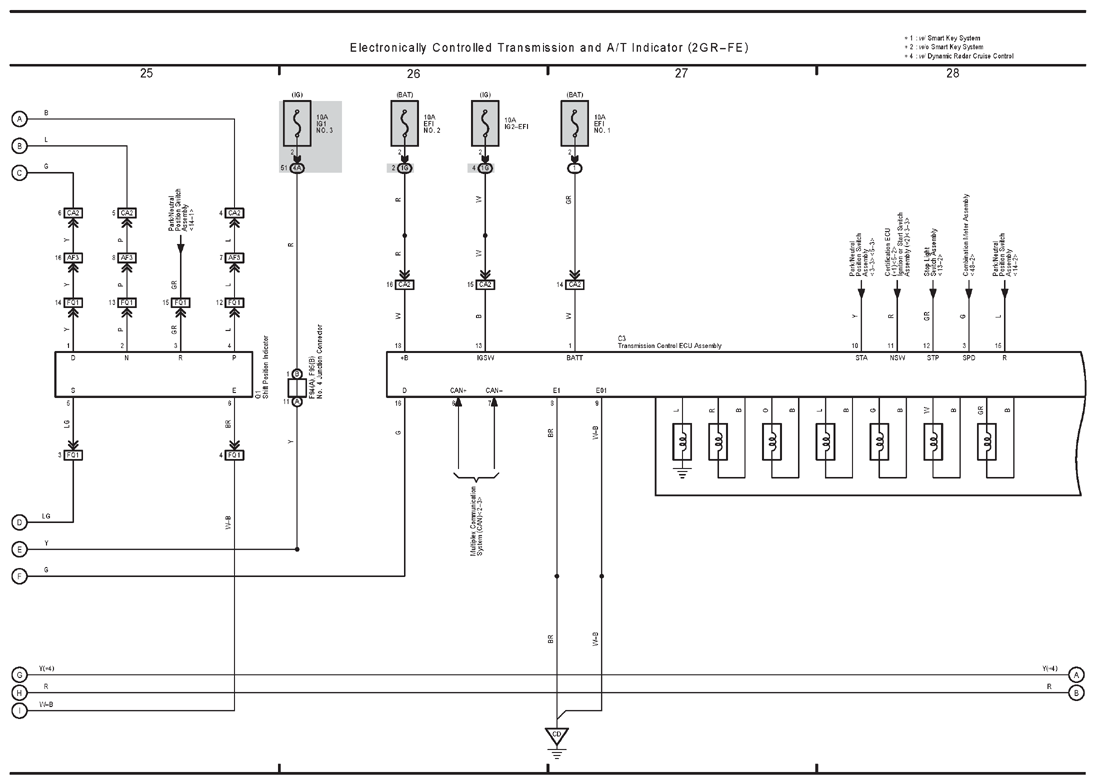

G12240453

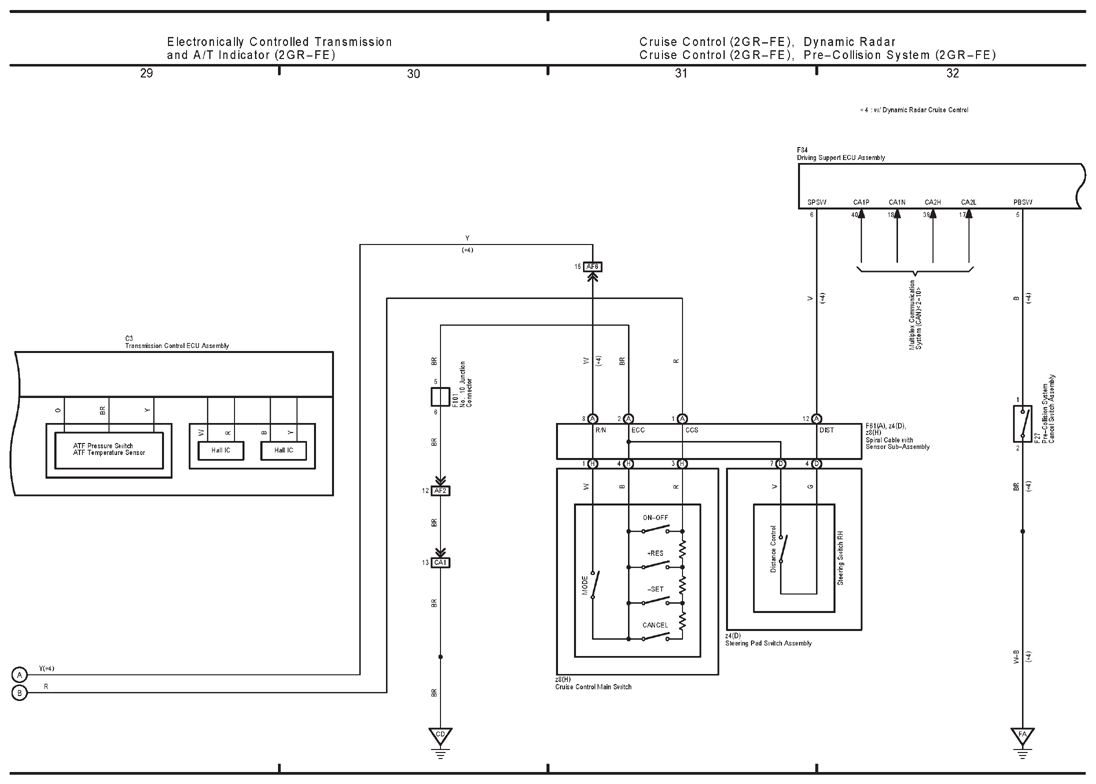

G12240454

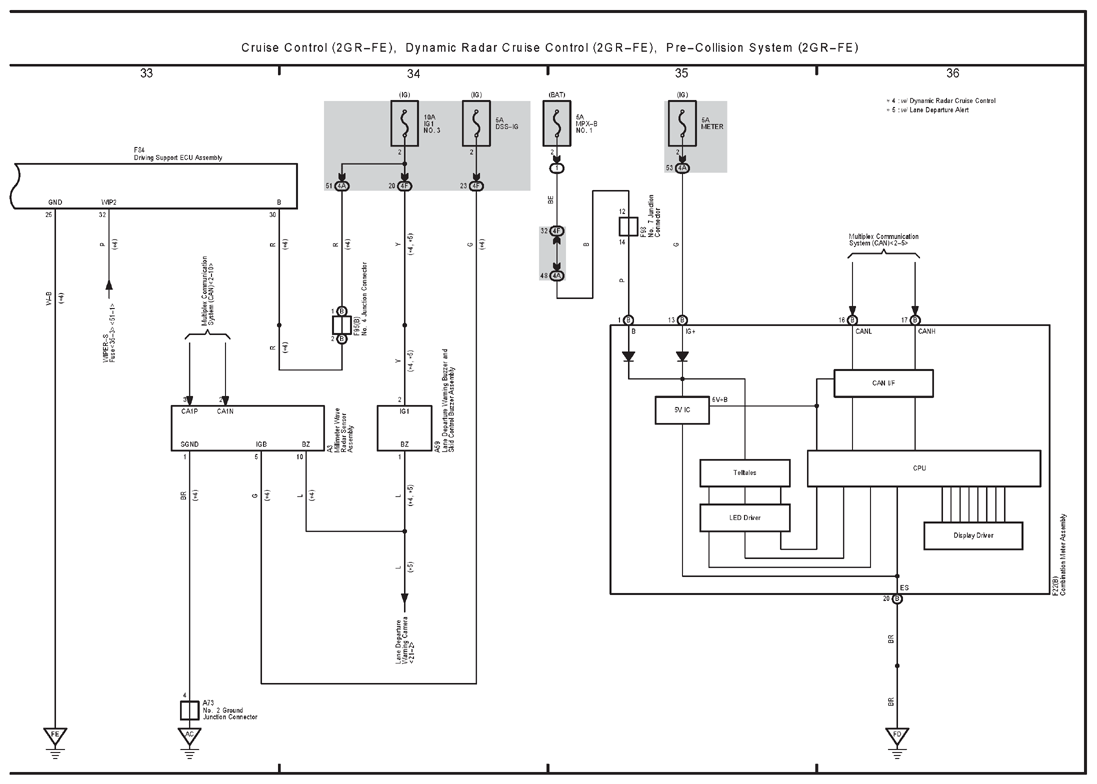

G12240455
