Home >> Toyota >> 2015 >> Highlander XLE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Engine Control (1AR-FE), Cruise Control (1AR-FE), Electronically Controlled Transmission And A/T Indicator (1AR-FE)

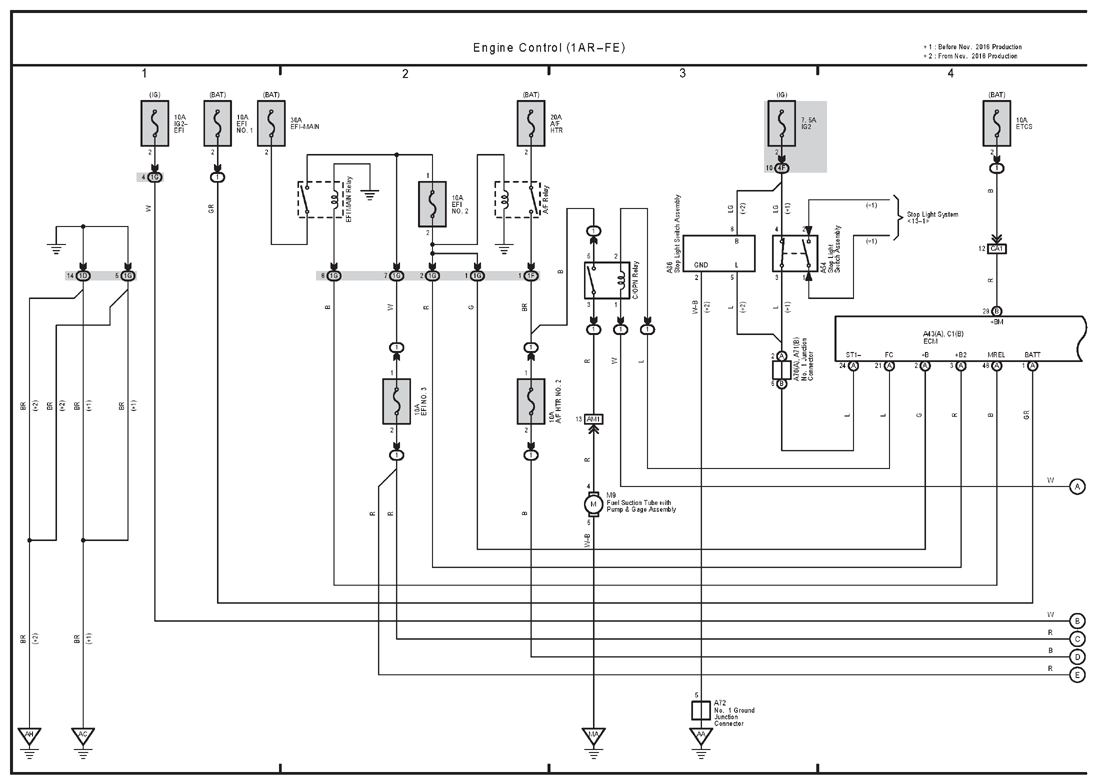

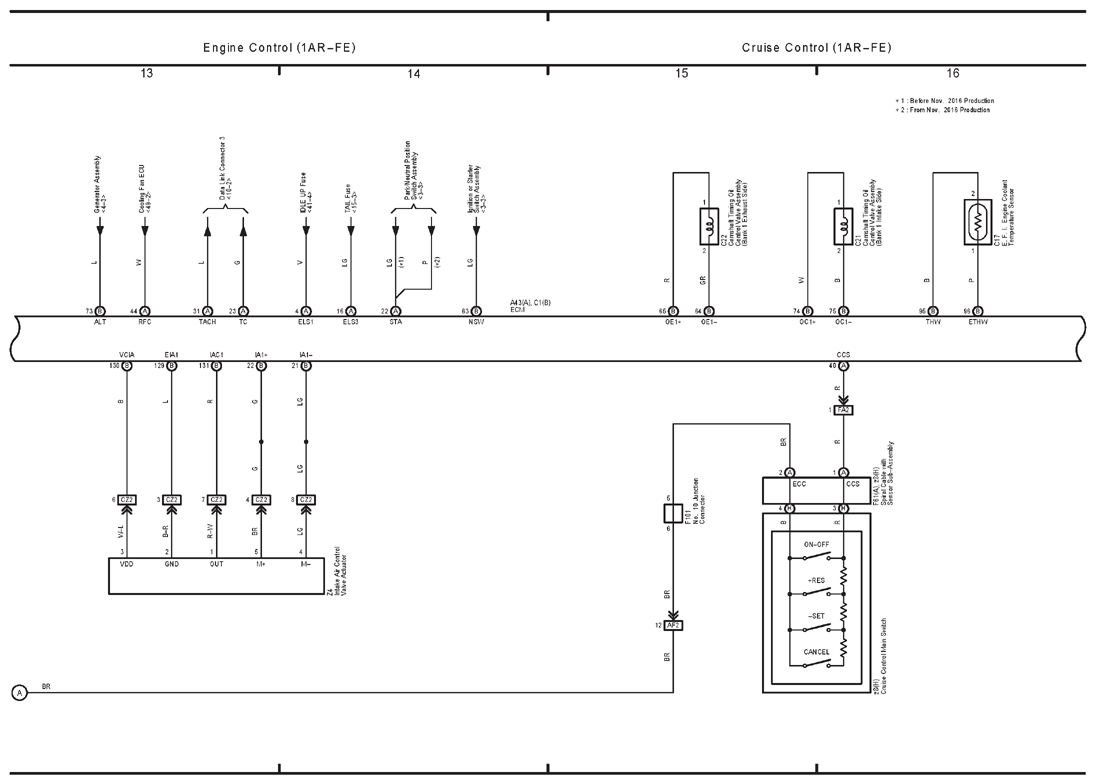

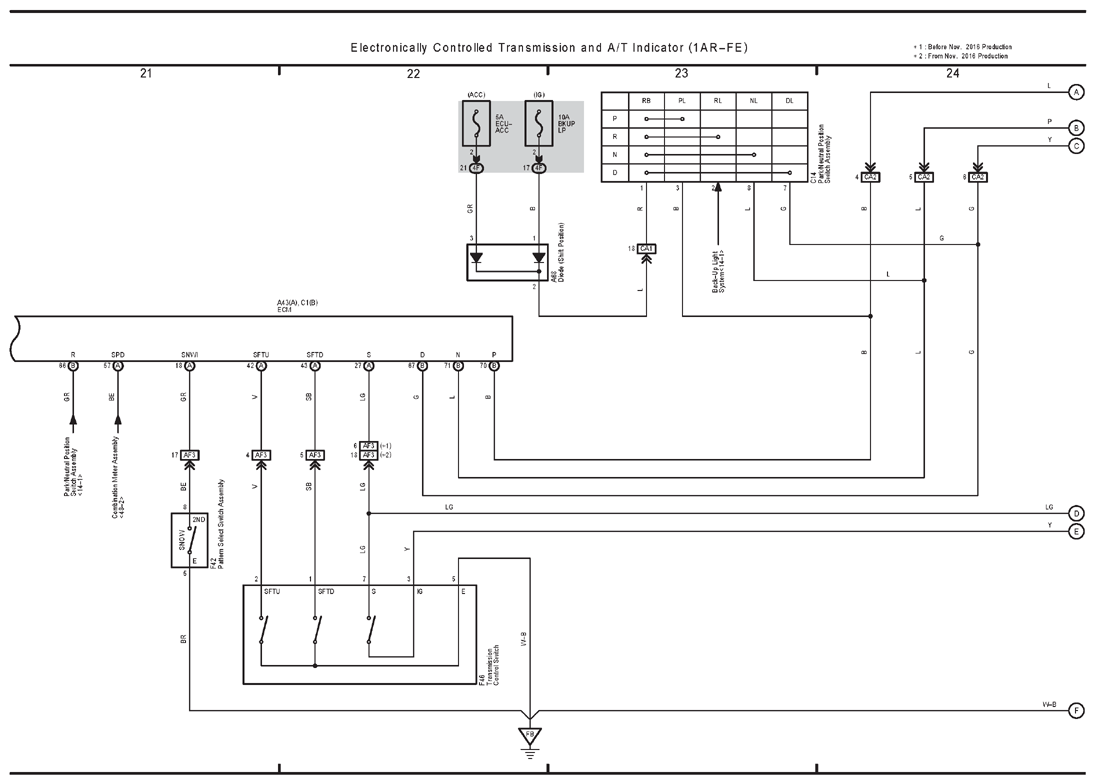

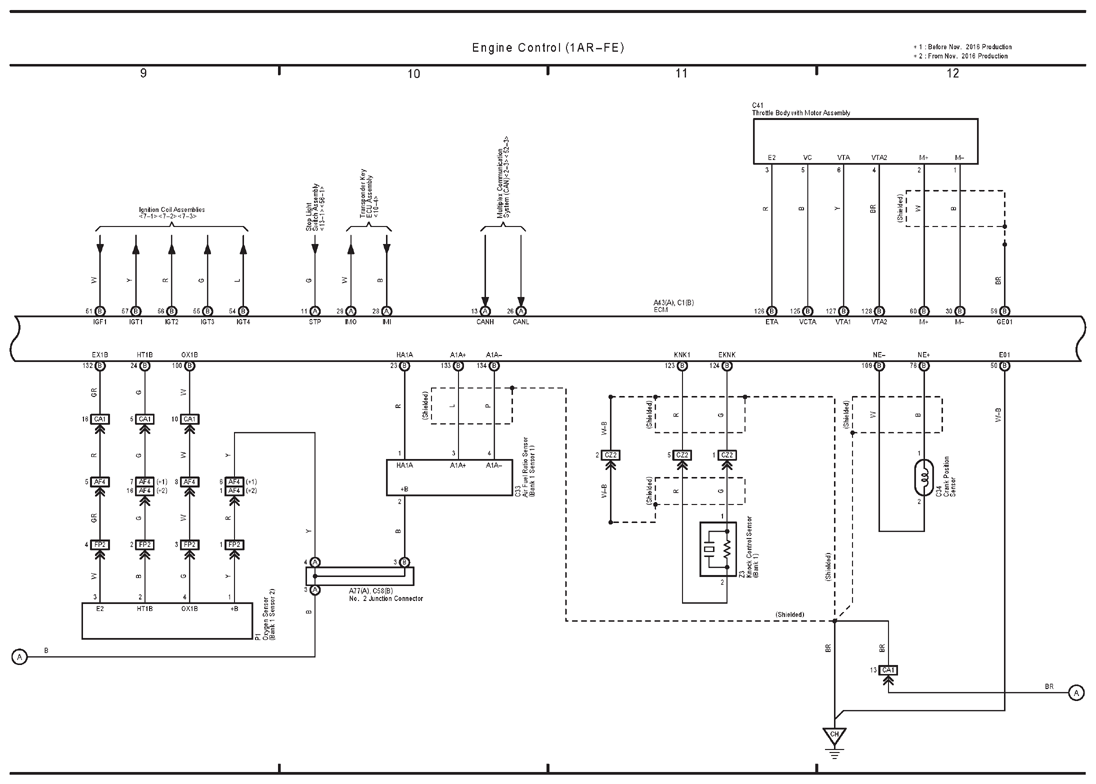

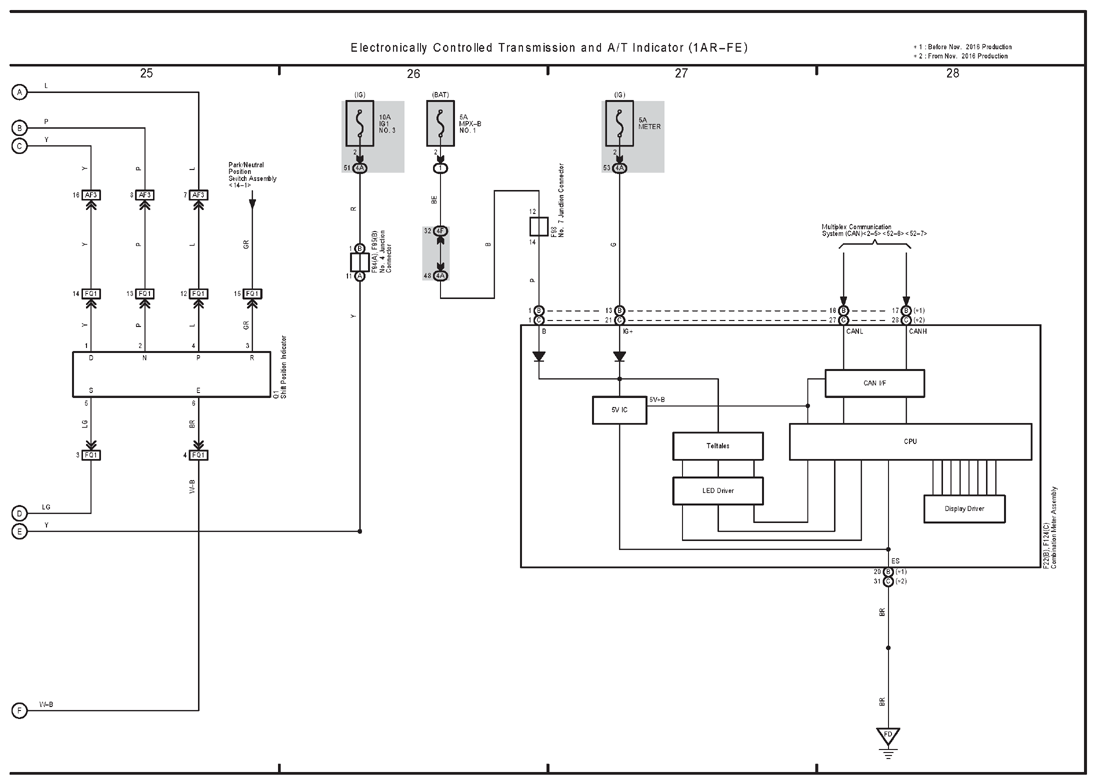

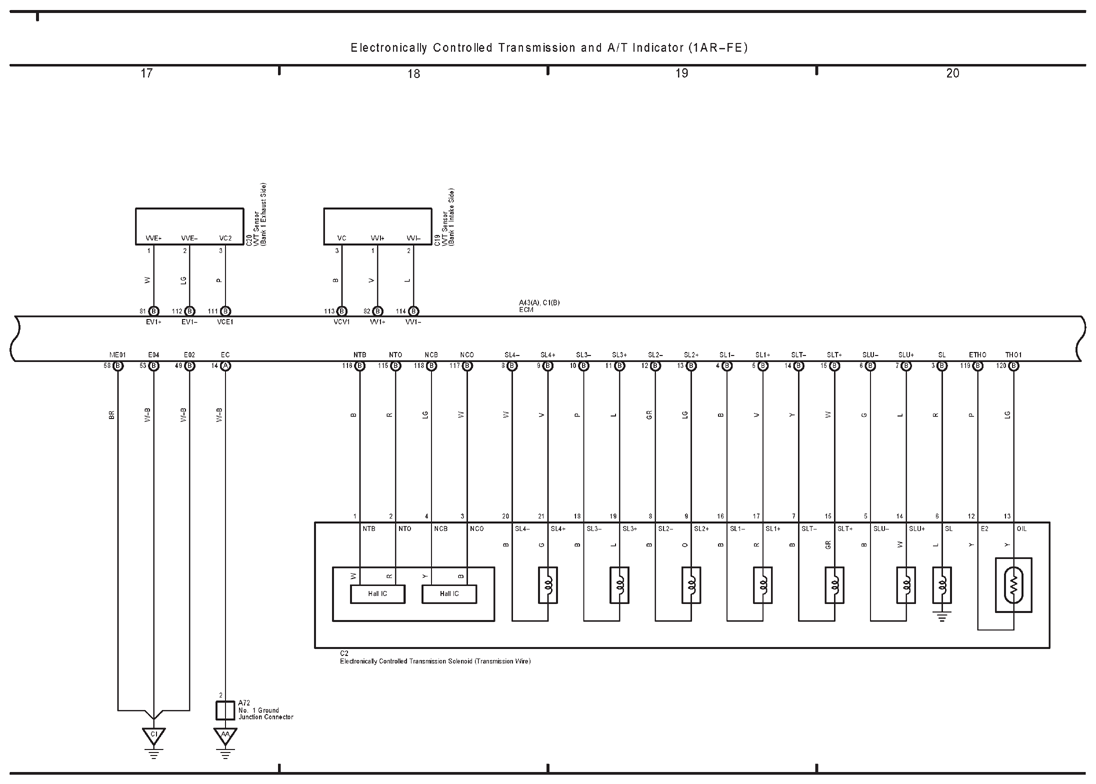

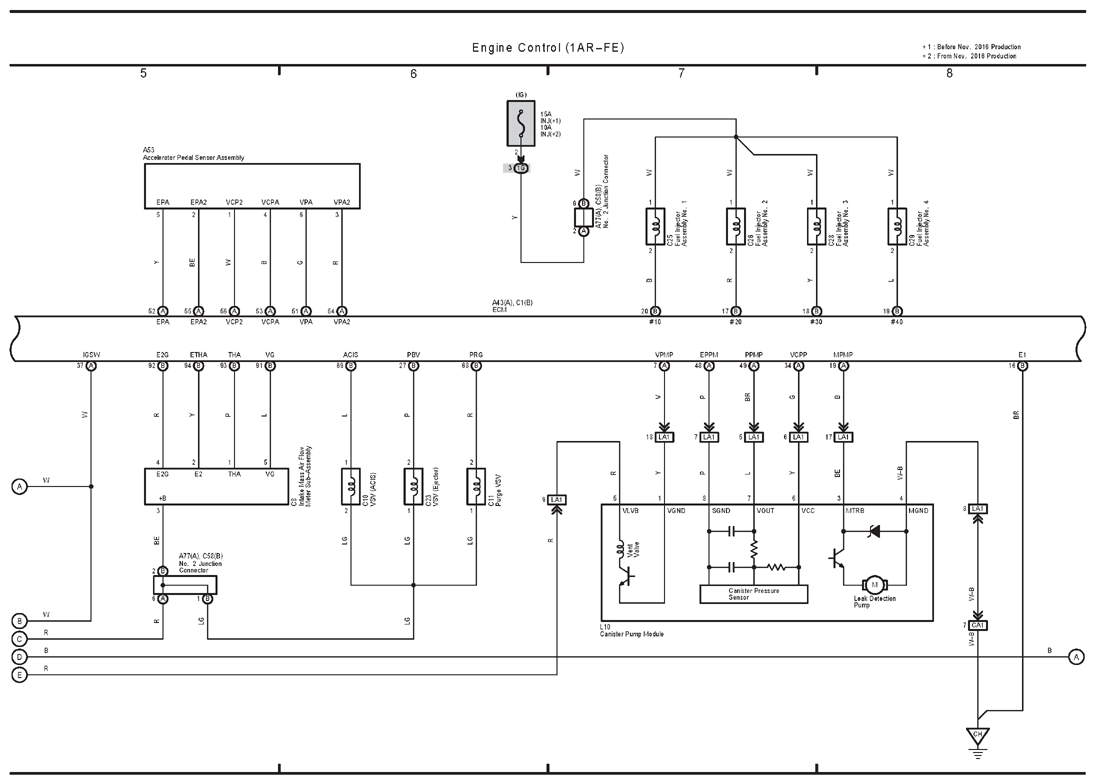

Engine Control (1AR-FE), Cruise Control (1AR-FE), Electronically Controlled Transmission And A/T Indicator (1AR-FE)

G12240456
G12240457
G12240458
G12240459
G12240460
G12240461
G12240462
