Home >> Toyota >> 2015 >> Highlander XLE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> EPS

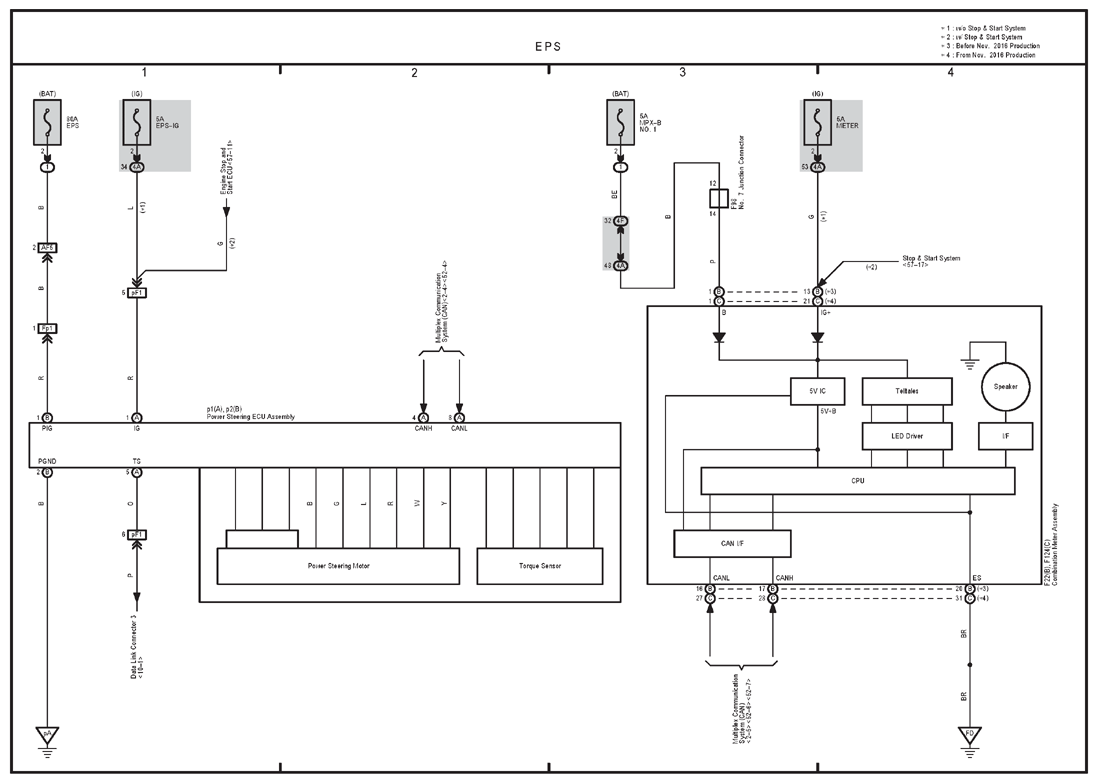

Overall Electrical Wiring Diagram: EPS

G12240342
