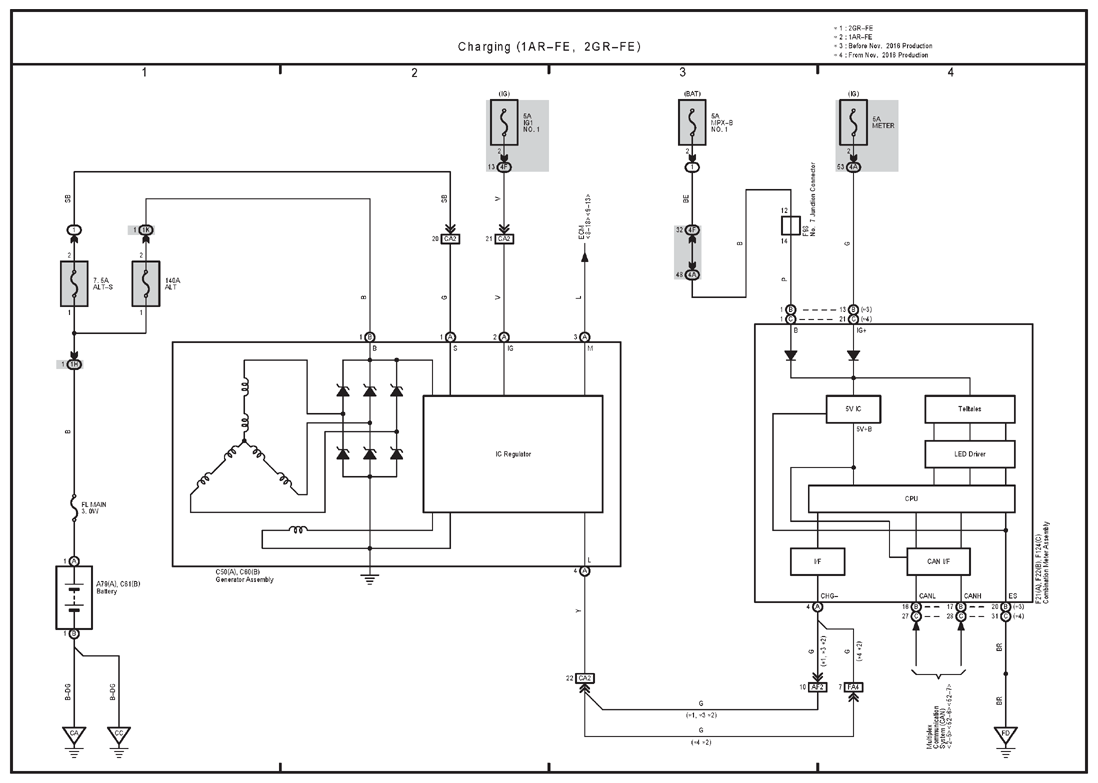

Home >> Toyota >> 2015 >> Highlander XLE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Charging (1AR-FE, 2GR-FE)
