OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>

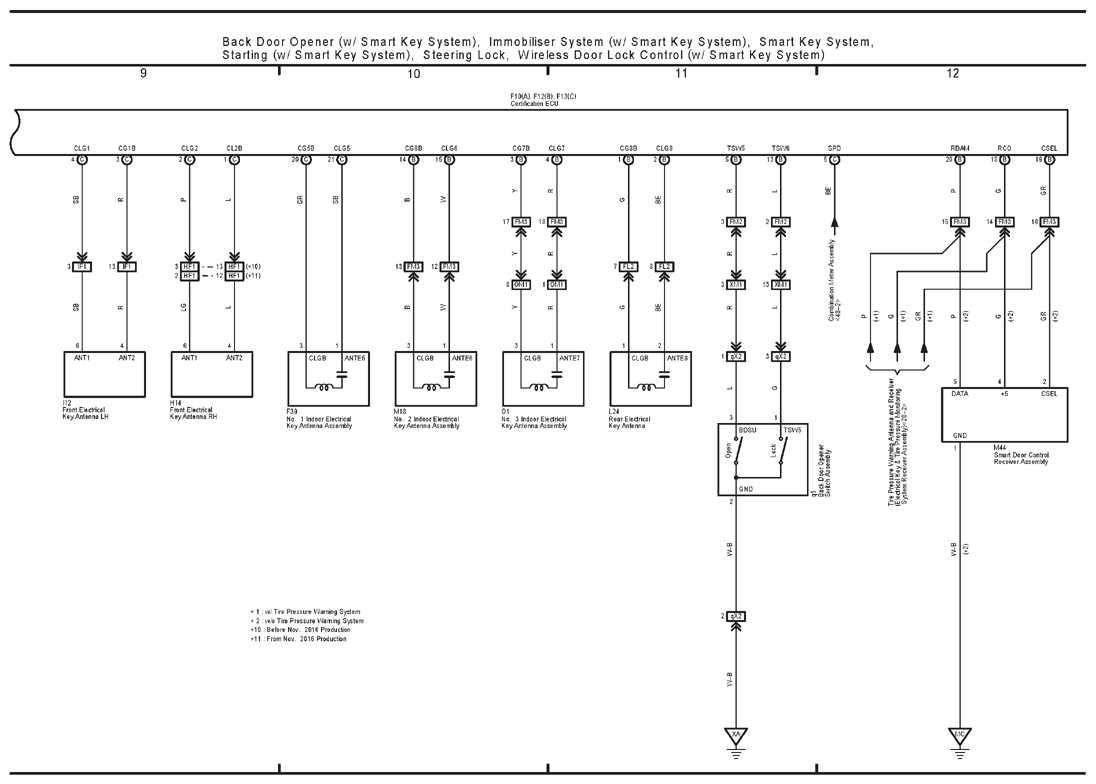

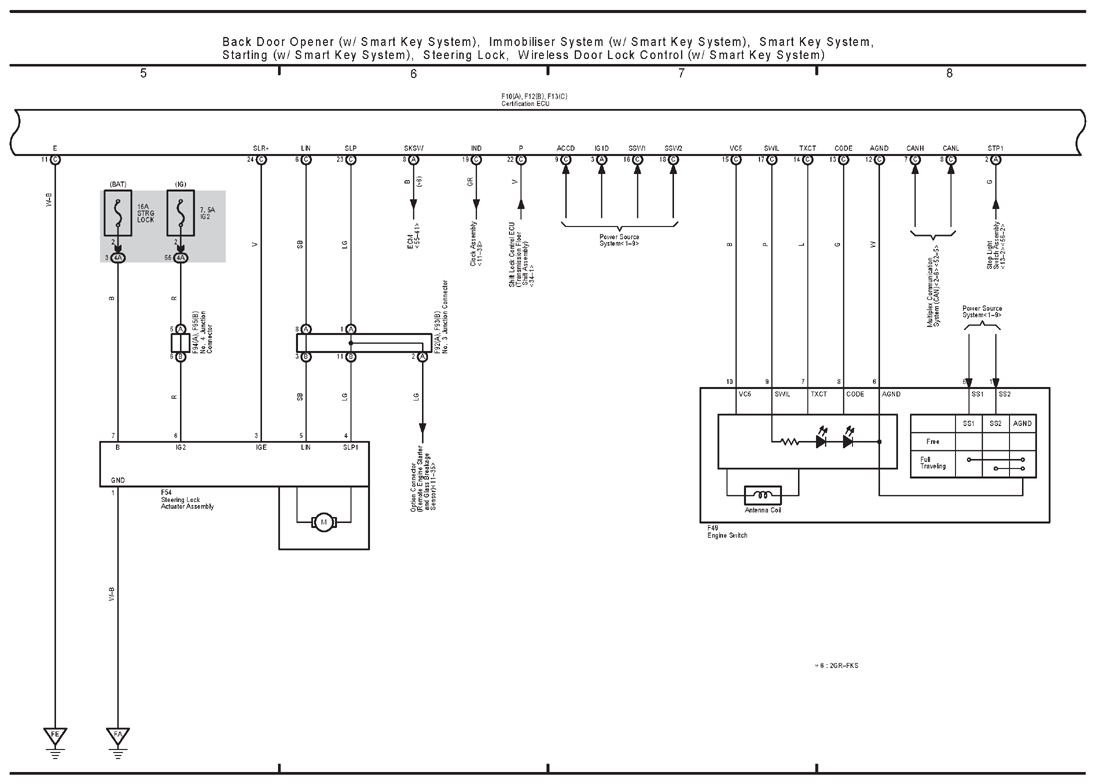

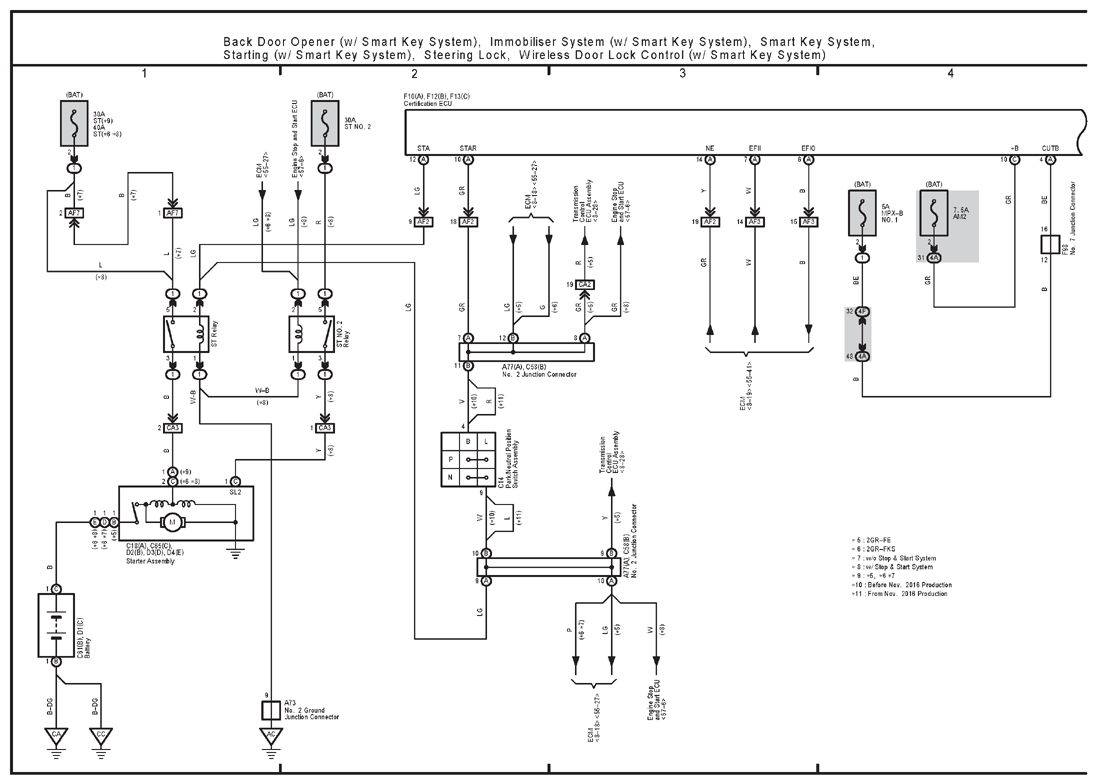

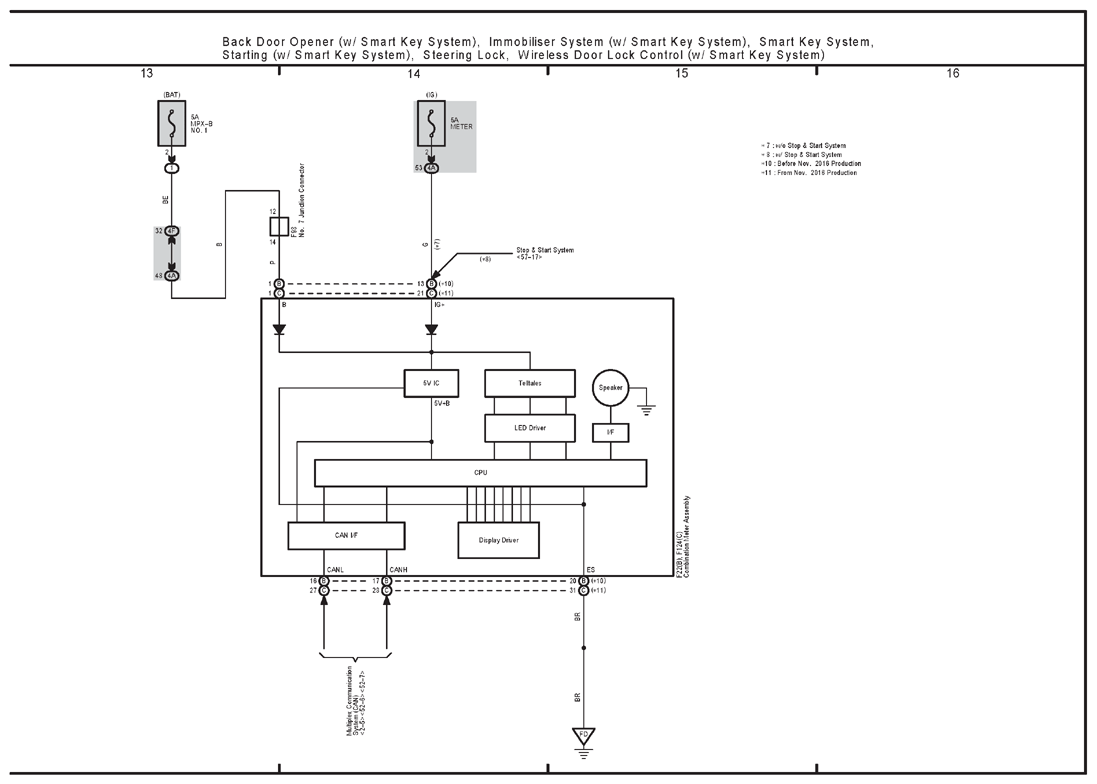

Overall Electrical Wiring Diagram
>>
Back Door Opener (W/Smart Key System), Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System)
Back Door Opener (W/Smart Key System), Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System)
