Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System)

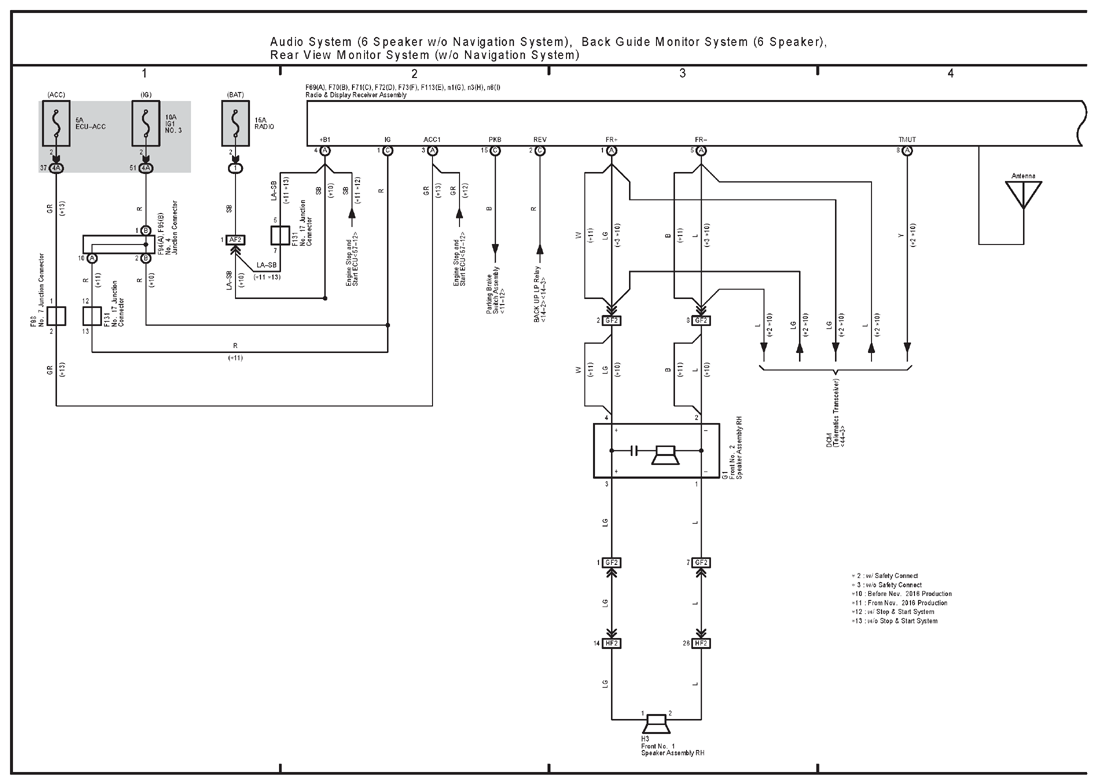

G12240396

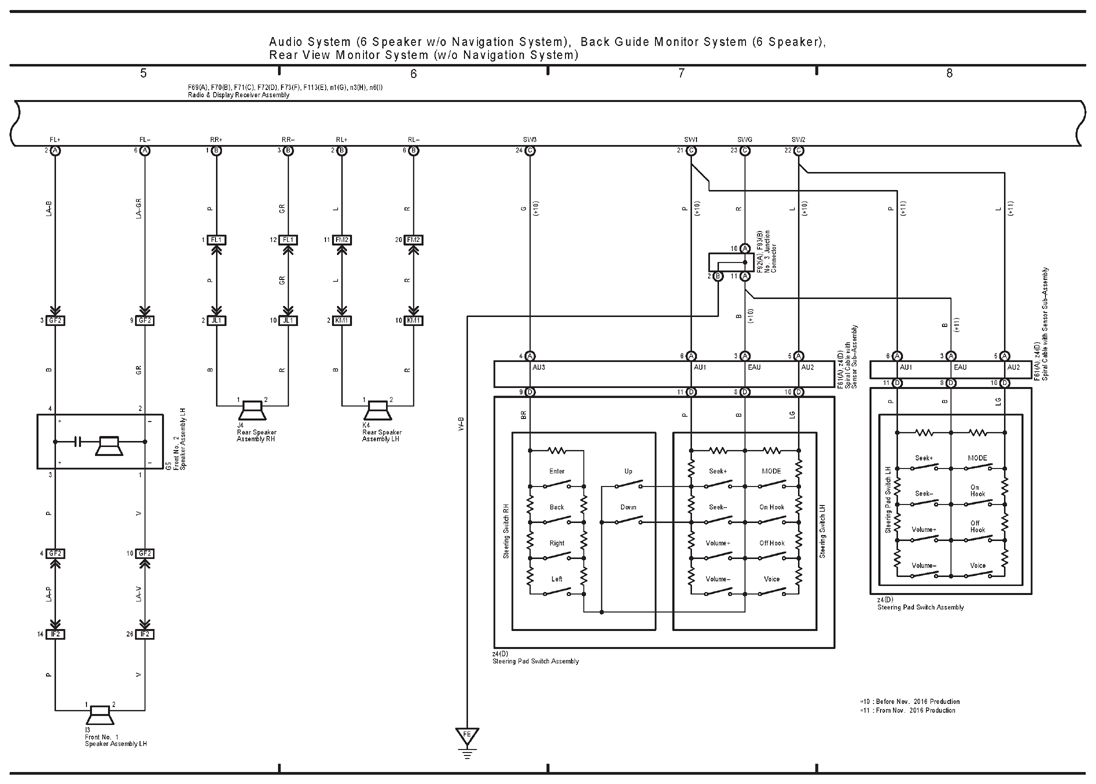

G12240397

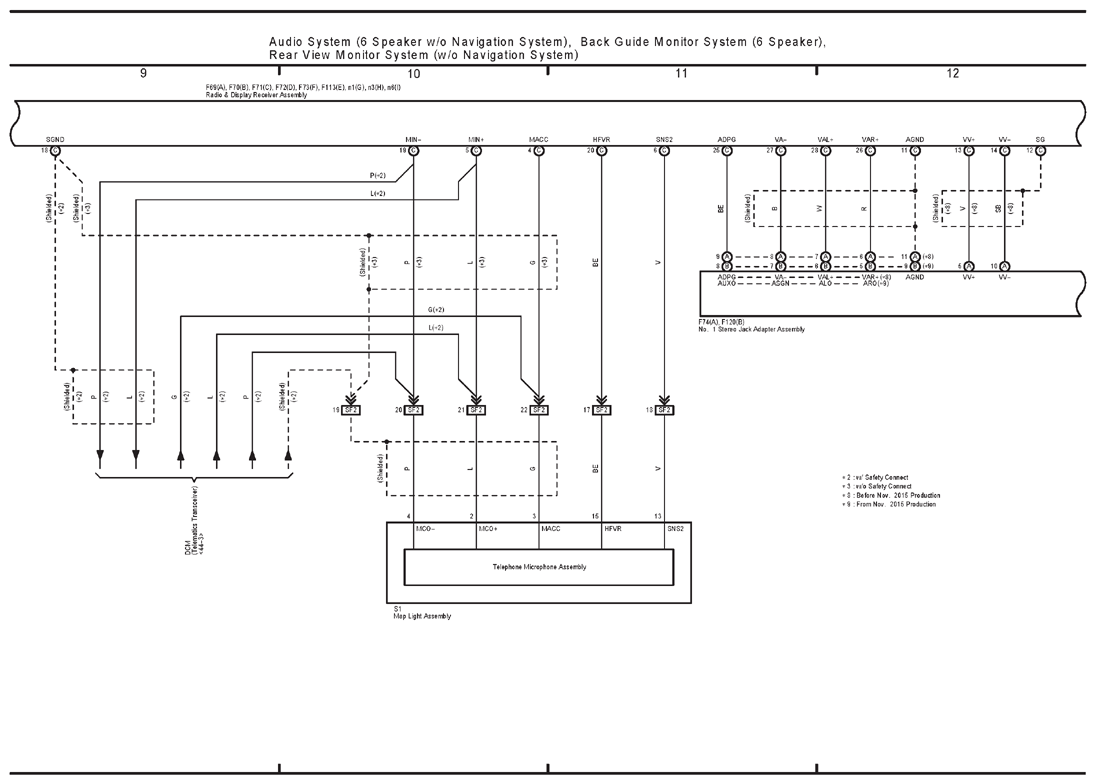

G12240398

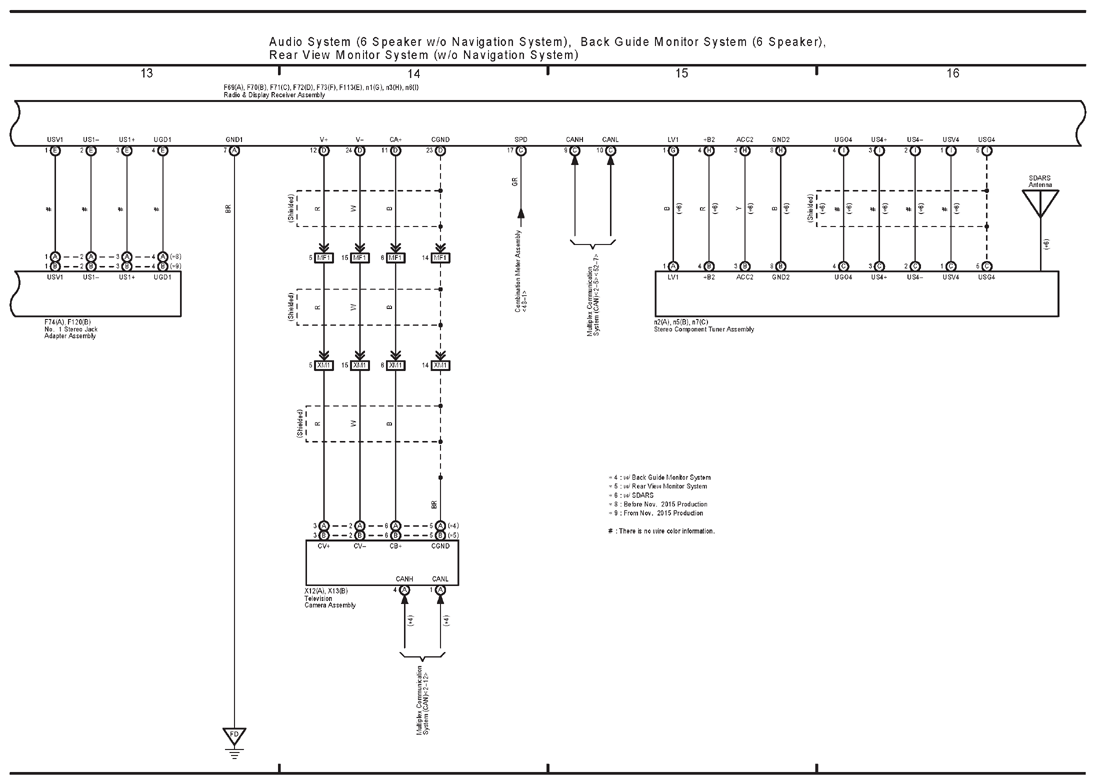

G12240399

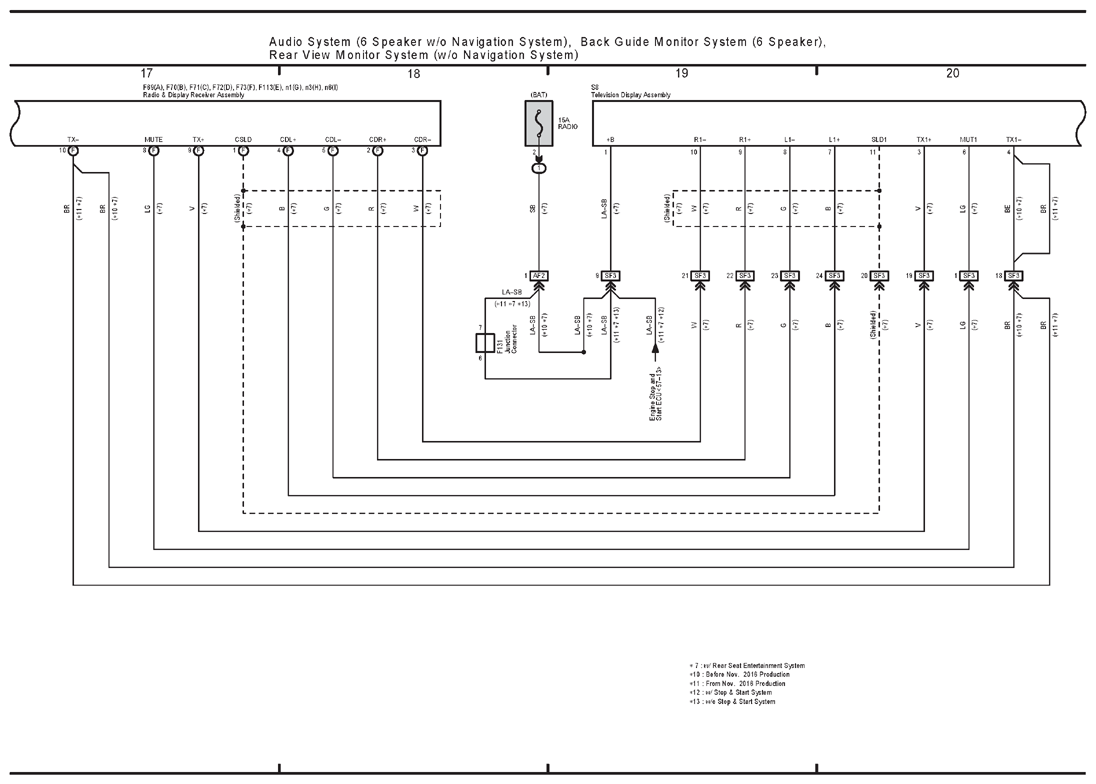

G12240400

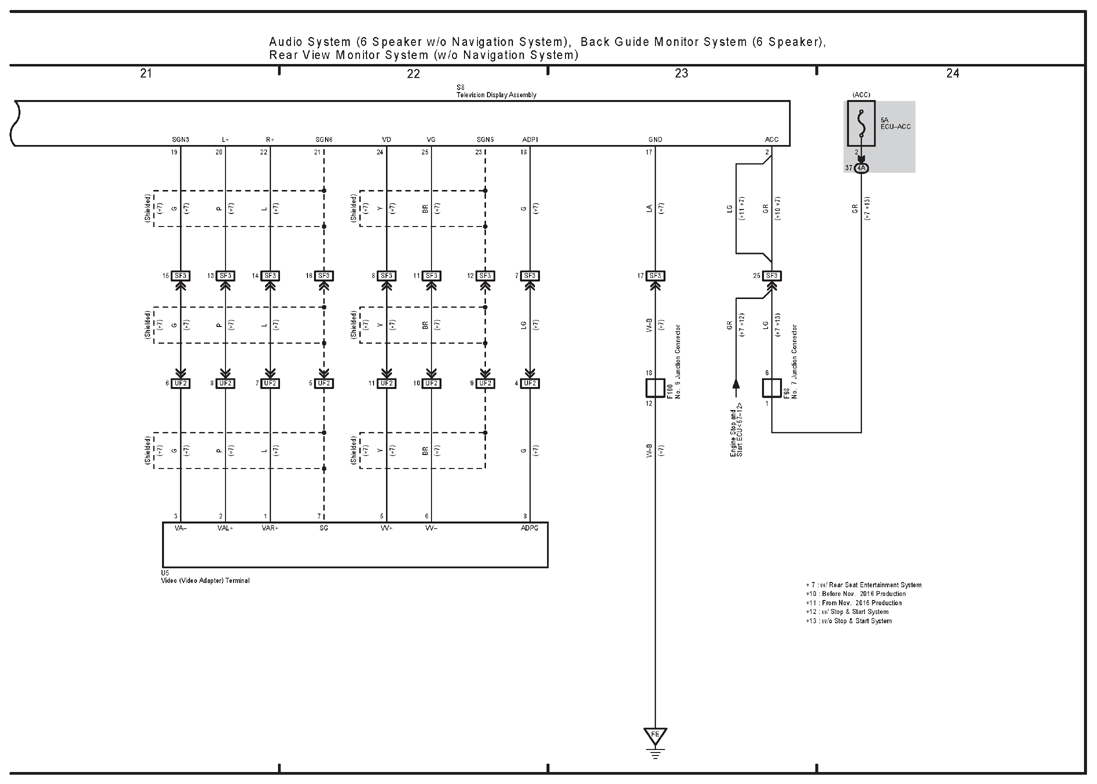

G12240401
