Audio System (6 Speaker W/Navigation System), Navigation System (6 Speaker), Rear View Monitor System (W/Navigation System)

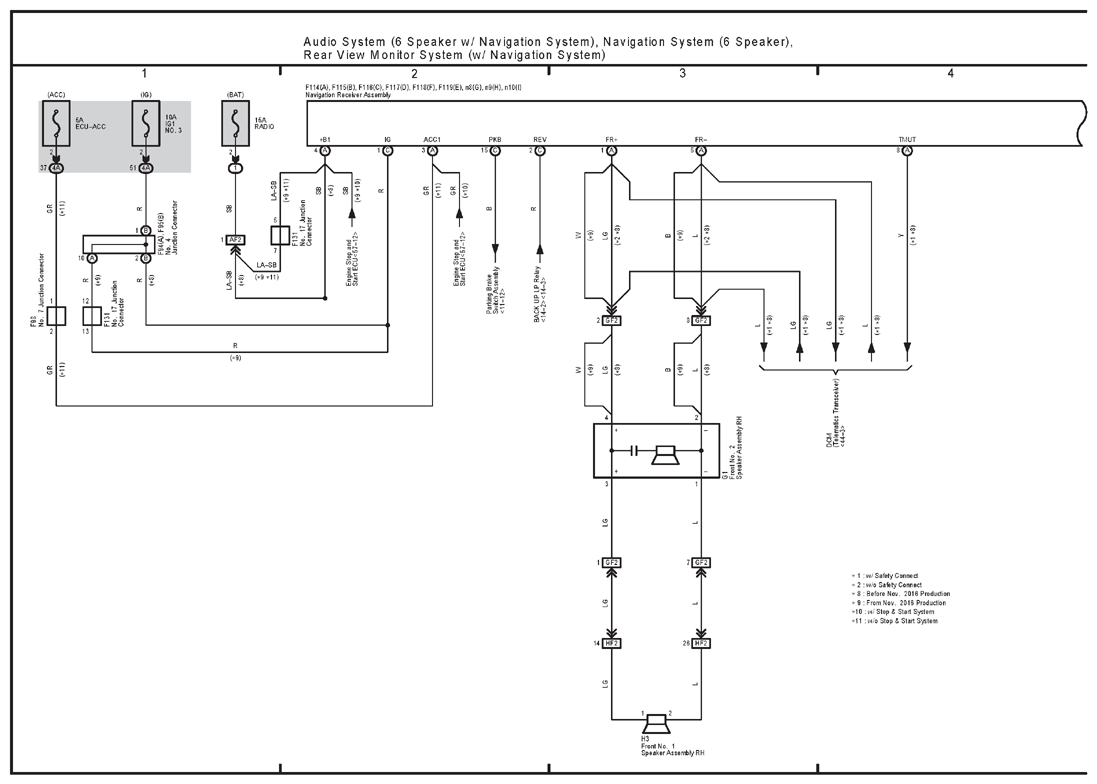

G12240390

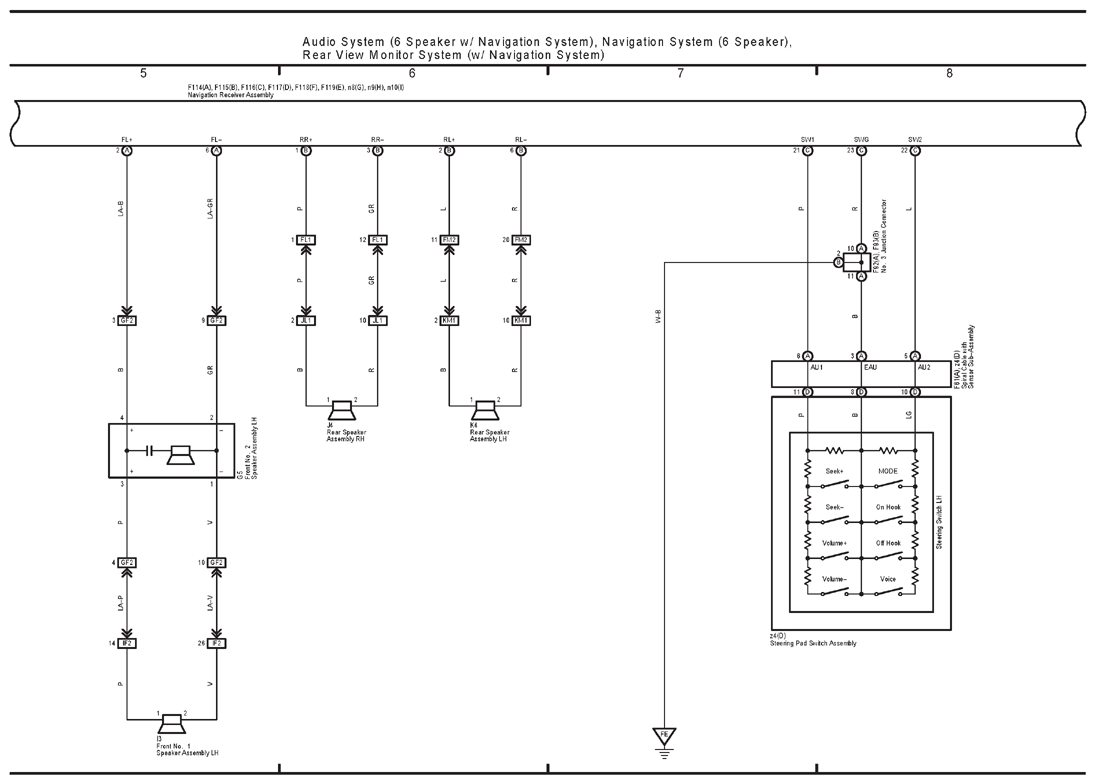

G12240391

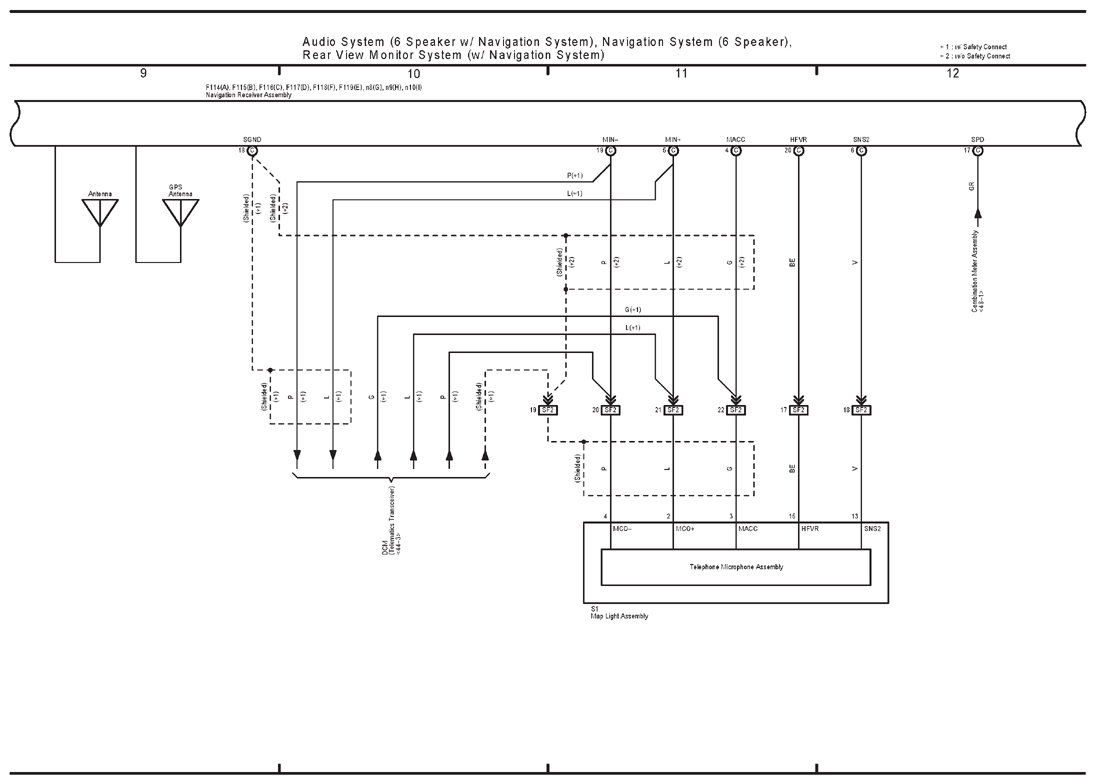

G12240392

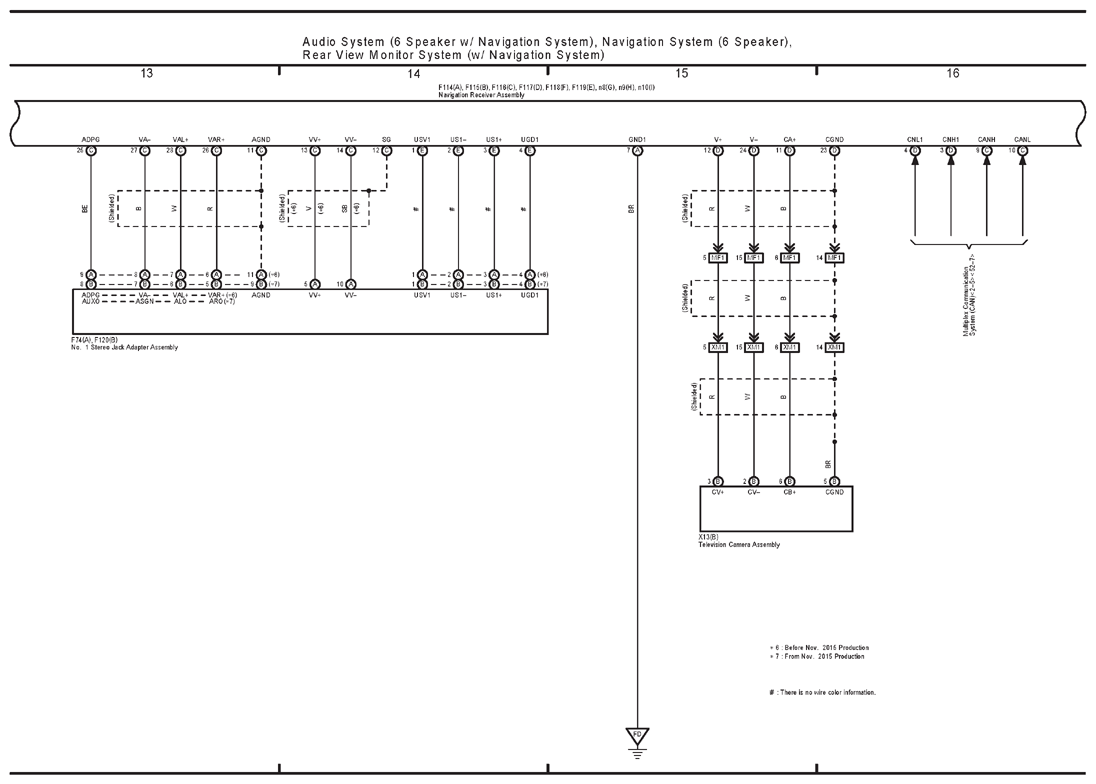

G12240393

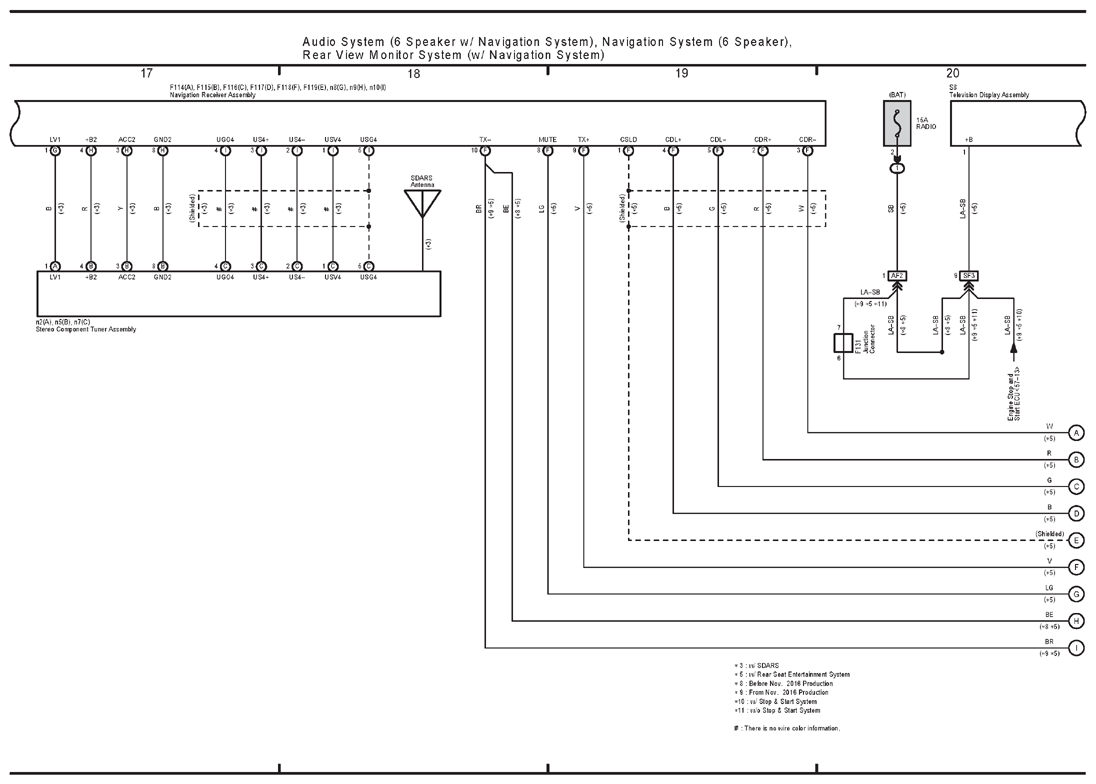

G12240394

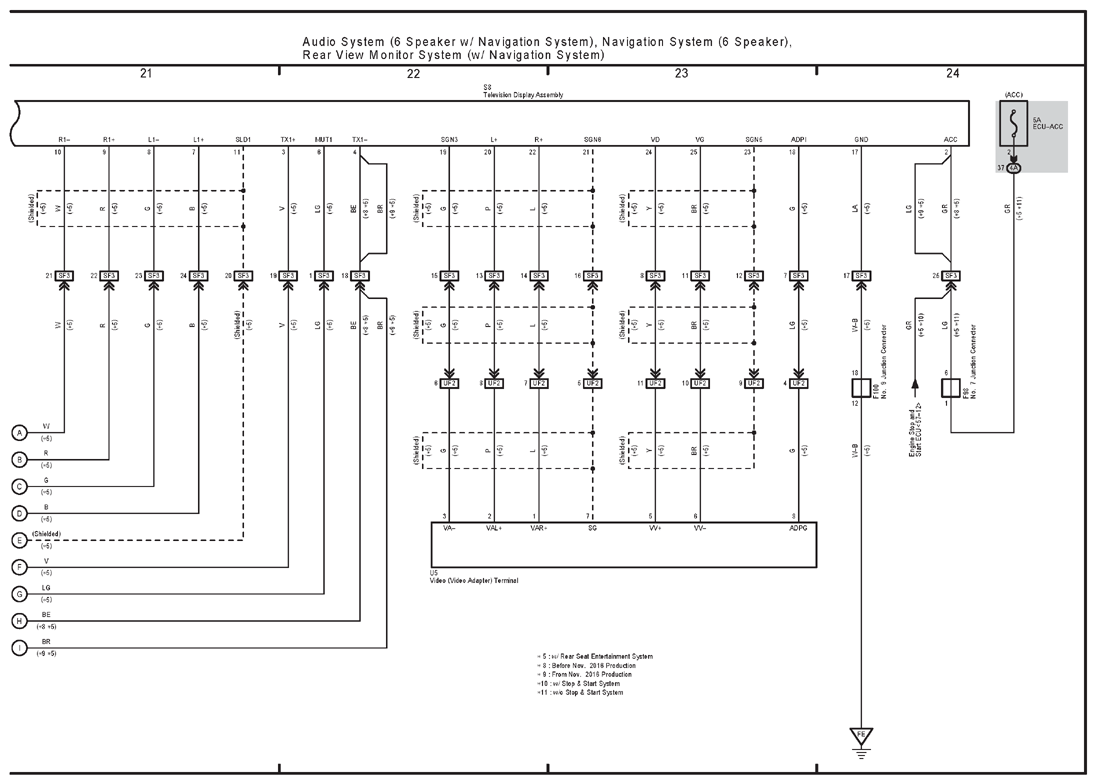

G12240395
