Audio System (12 Speaker), Back Guide Monitor System (12 Speaker), Navigation System (12 Speaker)

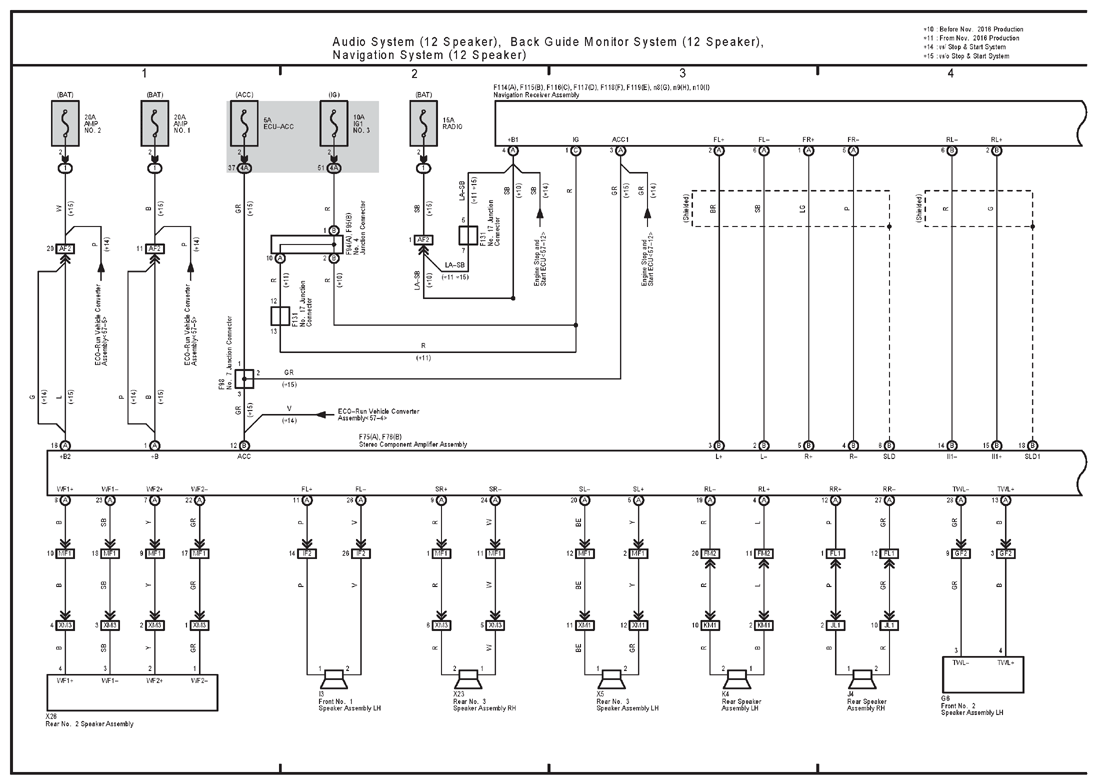

G12240384

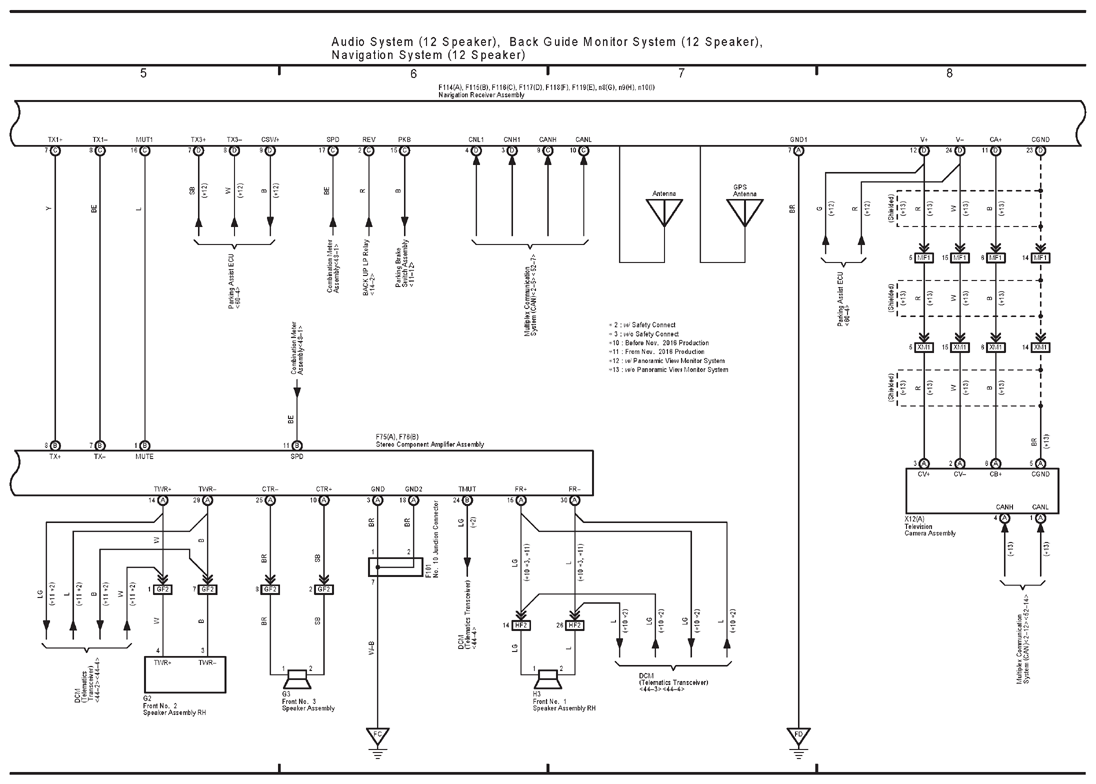

G12240385

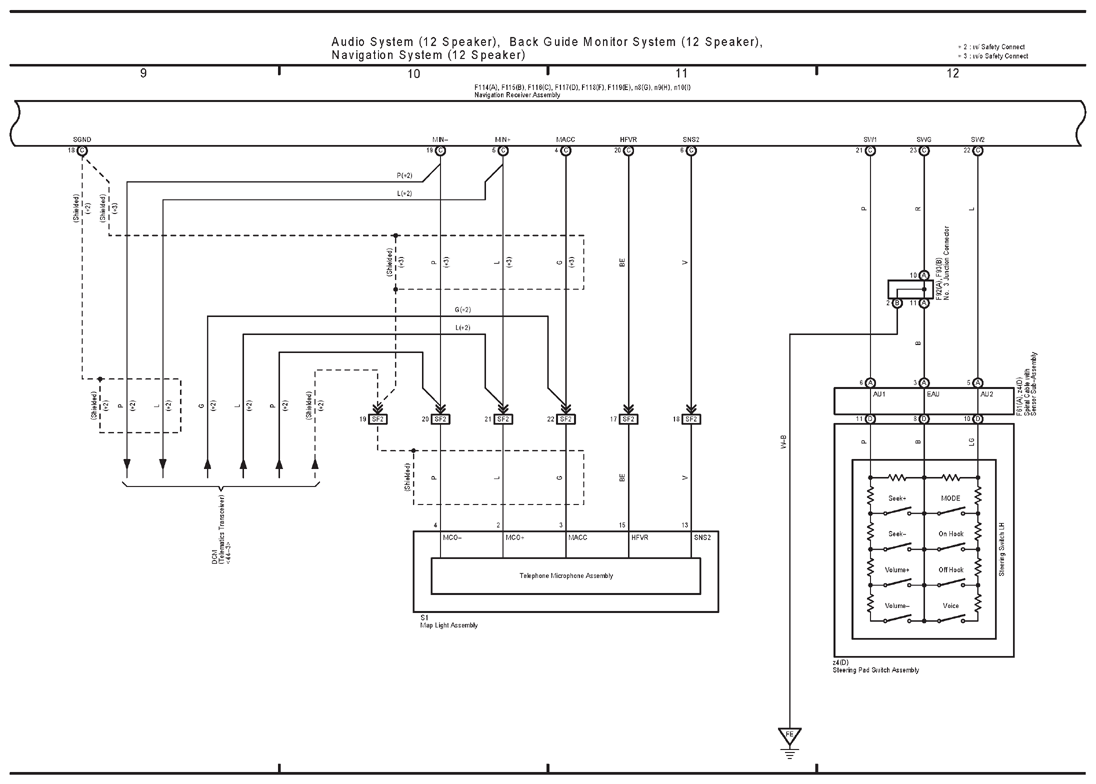

G12240386

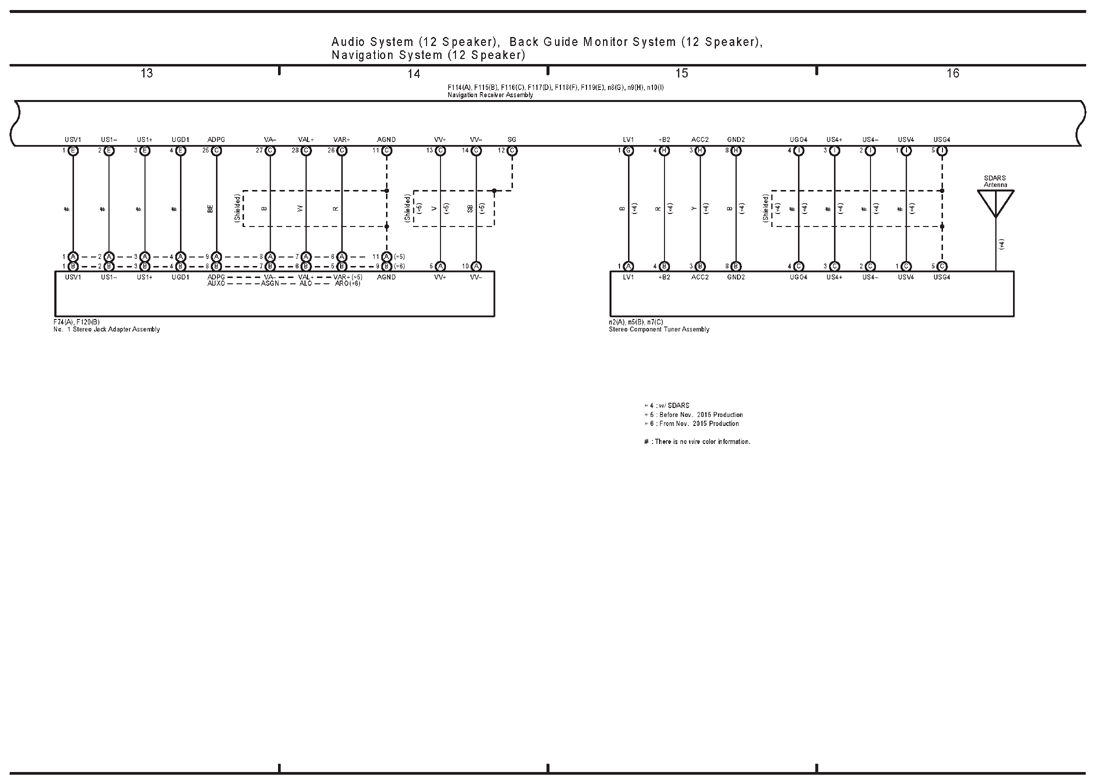

G12240387

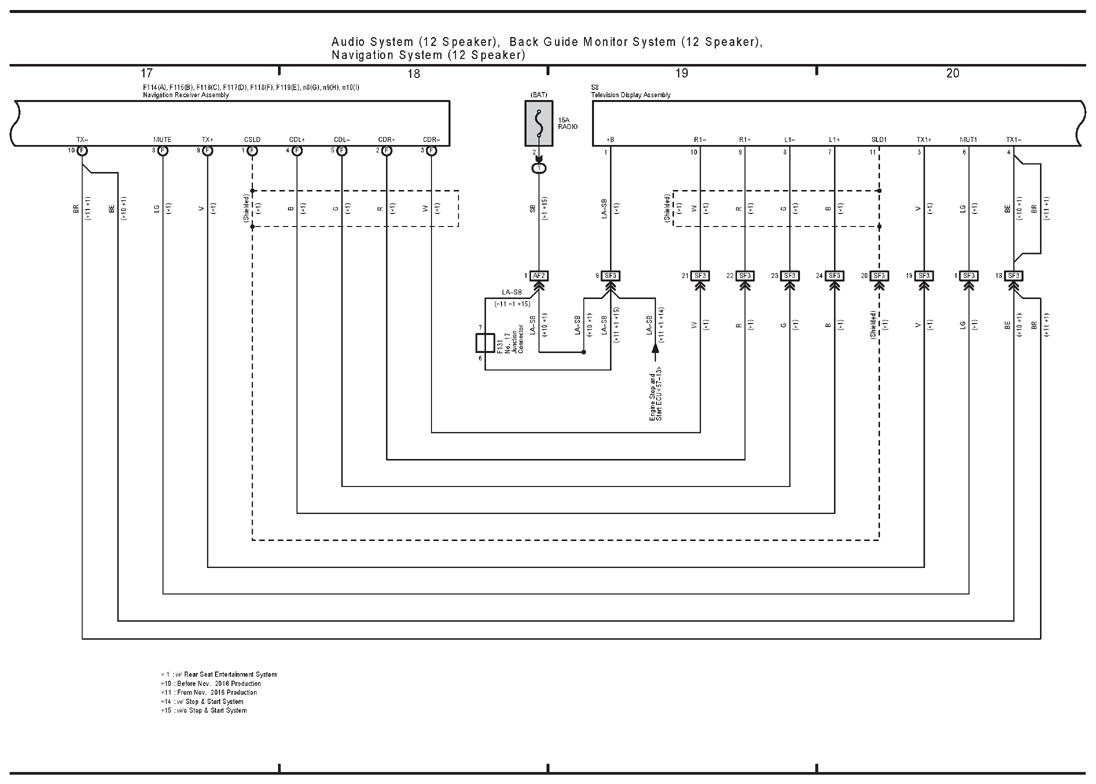

G12240388

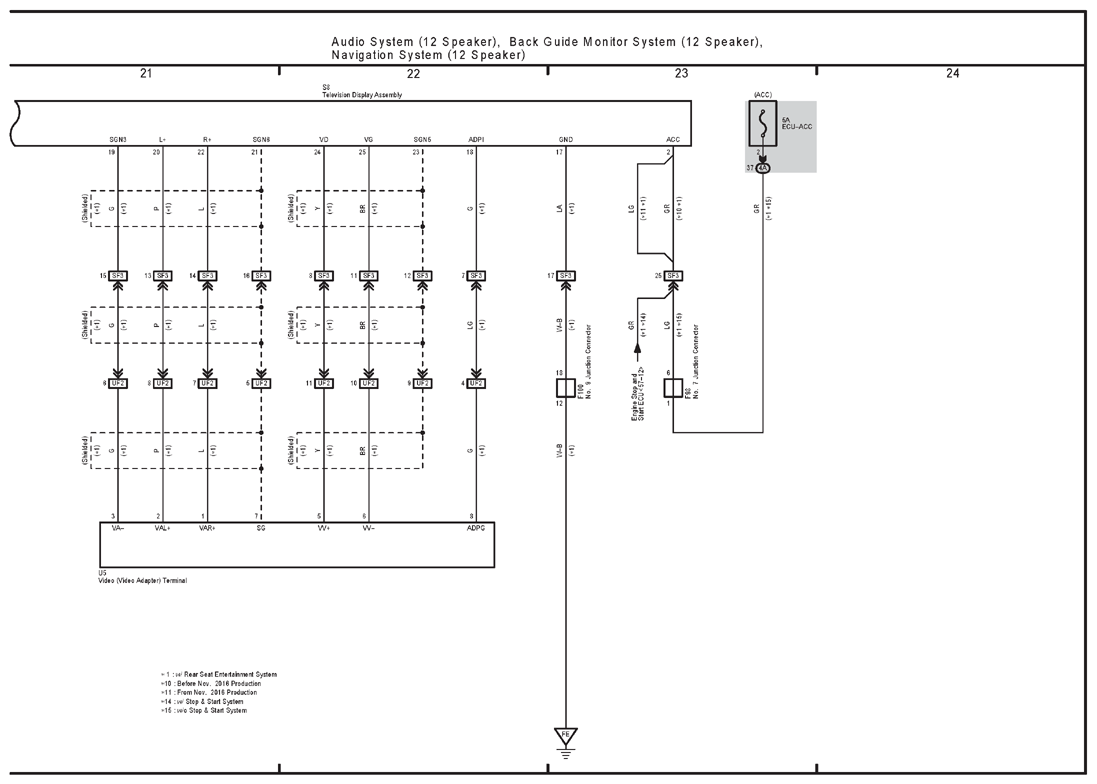

G12240389
