Reassembly [11/2016 - ]: Procedure

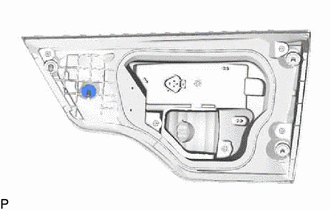

  1. INSTALL REAR LIGHT PROTECTOR
    1. Install a new rear light protector.
      GTY721110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

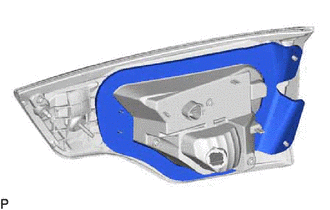

  2. INSTALL REAR LIGHT GASKET
    1. Install a new rear light gasket.
      GTY721111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BACK-UP LIGHT SOCKET
  4. INSTALL BACK-UP LIGHT BULB
    1. Install the back-up light bulb to the back-up light socket.
    2. Turn the back-up light socket with the back-up light bulb as shown in the illustration to install them as a unit.
      GTY738534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
