Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE HEADLIGHT ASSEMBLY

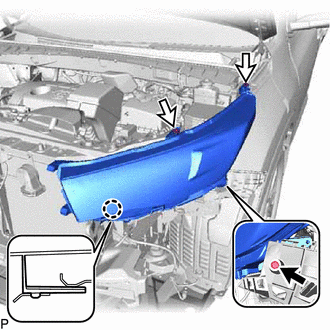

    1. Remove the bolt and 2 screws.
      GTY447300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Disengage the claw to separate the headlight assembly.

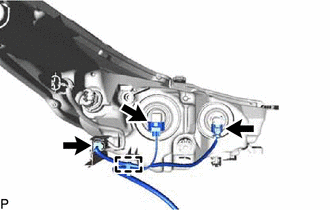

    3. Disengage the clamp.
      GTY440303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the headlight assembly.
